Product Description

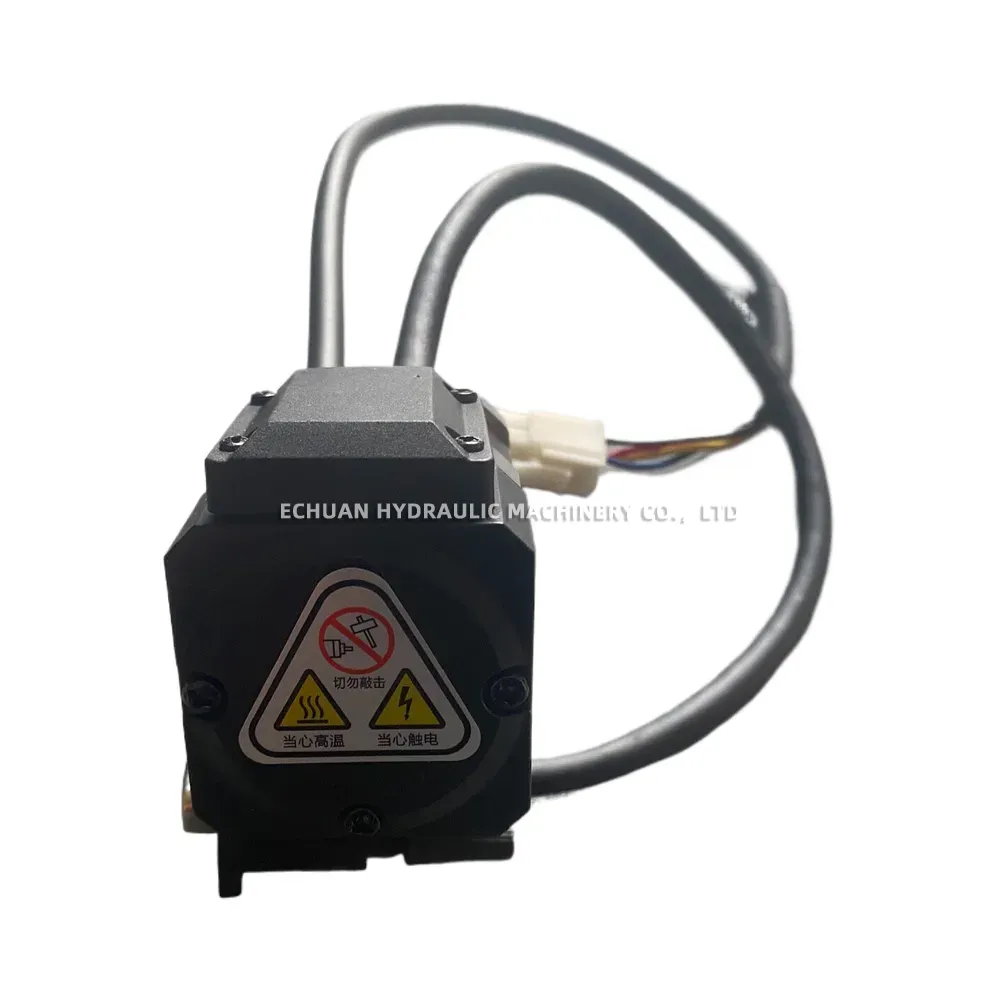

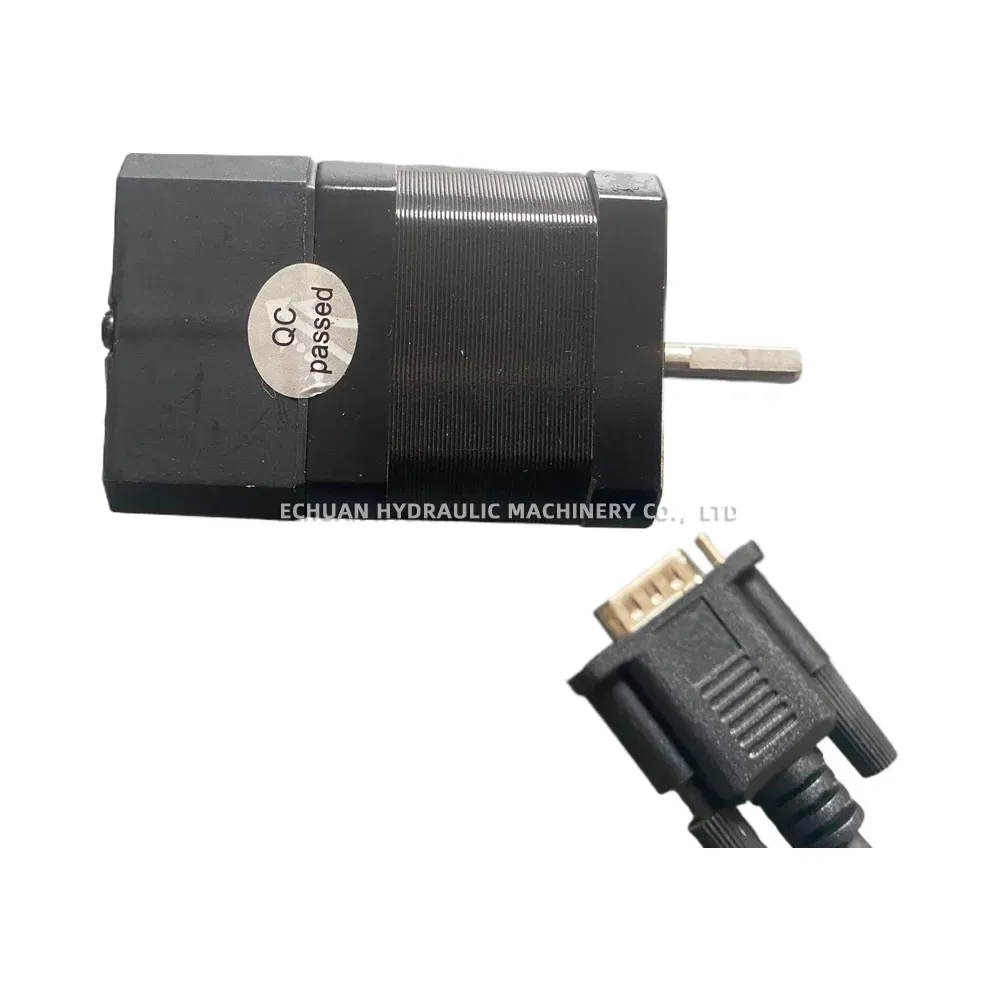

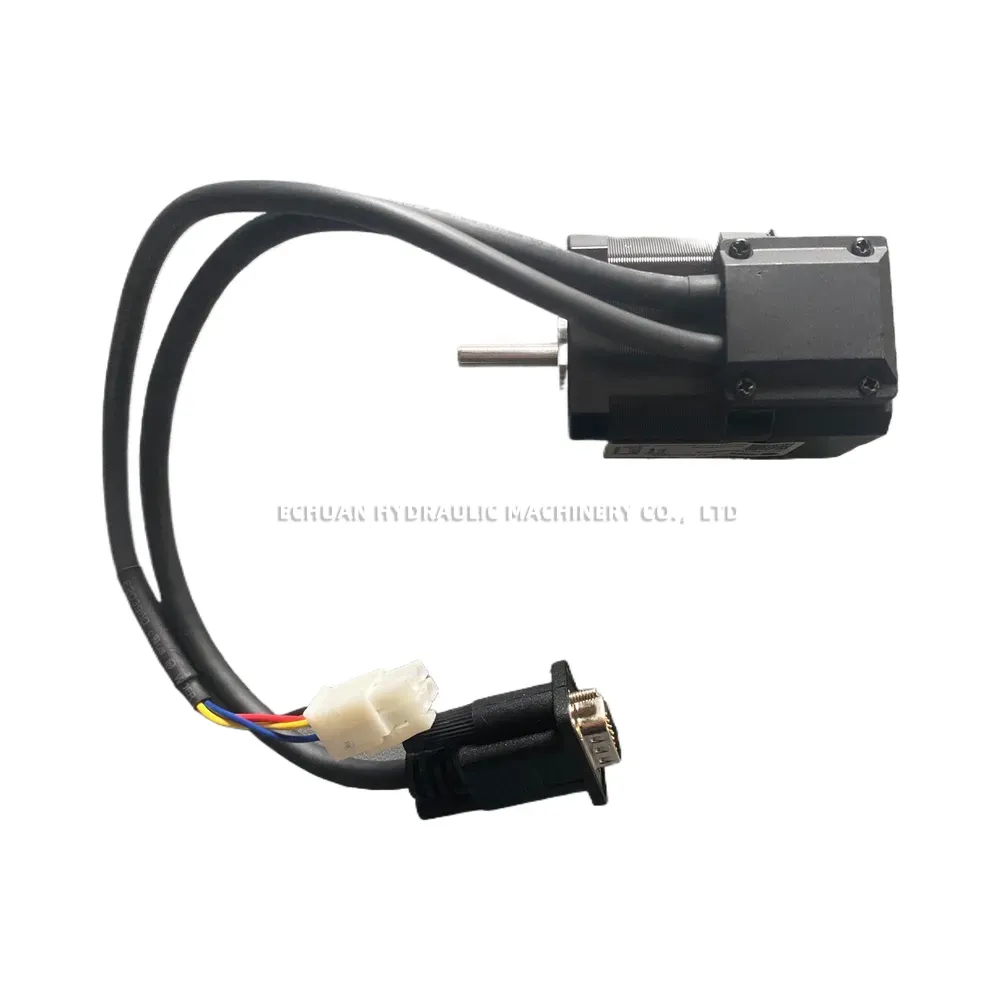

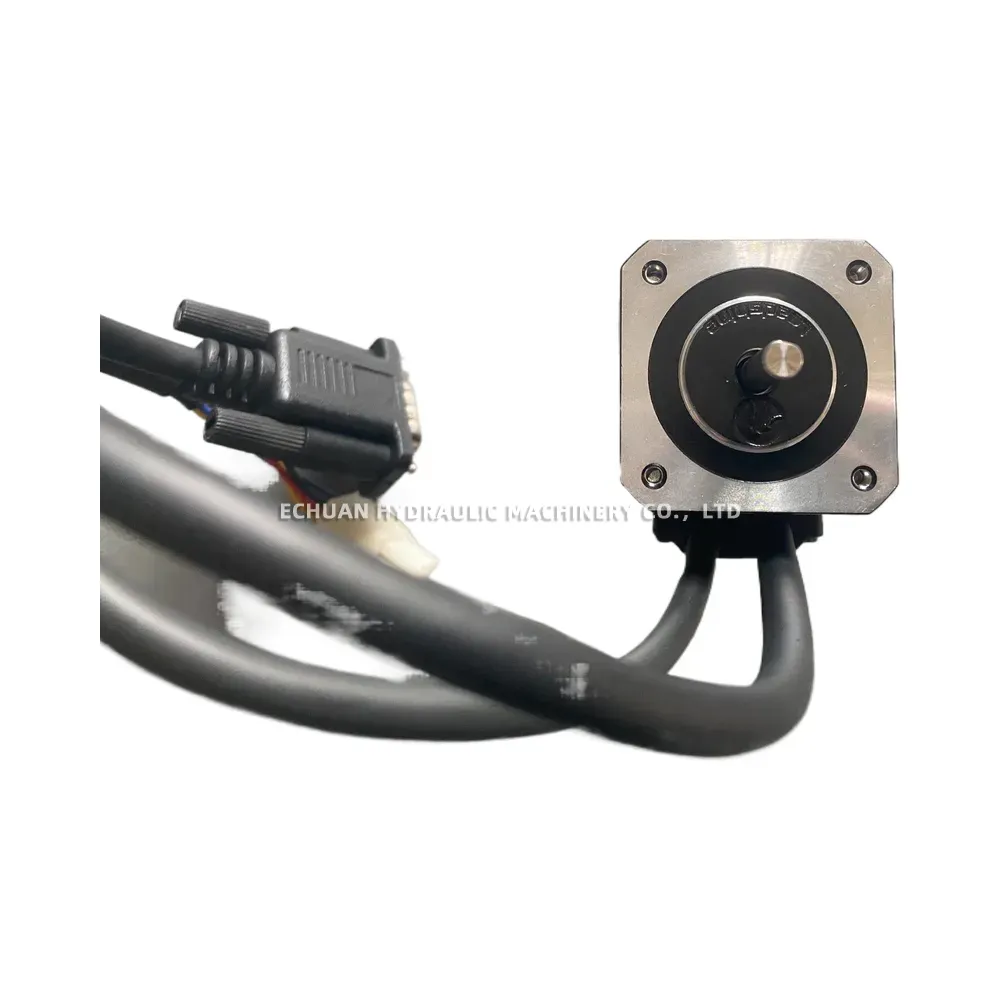

Leadshine 42CME04-C Easy Servo Motor

The Leadshine 42CME04-C is a highly reliable closed-loop stepper motor, also known as an Easy Servo Motor, designed to provide precise position control without the risk of losing steps. Built on standard NEMA 17 (42mm) dimensions, this advanced motor integrates a high-resolution incremental encoder to provide real-time position feedback to the drive, effectively combining the best advantages of both stepper and servo systems. It ensures smooth motion, low vibration, rapid response, and significantly reduced motor heating. The 42CME04-C is an ideal plug-and-play solution for upgrading open-loop stepper systems in CNC machinery, 3D printers, robotics, and other industrial automation equipment demanding high accuracy and efficiency.

Technical Specifications:

  • Brand: Leadshine

  • Model: 42CME04-C

  • Motor Type: Closed-Loop Stepper Motor (Easy Servo) / NEMA 17 Frame Size

  • Holding Torque: 0.4 N.m

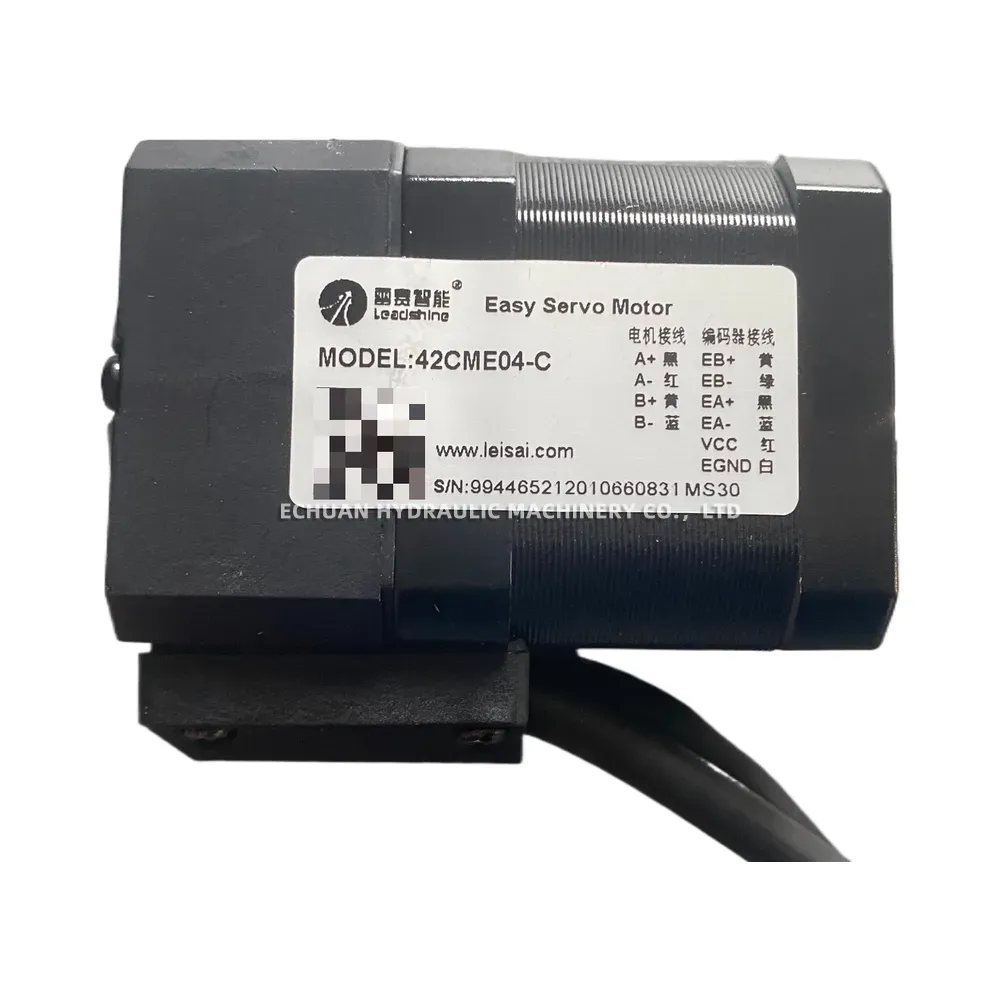

  • Motor Wiring: A+ (Black), A- (Red), B+ (Yellow), B- (Blue)

  • Encoder Wiring: EB+ (Yellow), EB- (Green), EA+ (Black), EA- (Blue), VCC (Red), EGND (White)

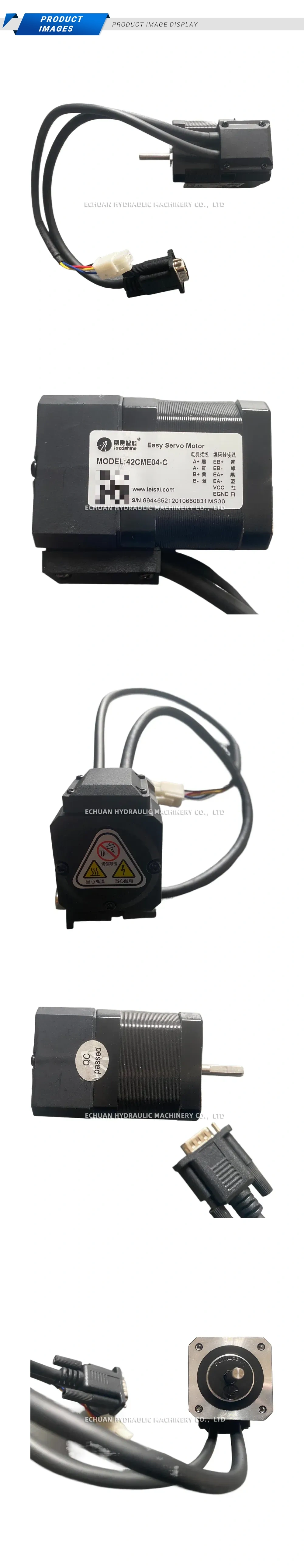

Leadshine 42CME04-C Easy Servo Motor Description

Leadshine 42CME04-C Easy Servo Motor

Upgrade your automation equipment with the original Leadshine 42CME04-C Easy Servo Motor. This high-performance NEMA 17 closed-loop stepper motor features an integrated encoder to prevent step loss, ensuring high precision, low heat, and smooth operation. Perfect for CNC machines, 3D printers, and advanced robotics.

BrandLeadshine
Model42CME04-C
Part No.980196651332
CategoryServo motors
Linkhttps://www.echuan-hydraulic.com/product/leadshine-42cme04-c-easy-servo-motor
