Product Description

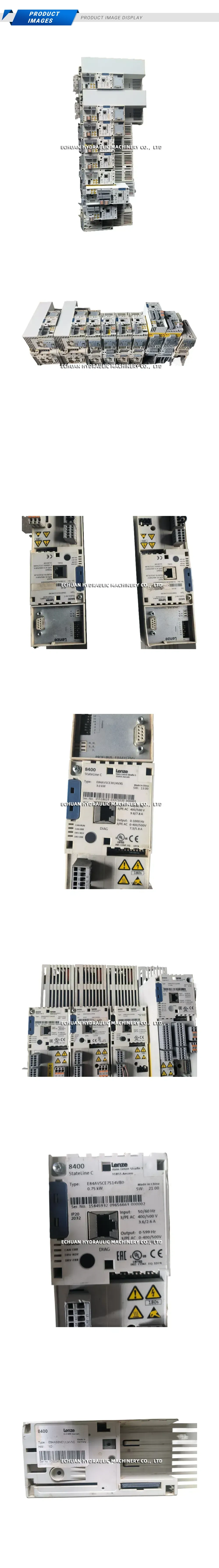

Lenze E84AVSCE7514VB0
The Lenze E84AVSCE7514VB0 is a robust and versatile inverter drive from the 8400 StateLine C series, engineered for precise control of three-phase AC motors. Designed for cabinet installation, this 7.5 kW drive operates on a 400/500V mains supply. It features an integrated brake chopper for managing regenerative energy in dynamic applications and a built-in EMC filter to ensure compliance with electromagnetic compatibility standards. With its V/f control mode, the E84AVSCE7514VB0 provides reliable and straightforward speed regulation, making it an excellent choice for a wide range of industrial applications including pumps, fans, conveyors, and general machinery.
Technical Specifications:
- Series: 8400 StateLine C
- Rated Power: 7.5 kW
- Mains Voltage: 3/PE AC 400/500 V (-15%/+10%)
- Rated Output Current: 16.5 A
- Control Method: V/f control (VFCplus)
- Braking: Integrated brake chopper
- EMC Filter: Integrated, Class C2 according to EN 61800-3
- Enclosure Rating: IP20
Lenze E84AVSCE7514VB0
Buy the Lenze E84AVSCE7514VB0, a 7.5 kW, 400/500V frequency inverter from the 8400 StateLine series. Features an integrated brake chopper and EMC filter for reliable motor control.
