Product Description

Leuze FT5.3/2N Forked Photoelectric Sensor

The Leuze FT5.3/2N is a high-performance forked photoelectric sensor designed for reliable object detection in industrial automation. Operating on the through-beam principle, it integrates both the transmitter and receiver into a single, robust die-cast zinc housing, ensuring precise alignment and simple installation. With a fork width of 5mm and a high switching frequency of 4,000 Hz, this sensor excels at detecting small parts, labels, and print marks in fast-paced applications. Its compact design and standard M8 connector make it a versatile solution for various mounting situations where precision and speed are critical.

Technical Specifications:

  • Series: 5

  • Operating principle: Through-beam principle

  • Fork width: 5 mm

  • Light source: LED, Infrared

  • Switching output: 2x NPN

  • Switching principle: Light switching

  • Switching frequency: 4,000 Hz

  • Supply voltage: 10 – 30 V DC

  • Connection: M8 connector, 3-pin

  • Degree of protection: IP 67

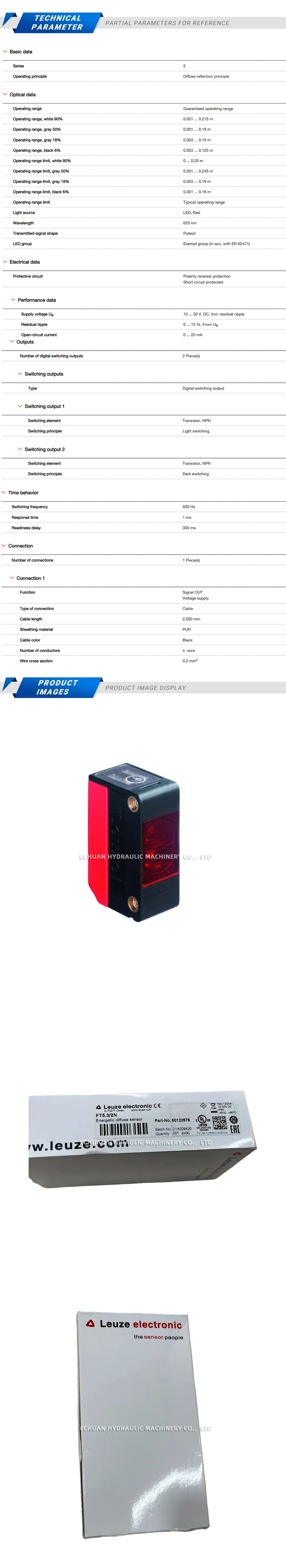

Leuze FT5.3/2N Description

Leuze FT5.3/2N

Leuze FT5.3/2N forked photoelectric sensor with a 5mm fork width, NPN output, and high 4,000 Hz switching frequency for precise, high-speed object detection.
