Product Description

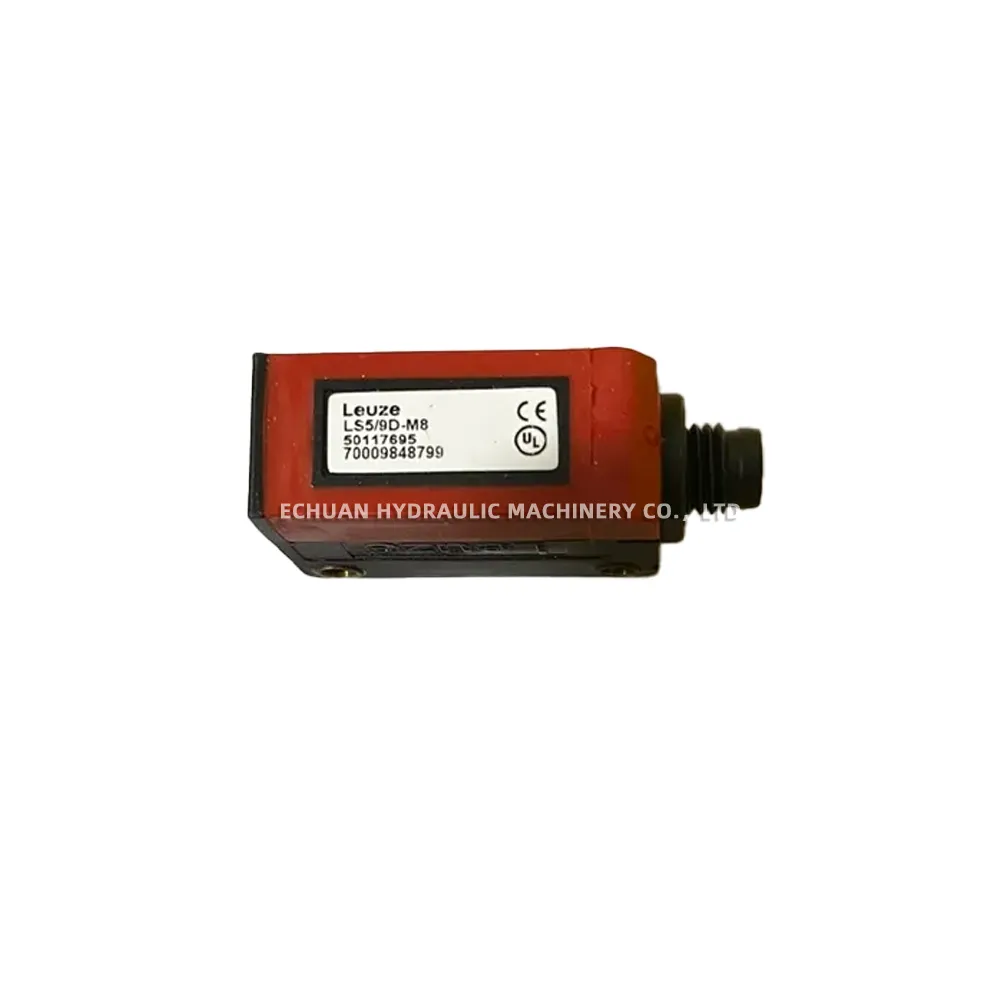

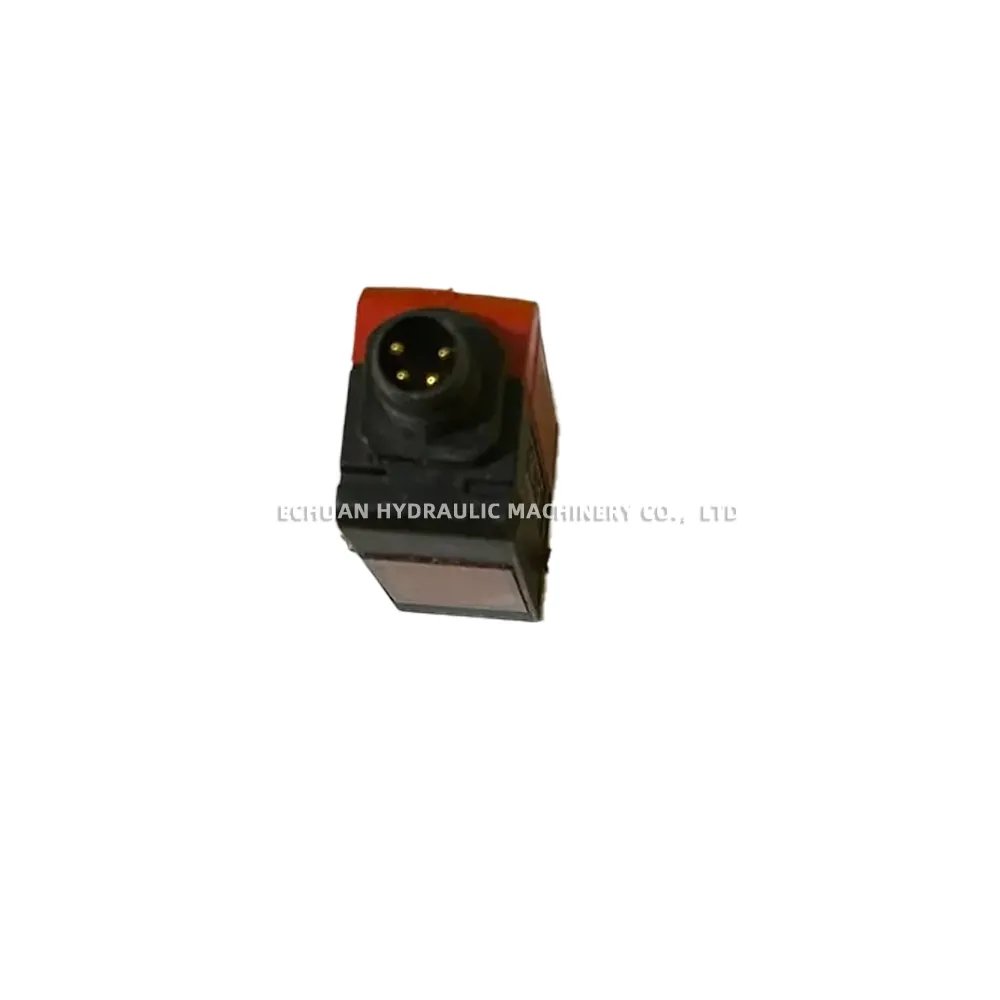

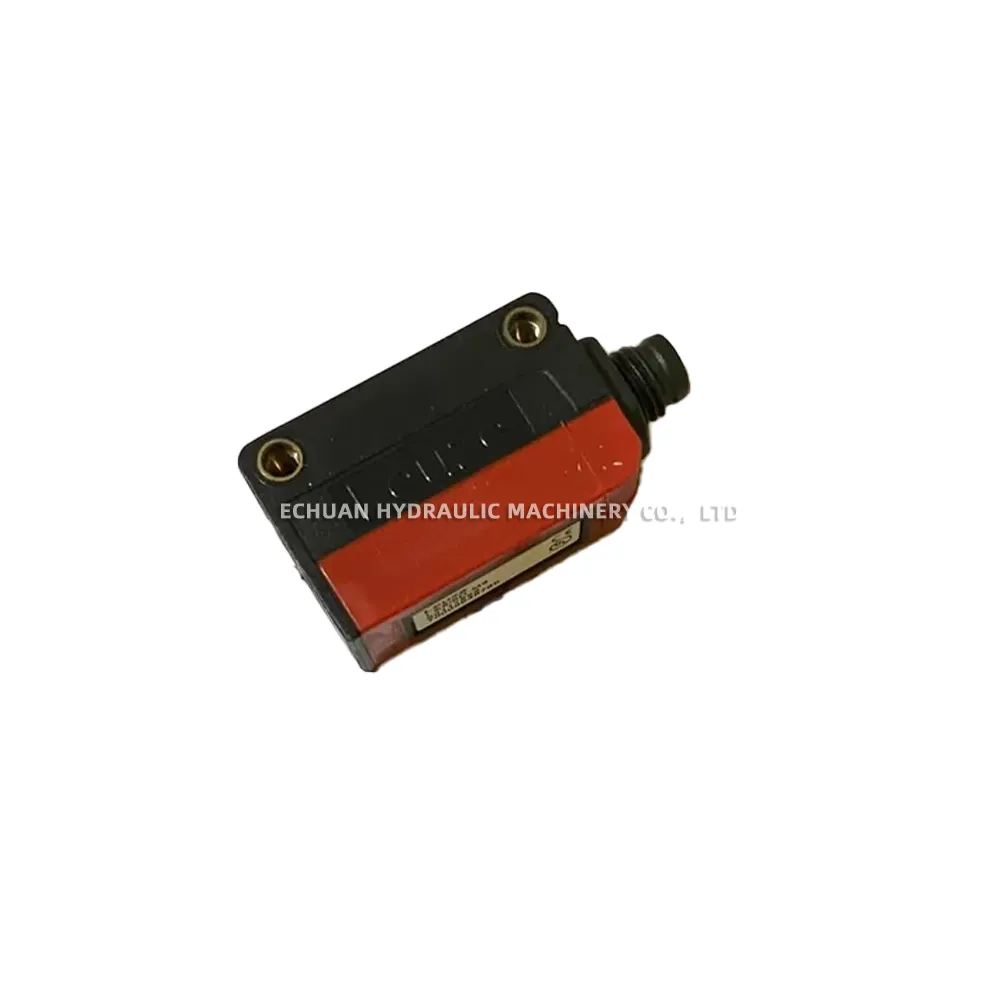

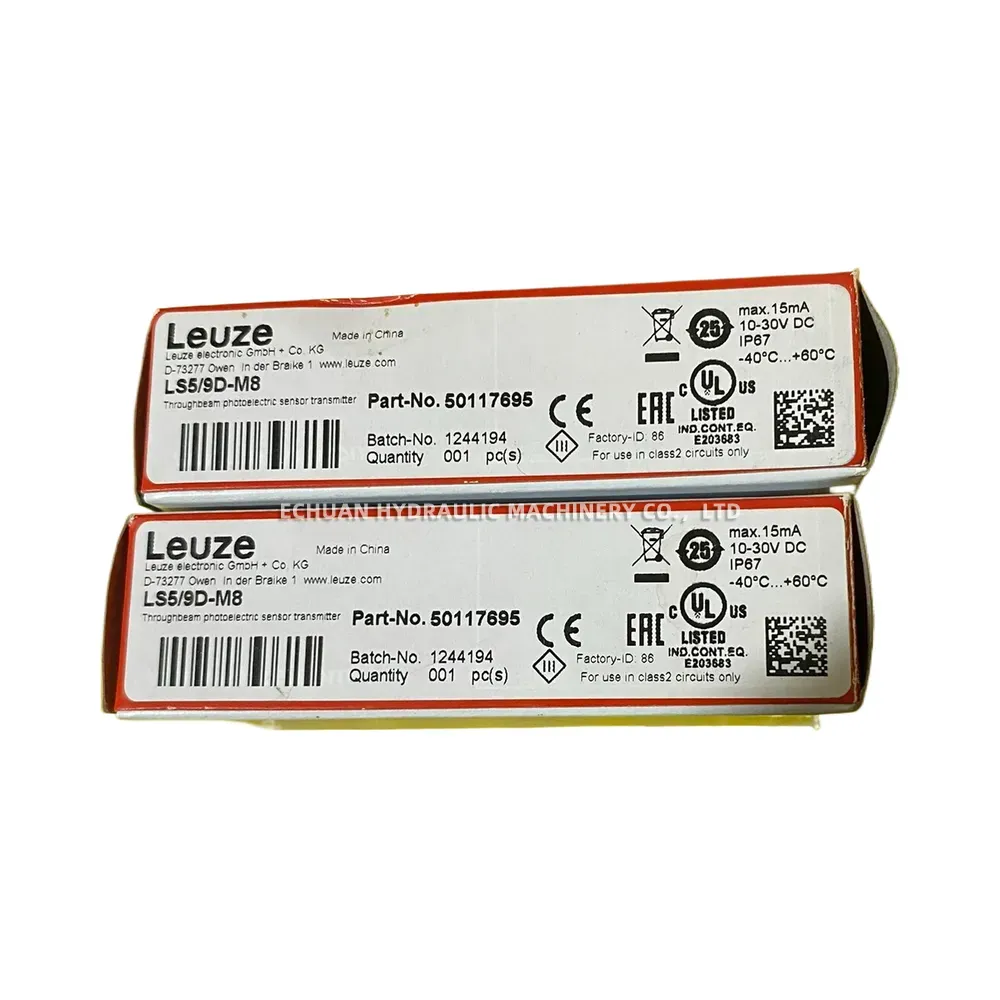

Leuze LS5/9D-M8

The Leuze LS5/9D-M8 is a high-performance through-beam photoelectric sensor receiver from the compact 5 series. Designed for reliable object detection in industrial automation, this sensor offers a significant operating range when paired with a compatible transmitter. Its robust PC-ABS housing and IP67 protection rating ensure durability in demanding industrial environments. The device features a standard M8 connector for quick and easy installation, and its PNP dark-switching output provides a dependable signal for control systems. With a fast response time and high switching frequency, the LS5/9D-M8 is an excellent choice for applications in packaging, material handling, and assembly lines.

Technical Specifications:

  • Device Type: Receiver (Through-beam principle)

  • Operating Range: 0 – 5 m (with compatible transmitter)

  • Switching Output: Transistor, PNP, Dark switching

  • Connection: M8 connector, 3-pin

  • Supply Voltage: 10 – 30 V DC

  • Degree of Protection: IP 67

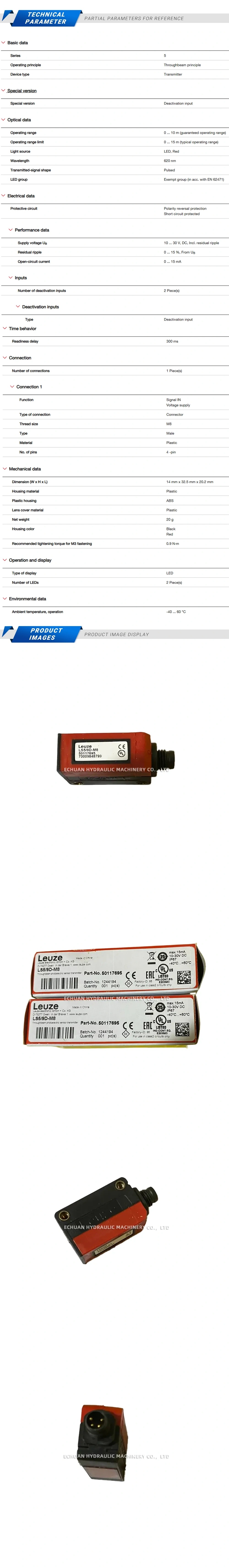

Leuze LS5/9D-M8 Description

Leuze LS5/9D-M8

Shop the Leuze LS5/9D-M8, a compact and reliable through-beam photoelectric sensor receiver. Features a 5m range, PNP dark-switching output, and a 3-pin M8 connector for industrial automation.

BrandLeuze
ModelLS5/9D-M8
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/leuze-ls5-9d-m8
