Product Description
Leuze HT46C/4P-200-M12
The Leuze HT46C/4P-200-M12 is a high-performance diffuse sensor featuring reliable background suppression. Part of the 46C series, this photoelectric sensor is engineered for precise object detection in demanding industrial automation environments. It utilizes a visible red LED light source and the H-triangulation principle to accurately detect objects within a 200mm range, irrespective of color or surface properties, while effectively ignoring objects in the background. Its robust PC-ABS housing with an IP67/IP69K protection rating ensures durability and reliable operation even in harsh conditions with high-pressure cleaning. The sensor is equipped with a standard M12 connector for easy and secure integration into existing systems.

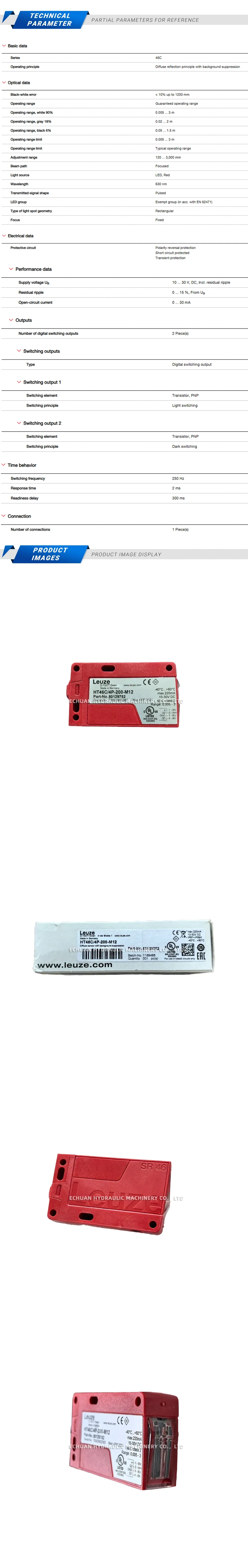

Technical Specifications:
- Series: 46C
- Operating Principle: Diffuse reflection sensor with background suppression
- Operating Range: 5 – 200 mm
- Light Source: LED, Red
- Switching Output: 2 x PNP (NO/NC)
- Supply Voltage: 10 – 30 V DC
- Connection: M12 connector, 4-pin
- Protection Class: IP 67, IP 69K
Leuze HT46C/4P-200-M12
Leuze HT46C/4P-200-M12 diffuse sensor with reliable background suppression, 200mm sensing range, PNP output, and a 4-pin M12 connector. Ideal for precise object detection in industrial automation.
