Product Description
LS XBF-AD08A

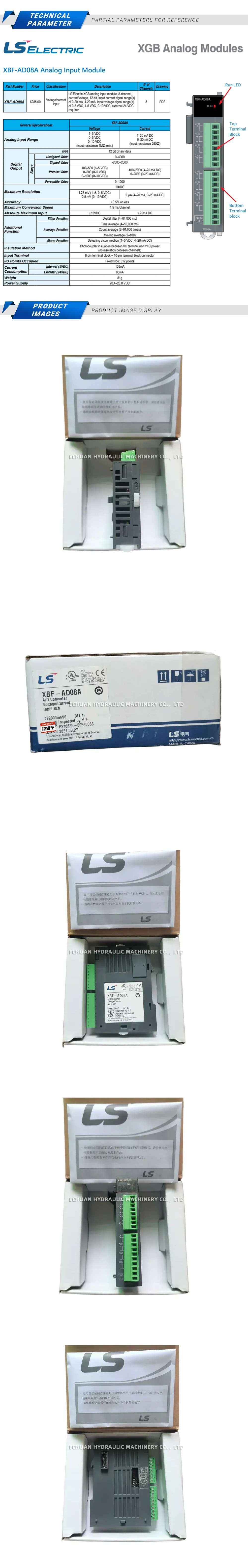

The LS XBF-AD08A is a high-performance analog input module designed for the LS Electric XGB series of Programmable Logic Controllers (PLCs). This versatile module features 8 channels that can be individually configured for either voltage or current inputs, providing exceptional flexibility for a wide range of industrial automation applications. It offers high-speed and high-resolution analog-to-digital conversion, ensuring accurate and reliable data acquisition from sensors and other analog devices. The module is easy to install and configure within the XGB system, making it an ideal solution for expanding the I/O capabilities of your control system for precise monitoring and process control.
Technical Specifications:
- Number of Input Channels: 8 channels
- Analog Input Type: Selectable Voltage / Current
- Input Range (Voltage): DC 1~5V, 0~5V, 0~10V, -10~+10V
- Input Range (Current): DC 4~20mA, 0~20mA
- Resolution: 14-bit (-10 to 10V), 13-bit (other ranges)
- Max Conversion Speed: 250µs/channel
- Compatibility: LS Electric XGB Series PLC
LS XBF-AD08A
The LS XBF-AD08A is an 8-channel analog input module for XGB series PLCs, offering high-speed, high-resolution conversion for both voltage and current signals in industrial automation systems.
| Brand | LS |
|---|---|
| Model | XBF-AD08A |
| Category | Electrical |
