Product Data Sheet

Global one-stop procurement platform for hydraulic spare parts.

Product Description

MARZOCCHI K1P S 2.5C

The Marzocchi K1P S 2.5C is a high-performance, unidirectional external gear pump, renowned for its reliability and efficiency in demanding hydraulic applications. Part of the K1P series, it features a compact and robust design with a body constructed from high-resistance aluminum alloy. This pump is engineered for low noise operation and exceptional volumetric efficiency, making it an ideal choice for a wide range of industrial and mobile hydraulic systems, including power packs, agricultural machinery, and construction equipment. Its precise manufacturing ensures a long service life and consistent performance under pressure.

Technical Specifications:

  • Geometric Displacement: 2.5 cm³/rev (0.153 in³/rev)
  • Maximum Continuous Pressure: 230 bar (3335 psi)
  • Maximum Peak Pressure: 270 bar (3915 psi)
  • Maximum Speed: 4000 rpm
  • Minimum Speed: 700 rpm
  • Rotation: Clockwise (viewed from shaft end)
  • Mounting Flange: European Group 1 with ø25.4 mm spigot
  • Shaft Type: Tapered 1:8 with key
  • Body Material: High-resistance aluminum alloy

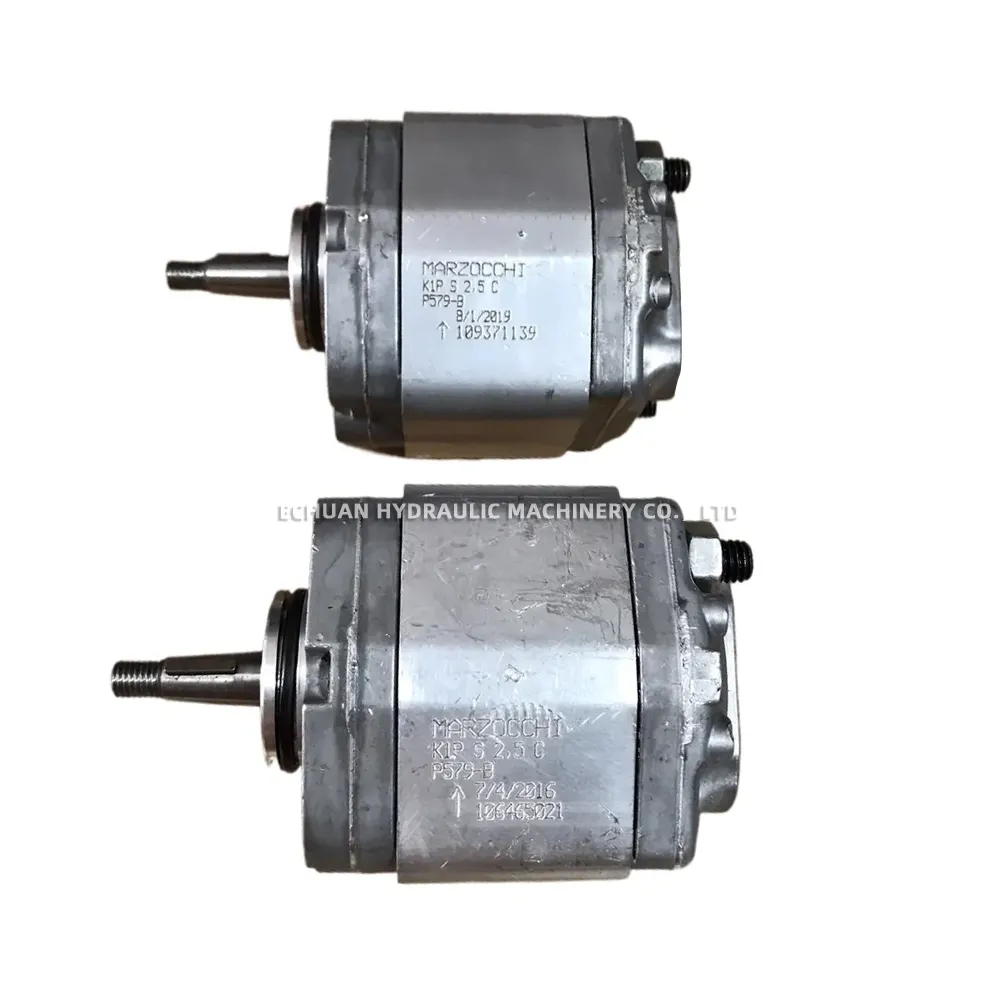

MARZOCCHI K1P S 2.5C - Image 1

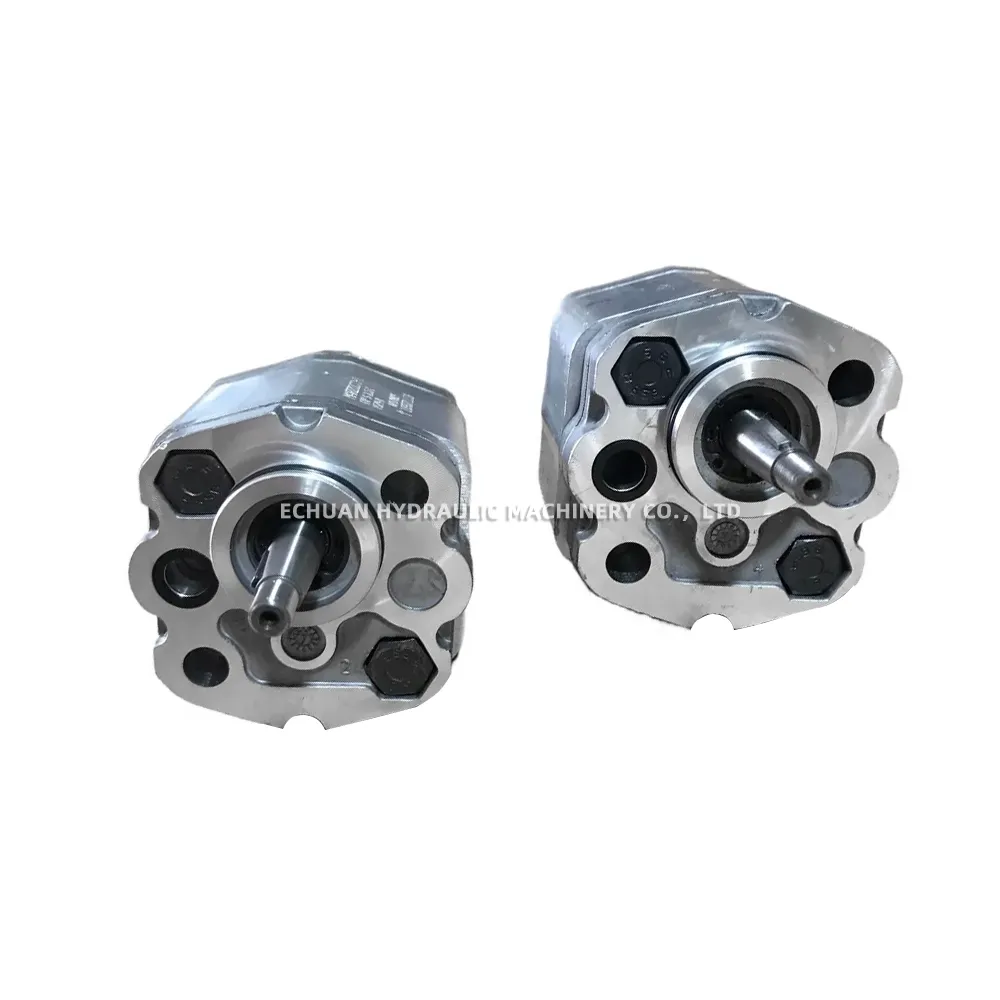

MARZOCCHI K1P S 2.5C - Image 2

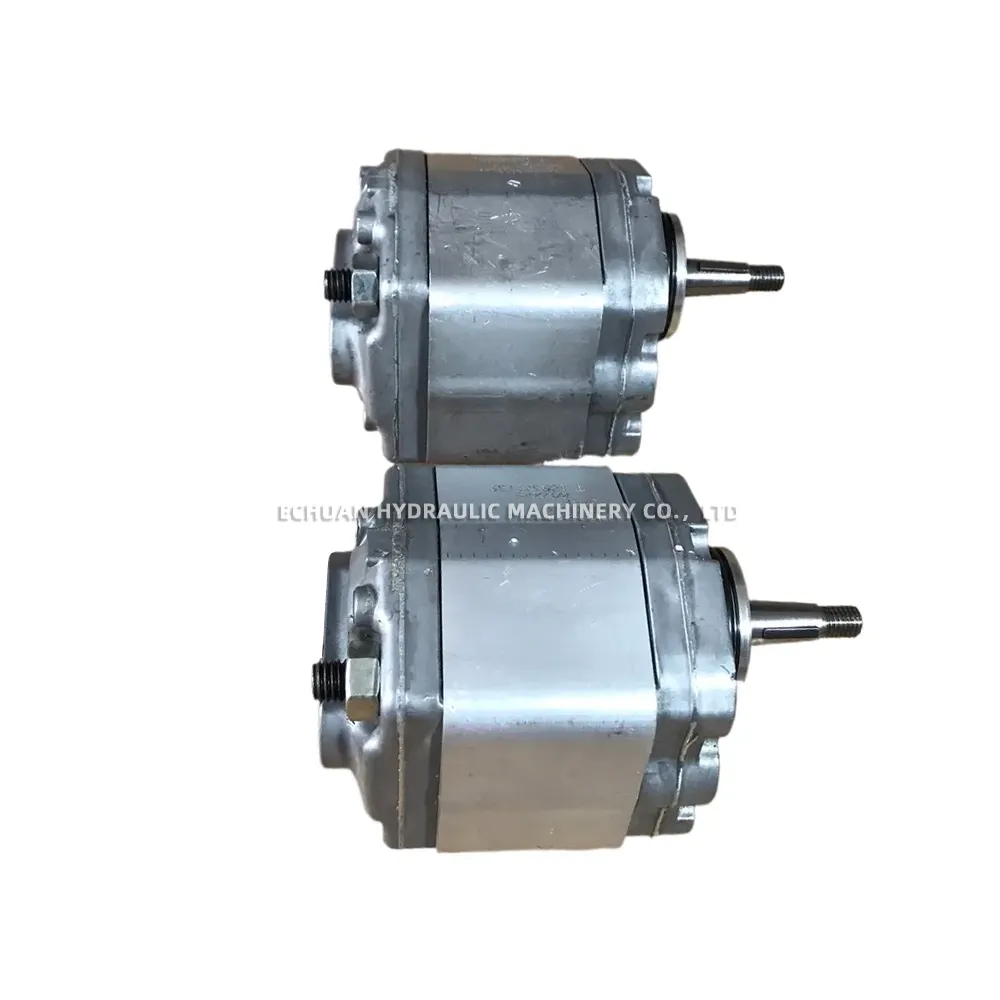

MARZOCCHI K1P S 2.5C - Image 3

MARZOCCHI K1P S 2.5C

Model:MARZOCCHI K1P S 2.5C

BrandMarzocchi
ModelK1P S 2.5C
Part No.MARZOCCHI K1P S 2.5C
CategoryHydraulic pumps
Linkhttps://www.echuan-hydraulic.com/product/marzocchi-k1p-s-2-5c
