Product Description
MCGS TPC7062TX (KX) Embedded Integrated Touch Screen / HMI Panel

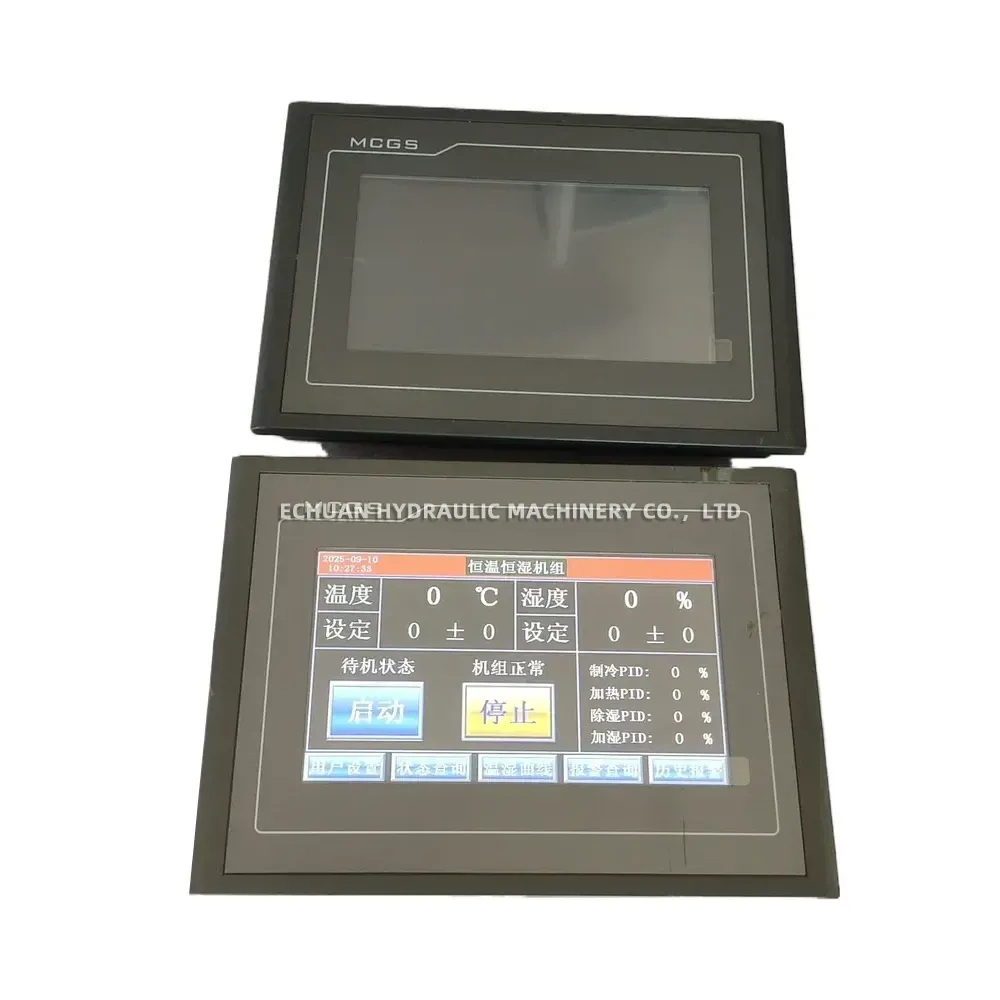

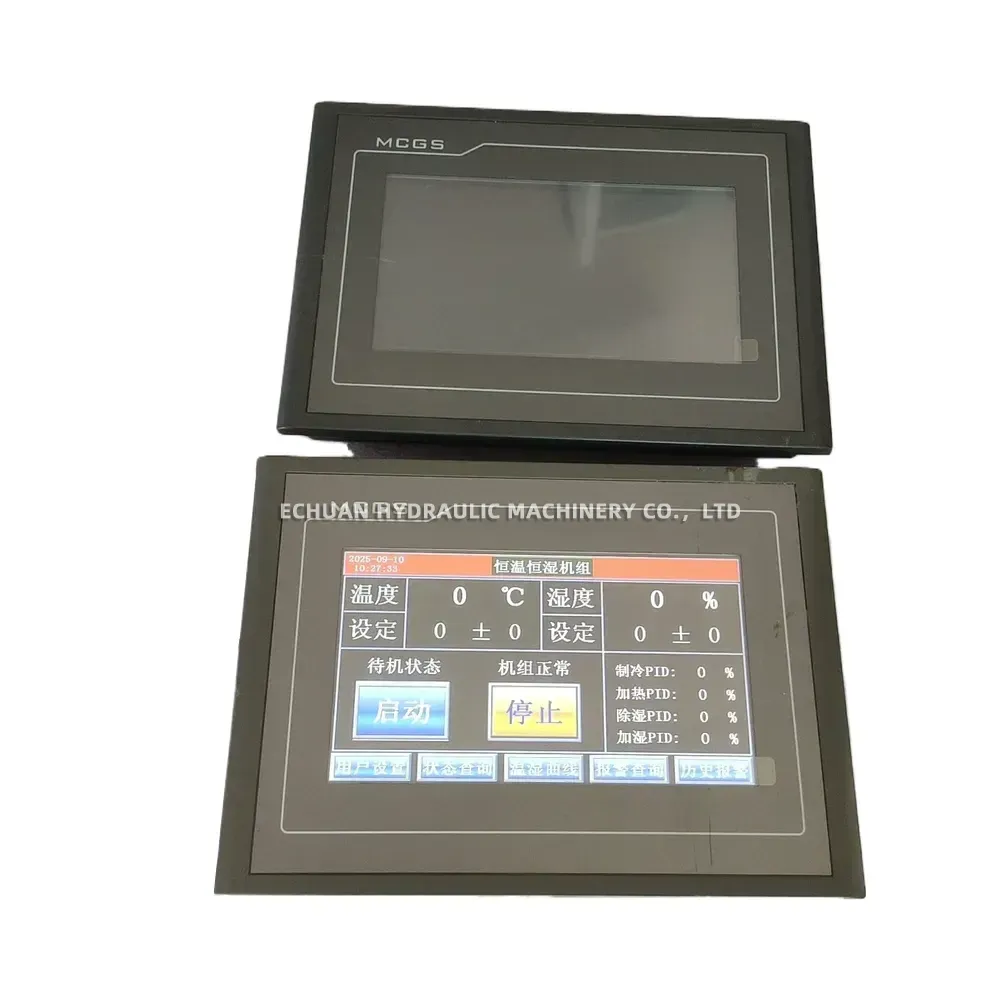

The MCGS TPC7062TX (KX) is a highly reliable, embedded integrated touch screen Human Machine Interface (HMI) panel designed for demanding industrial automation applications. Manufactured by Kunlun Tongtai, this robust HMI is engineered to seamlessly monitor and control critical parameters such as temperature, humidity, and PID settings in industrial machinery. It features a user-friendly interface with versatile connectivity options, including USB ports and a DB9 serial communication interface, making it an ideal choice for constant temperature and humidity units and other complex control systems. Its embedded design ensures a clean, flush installation in control cabinets.
Technical Specifications:
- Brand: MCGS (Kunlun Tongtai)
- Model: TPC7062TX (KX)

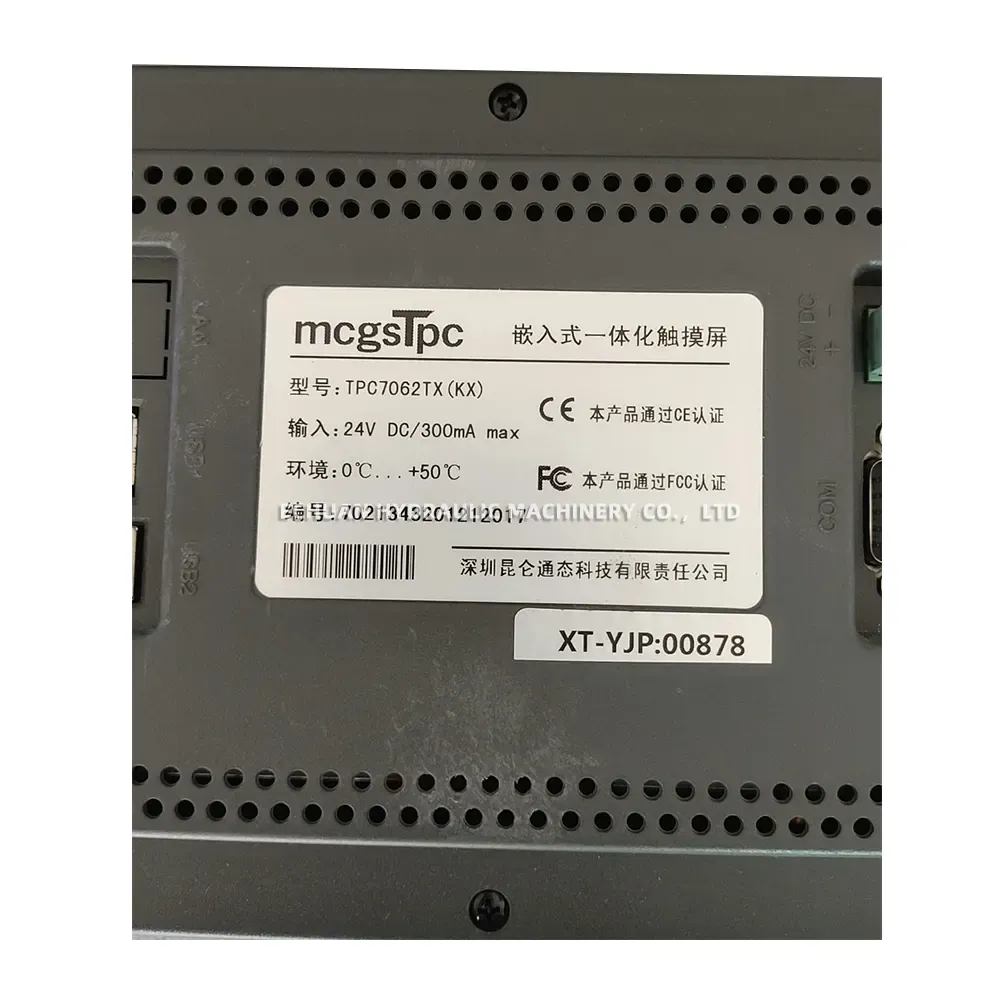

- Power Input: 24V DC
- Maximum Current: 300mA max
- Operating Temperature: 0°C to +50°C

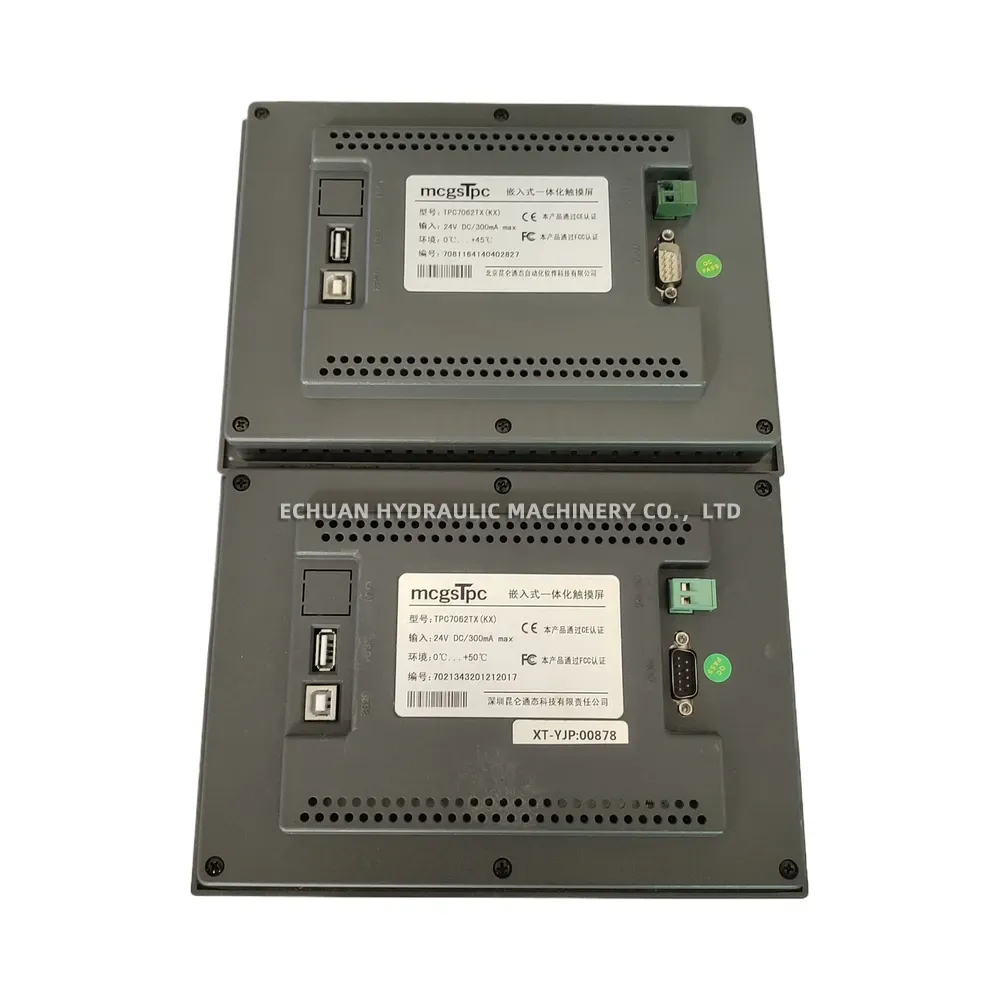

- Interfaces: USB ports, Serial communication (DB9 connector)
- Power Connection: Green terminal block

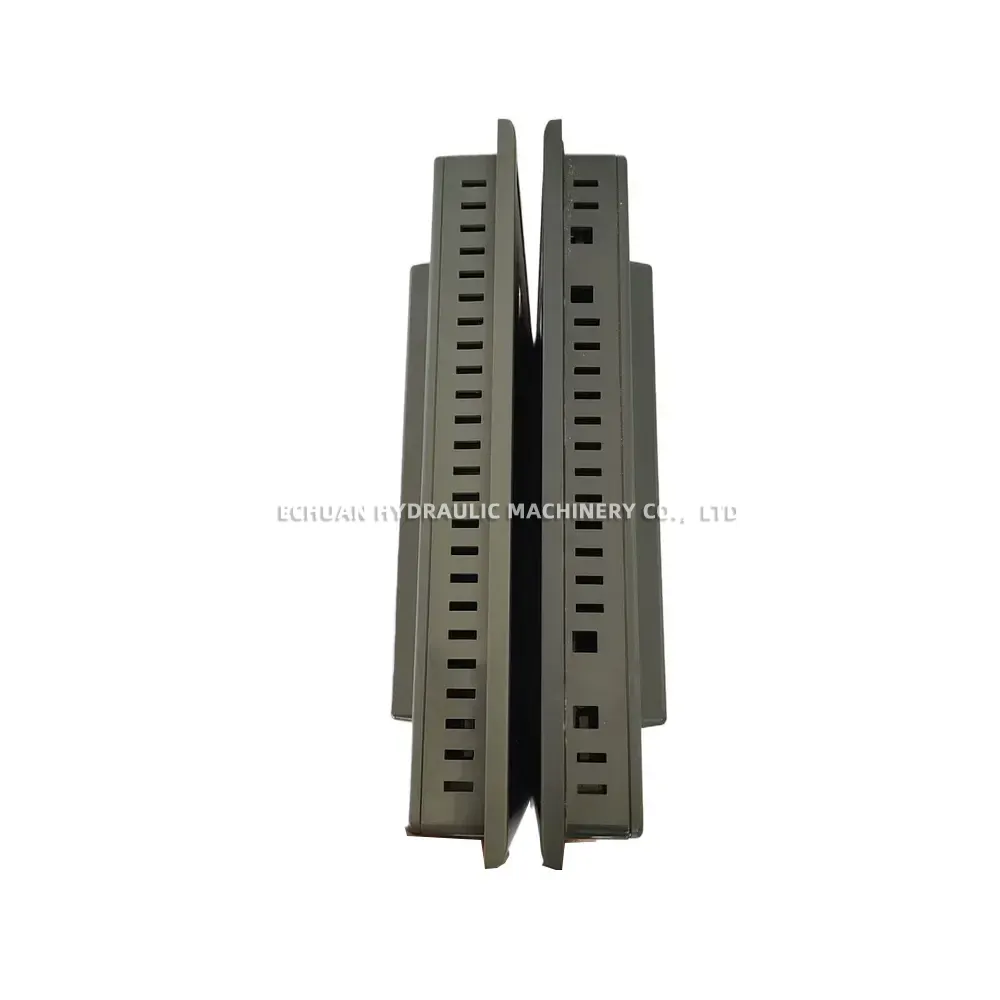

- Installation Type: Embedded
MCGS TPC7062TX (KX) Embedded Integrated Touch Screen / HMI Panel
Optimize your industrial automation with the MCGS TPC7062TX (KX) Embedded HMI Touch Panel. Featuring a 24V DC input, robust USB/DB9 serial connectivity, and a 0°C to 50°C operating range, this touch screen delivers precise control for temperature, humidity, and PID machinery systems.
