Product Description
Merlin Gerin 1073996V1 Automatic Transfer Switch Controller (BA Automatisme)

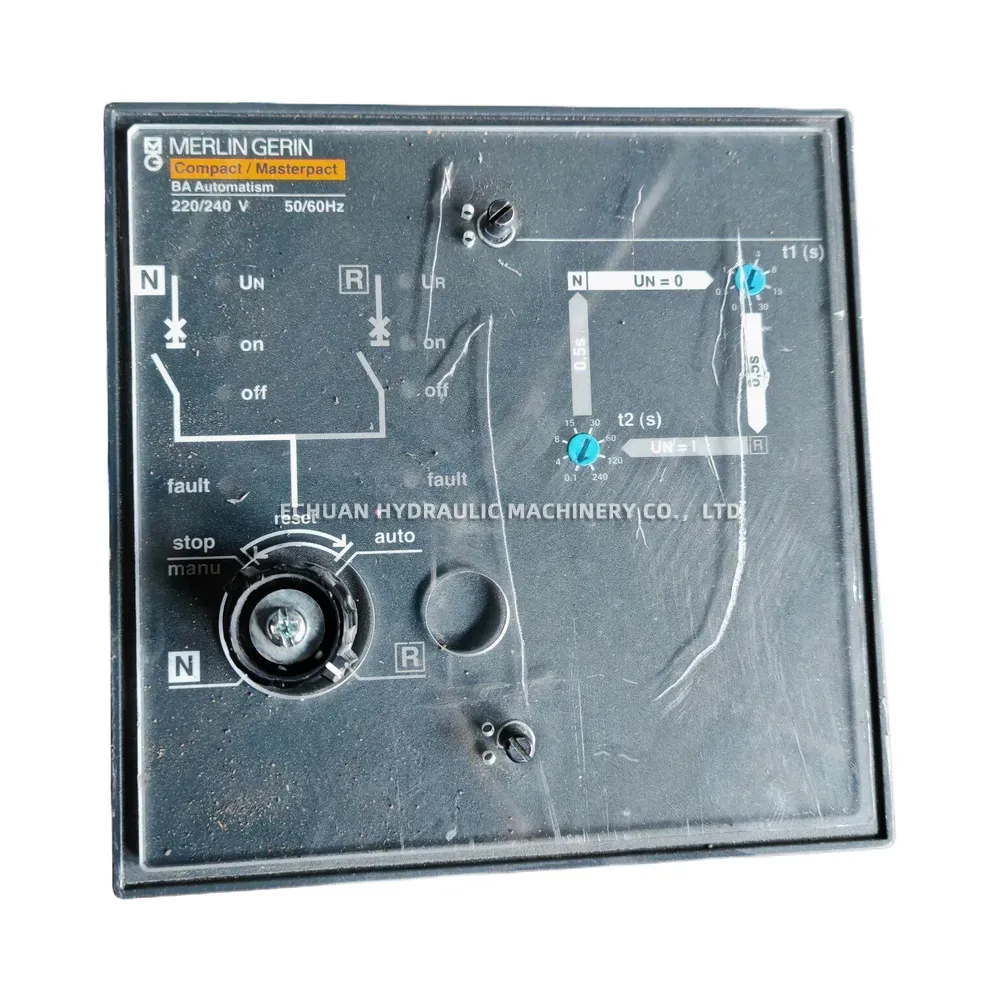

The Merlin Gerin 1073996V1, also known as the BA Automatisme, is a robust and reliable automatic transfer switch (ATS) controller engineered for seamless power source management. Specifically designed for use with Merlin Gerin’s Compact and Masterpact series circuit breakers, this unit automates the switching process between a normal power source and a reserve or backup source. It features a user-friendly interface with a multi-position selector for Auto, Stop, Manual, and Reset modes, along with adjustable time delays (t1 and t2) for customized transfer logic. Clear LED indicators provide at-a-glance status updates on source availability and faults, ensuring operational transparency and enhanced system reliability.
Technical Specifications:
- Model: 1073996V1 / BA Automatisme
- Brand: Merlin Gerin
- Product Type: Automatic Transfer Switch (ATS) Controller
- Operating Voltage: 220/240V AC
- Frequency: 50/60Hz
- Compatibility: Merlin Gerin Compact and Masterpact circuit breakers
- Control Modes: Automatic, Manual, Stop, Reset

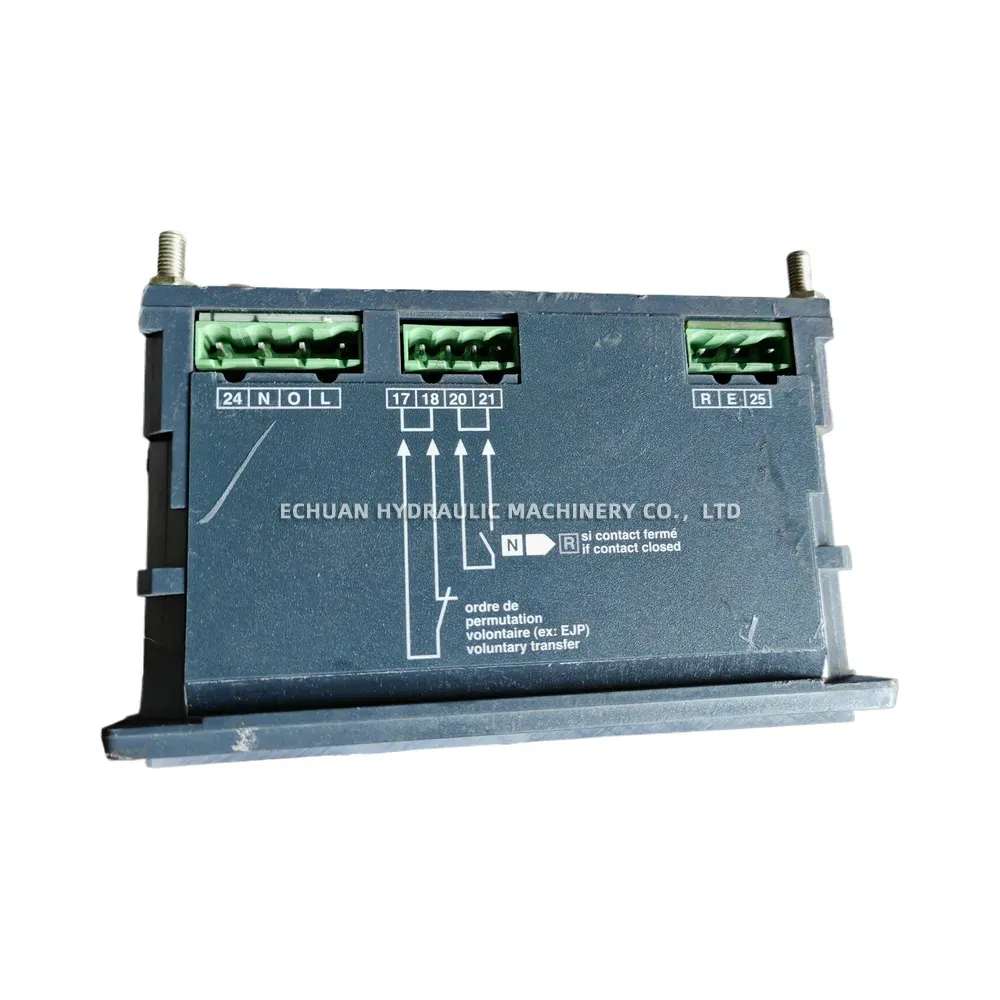

- Features: Adjustable time delays, voluntary transfer input, LED status and fault indicators
Merlin Gerin 1073996V1 Automatic Transfer Switch Controller (BA Automatisme)
Shop the genuine Merlin Gerin 1073996V1 BA Automatisme, an automatic transfer switch controller for Compact and Masterpact breakers. This reliable 220/240V 50/60Hz unit ensures seamless power source management with adjustable delays and multiple control modes.
