Product Description

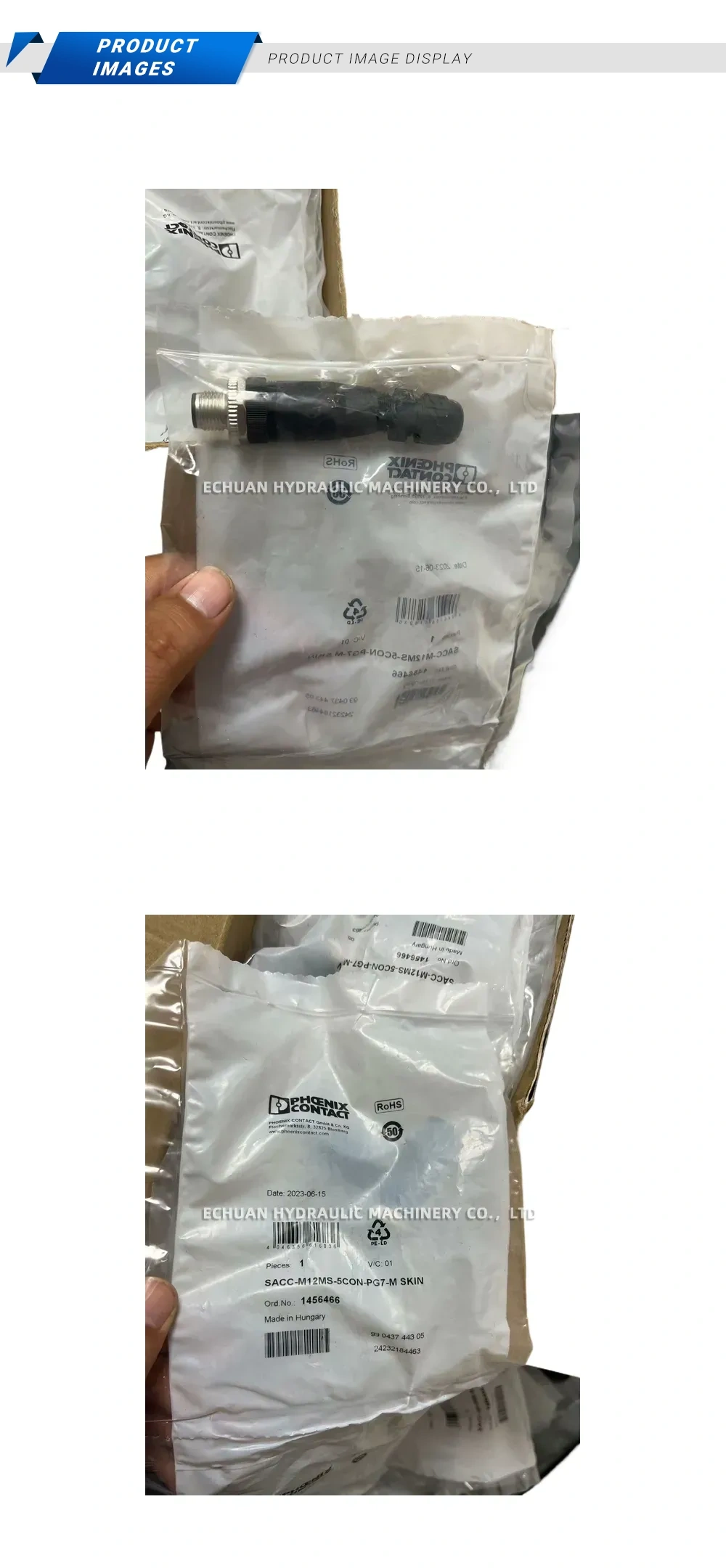

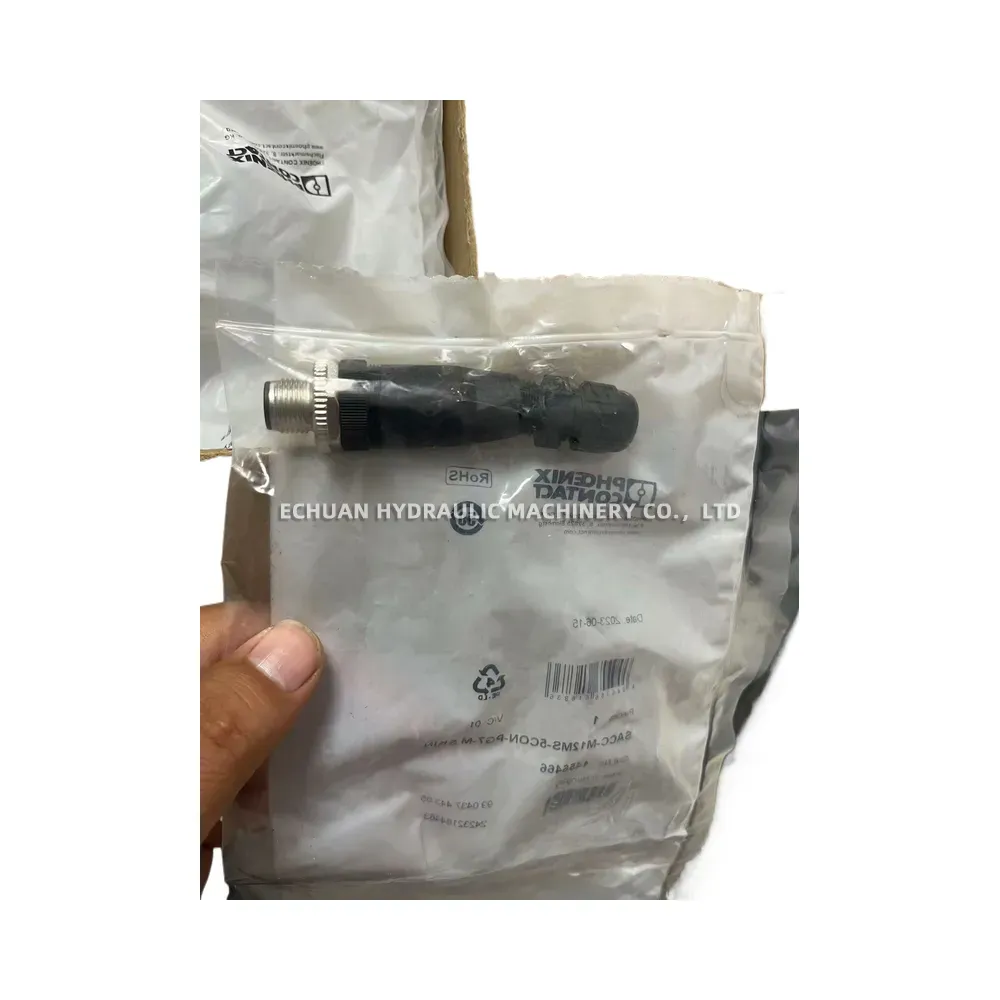

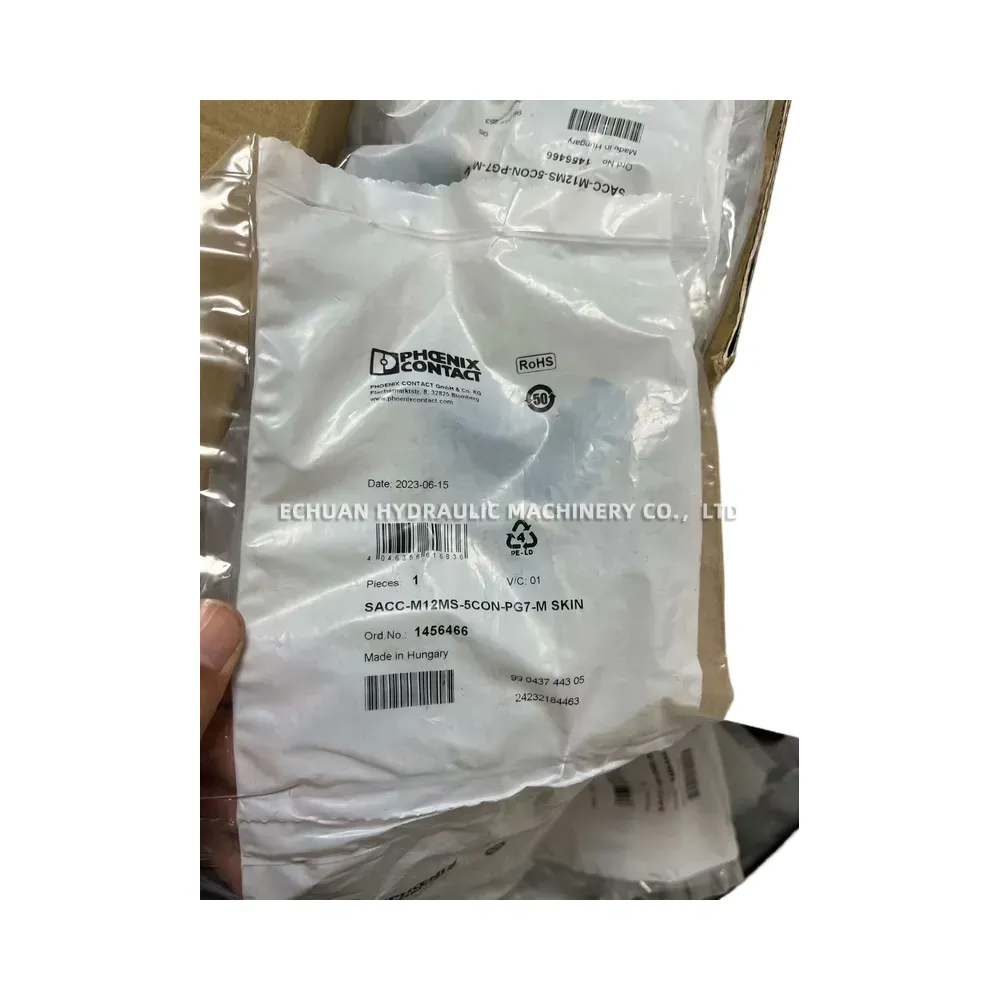

Phoenix Contact SACC-M12MS-5CON-PG7-M SKIN M12 Male Connector with PG7 Cable Gland
The Phoenix Contact SACC-M12MS-5CON-PG7-M SKIN is a robust, field-wireable M12 male connector designed for demanding industrial automation and control applications. Featuring a straight, 5-pin (A-coded) configuration, it allows for quick and reliable on-site assembly without special tools. The connector utilizes a proven screw connection method for secure wire termination and is housed in a durable, nickel-plated zinc die-cast body. Its integrated PG7 cable gland ensures a tight seal for cables with an outer diameter of 4 mm to 6 mm, providing IP67 protection against dust and water ingress when mated. This makes it an ideal solution for connecting sensors, actuators, and other field devices in harsh environments.
Technical Specifications:
- Product Type: Field-wireable Sensor/Actuator Connector
- Connector Type: M12 Male, Straight, A-Coded
- Number of Positions: 5
- Connection Method: Screw Connection
- Cable Gland: PG7
- External Cable Diameter: 4 mm to 6 mm
- Conductor Cross Section: 0.25 mm² to 0.75 mm² (AWG 24 to 18)
- Rated Voltage: 60 V
- Rated Current: 4 A
- Degree of Protection: IP67 (When mated)
- Ambient Temperature (Operation): -40 °C to 85 °C
- Order Number: 1456466
Phoenix Contact SACC-M12MS-5CON-PG7-M SKIN M12 Male Connector with PG7 Cable Gland
Shop the Phoenix Contact SACC-M12MS-5CON-PG7-M SKIN (1456466), a 5-pin, A-coded M12 male field-wireable connector. Features a robust metal housing, screw connection, and PG7 gland for IP67 protection in industrial environments.
| Brand | Phoenix Contact |
|---|---|
| Model | SACC-M12MS-5CON-PG7-M SKIN |
| Part No. | 832078114909 |
| Category | Electrical |
