Product Description

Micro BZE6-2RQ2-J

The Honeywell MICRO SWITCH BZE6-2RQ2-J is a robust and reliable enclosed limit switch designed for a wide range of industrial applications. Part of the BZE6 series, it features a durable die-cast zinc housing that provides excellent protection against harsh environmental conditions, meeting NEMA 1, 3, and 4 standards. This model is equipped with a top roller plunger actuator for precise and dependable position sensing. Its SPDT Double Break (DB) circuitry ensures reliable switching performance, making it an ideal choice for controlling machinery, conveyor systems, and other automated equipment where durability and accuracy are paramount.

Technical Specifications:

  • Product Type: Enclosed Limit Switch

  • Actuator Type: Top Roller Plunger

  • Circuitry: SPDT-DB (Single Pole Double Throw – Double Break)

  • Electrical Rating: 15 A at 125/250/480 VAC

  • Termination: 1/2 – 14 NPT Conduit

  • Housing Material: Die-cast Zinc

  • Sealing: NEMA 1, 3, 4; IP66

  • Operating Temperature: -32 °C to 71 °C [-25 °F to 160 °F]

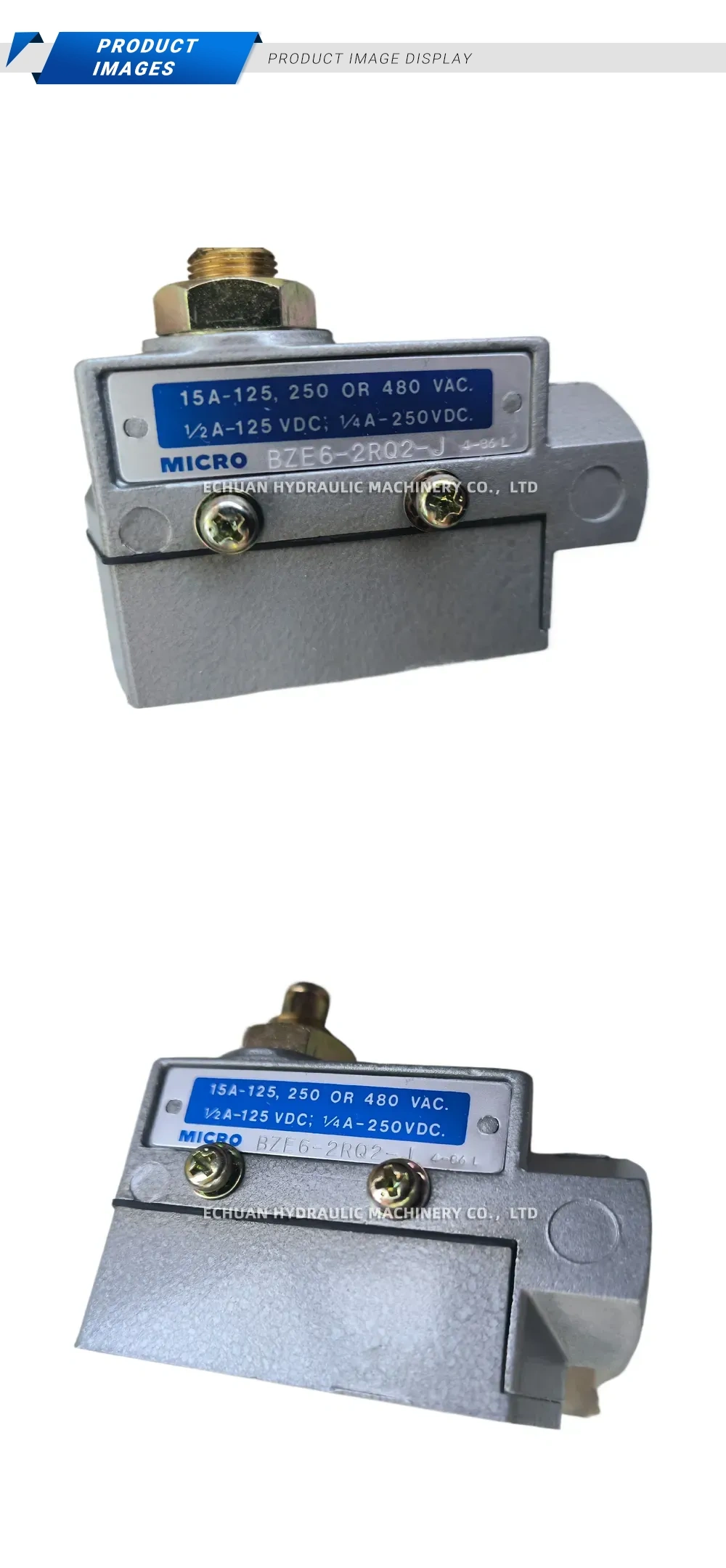

Micro BZE6-2RQ2-J Description

Micro BZE6-2RQ2-J

Discover the Honeywell MICRO SWITCH BZE6-2RQ2-J, a rugged enclosed limit switch with a top roller plunger, SPDT-DB contacts, and NEMA 4 sealing for demanding industrial position sensing applications.
