Product Description

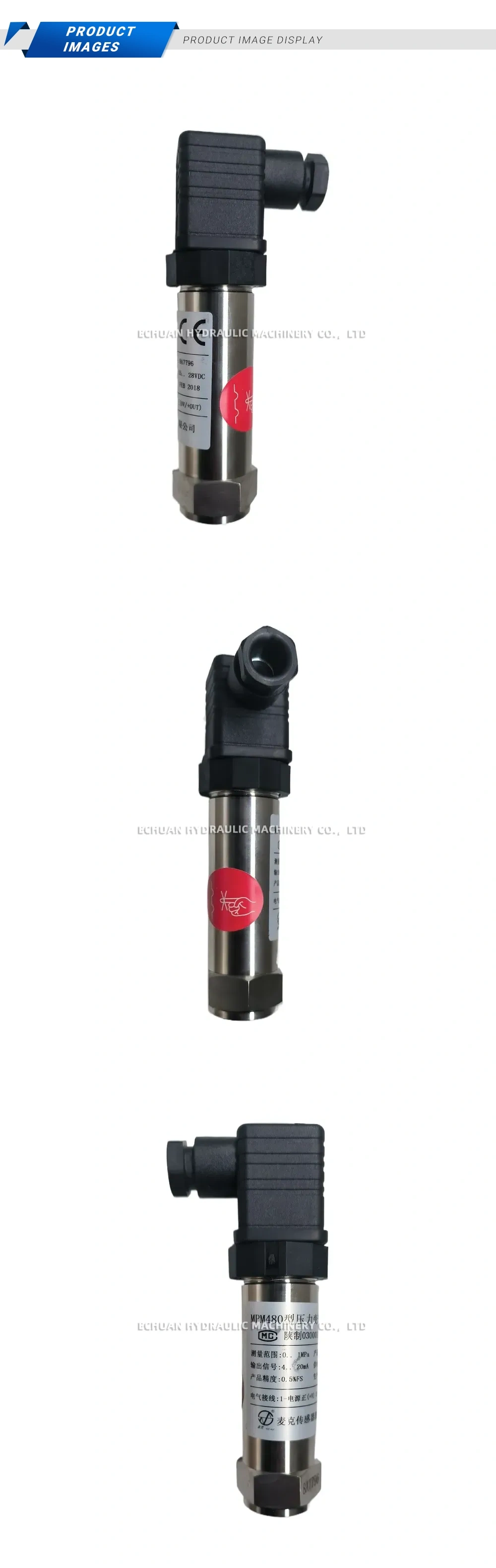

Micro MPM480 E22B1C1G Piezoresistive Pressure Transmitter
The Micro MPM480 Piezoresistive Pressure Transmitter is a highly reliable and stable device designed for precise pressure measurement in a variety of industrial applications. This specific model, E22B1C1G, is an intrinsically safe, explosion-proof version (Exia II CT6 Ga), making it suitable for hazardous environments found in the petroleum, chemical, and natural gas industries. It utilizes a high-quality piezoresistive sensing element and a dedicated conditioning circuit to deliver a standard 4~20mA DC output signal. With its robust stainless steel construction and a G1/4 male pressure port, the MPM480 ensures long-term performance and durability even in demanding conditions.
Technical Specifications:
- Model: MPM480 E22B1C1G
- Pressure Range: 0 ~ 1 MPa
- Output Signal: 4~20mA DC (2-wire)
- Accuracy: ±0.5% FS
- Power Supply: 10V ~ 30V DC
- Pressure Port: G1/4 Male
- Electrical Connection: Hirschmann Connector (DIN43650)
- Explosion-Proof Certification: Exia II CT6 Ga
- Operating Temperature: -30℃ ~ 80℃
Micro MPM480 E22B1C1G
Buy the Micro MPM480 E22B1C1G, an intrinsically safe pressure transmitter with a 0-1MPa range, 4-20mA output, and G1/4 connection. Certified Exia II CT6 Ga for hazardous environments.
