Product Description

Microsensor MPM480

The Microsensor MPM480 is a high-performance, piezoresistive pressure transmitter designed for reliable and stable pressure measurement in a wide range of industrial applications. Featuring a robust all-stainless steel construction, this transmitter is built to withstand harsh environments, making it ideal for use in the petroleum, chemical, metallurgical, and power generation industries. The MPM480 offers excellent long-term stability and a variety of configurable options for pressure ranges, output signals, and process connections, ensuring precise and versatile performance for process control and monitoring systems. Its compact design and high accuracy make it a cost-effective solution for general-purpose pressure sensing.

Technical Specifications:

  • Pressure Range: -0.1MPa ~ 0kPa to 10kPa ~ 100MPa

  • Accuracy: ±0.25% FS (Typical), ±0.5% FS (Maximum)

  • Output Signal: 4~20mA DC (2-wire), 0~5V / 1~5V / 0~10V DC (3-wire)

  • Power Supply: 12V ~ 30V DC

  • Operating Temperature: -30°C ~ 80°C

  • Ingress Protection: IP65

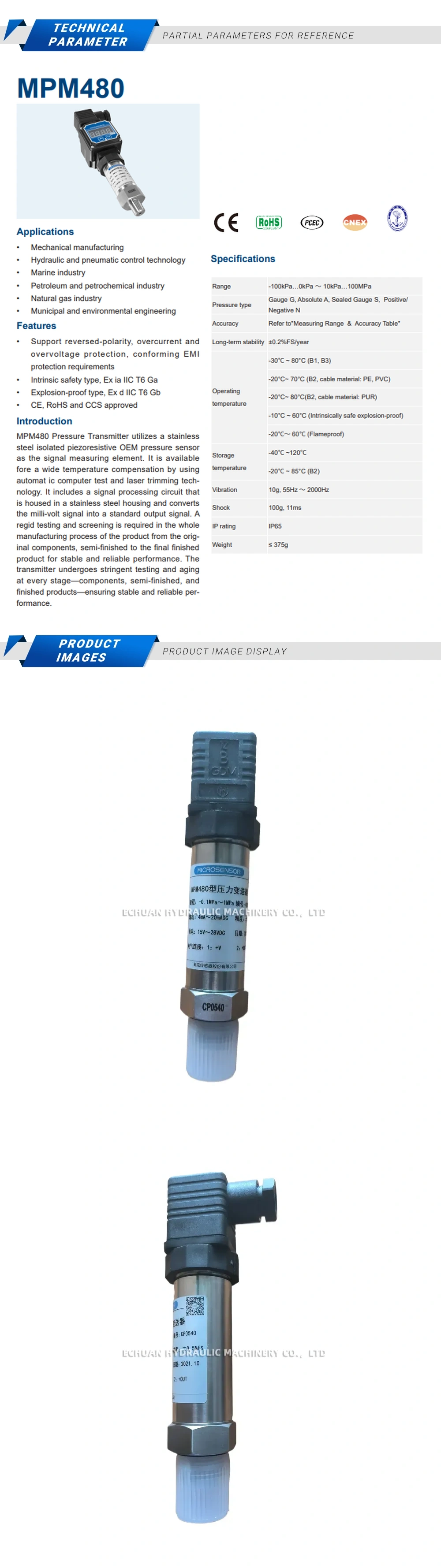

Microsensor MPM480 Description

Microsensor MPM480

Discover the Microsensor MPM480, a reliable and accurate piezoresistive pressure transmitter for industrial process control, offering versatile output signals and robust stainless steel construction.
