Product Description

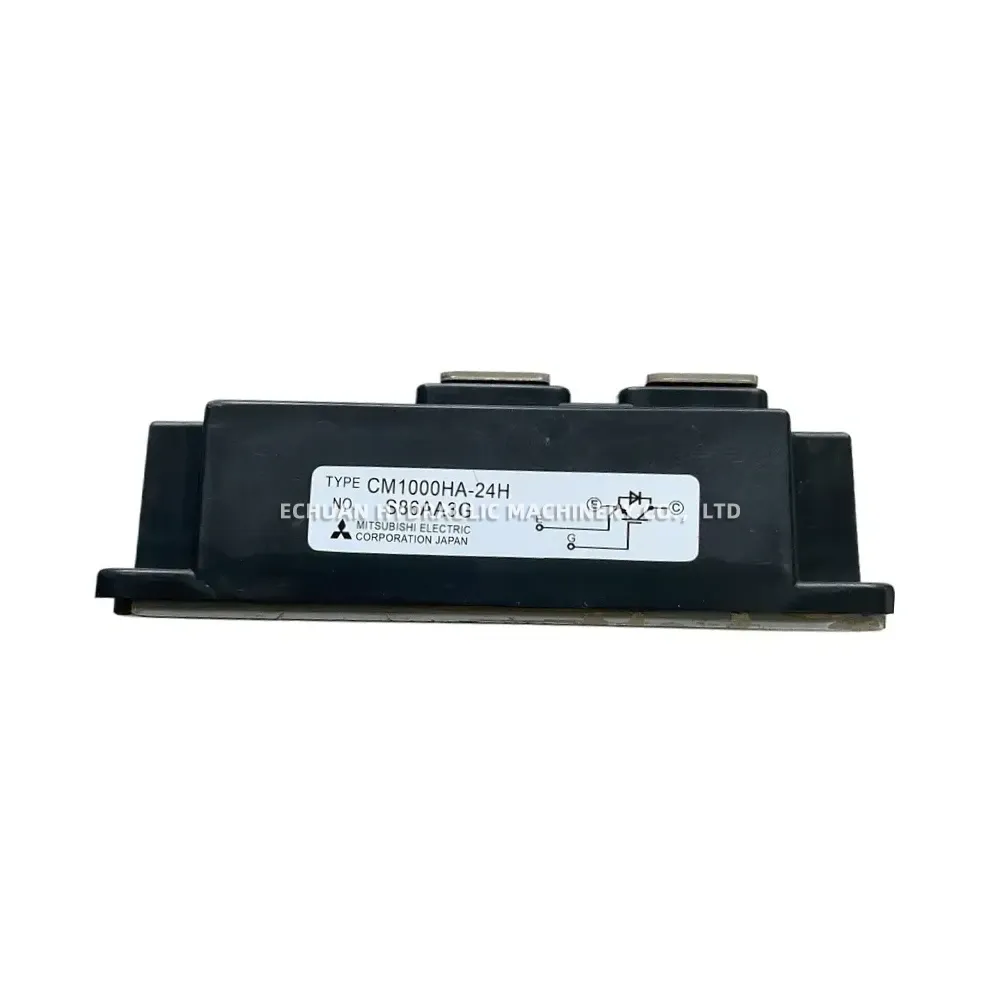

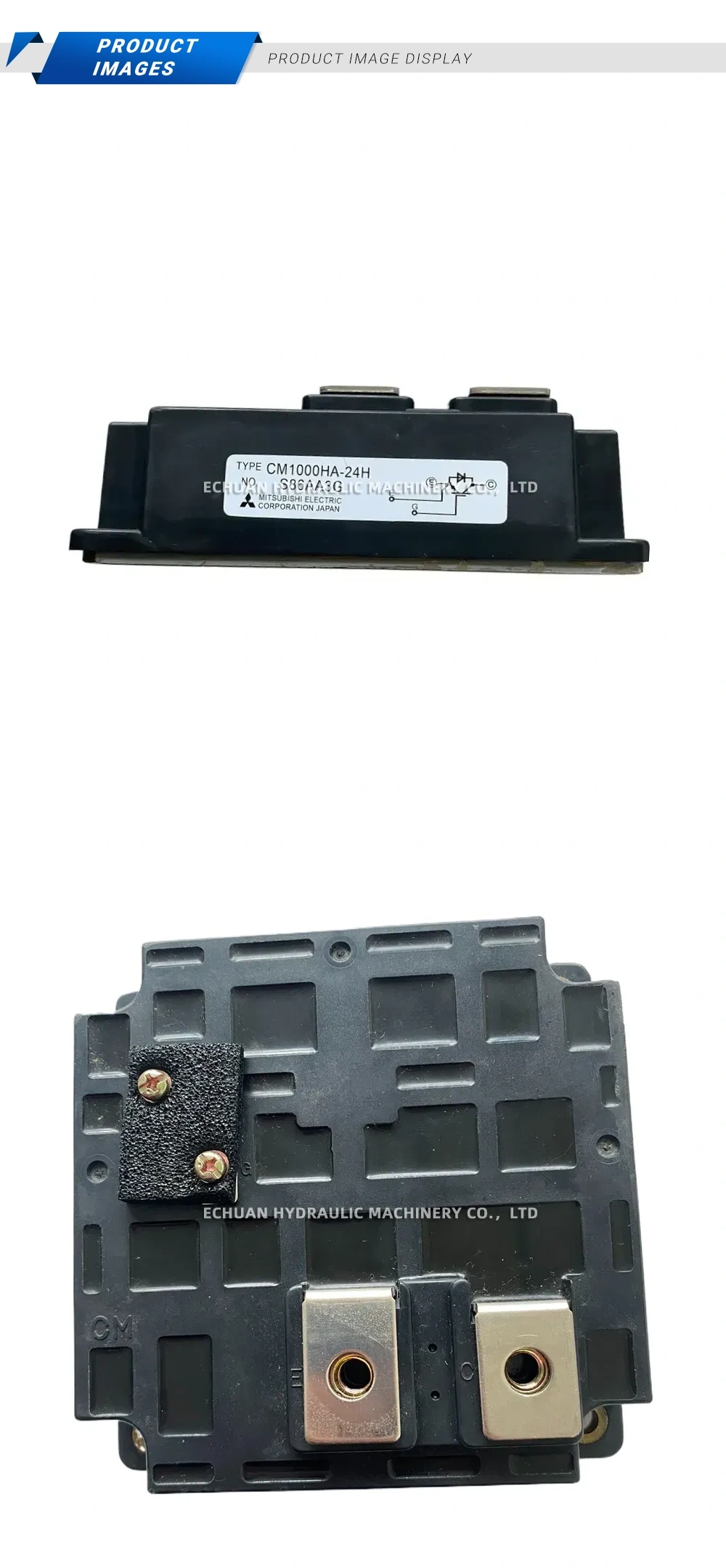

Mitsubishi Electric CM1000HA-24H IGBT Module
The Mitsubishi Electric CM1000HA-24H is a premium high-power IGBT (Insulated Gate Bipolar Transistor) module engineered for demanding industrial power electronic applications. This robust module features a single IGBT element paired with an anti-parallel free-wheeling diode, ensuring highly efficient high-voltage and high-current switching. Designed with clearly marked Emitter (E), Gate (G), and Collector (C) terminals, the CM1000HA-24H offers streamlined installation and reliable performance. It is an ideal solution for heavy-duty motor drives, large-scale UPS systems, and industrial inverters requiring superior thermal management and electrical stability.
Technical Specifications:
- Brand: Mitsubishi Electric
- Model: CM1000HA-24H
- Module Configuration: Single IGBT with Anti-Parallel Free-Wheeling Diode
- Collector-Emitter Voltage (VCES): 1200V
- Continuous Collector Current (IC): 1000A

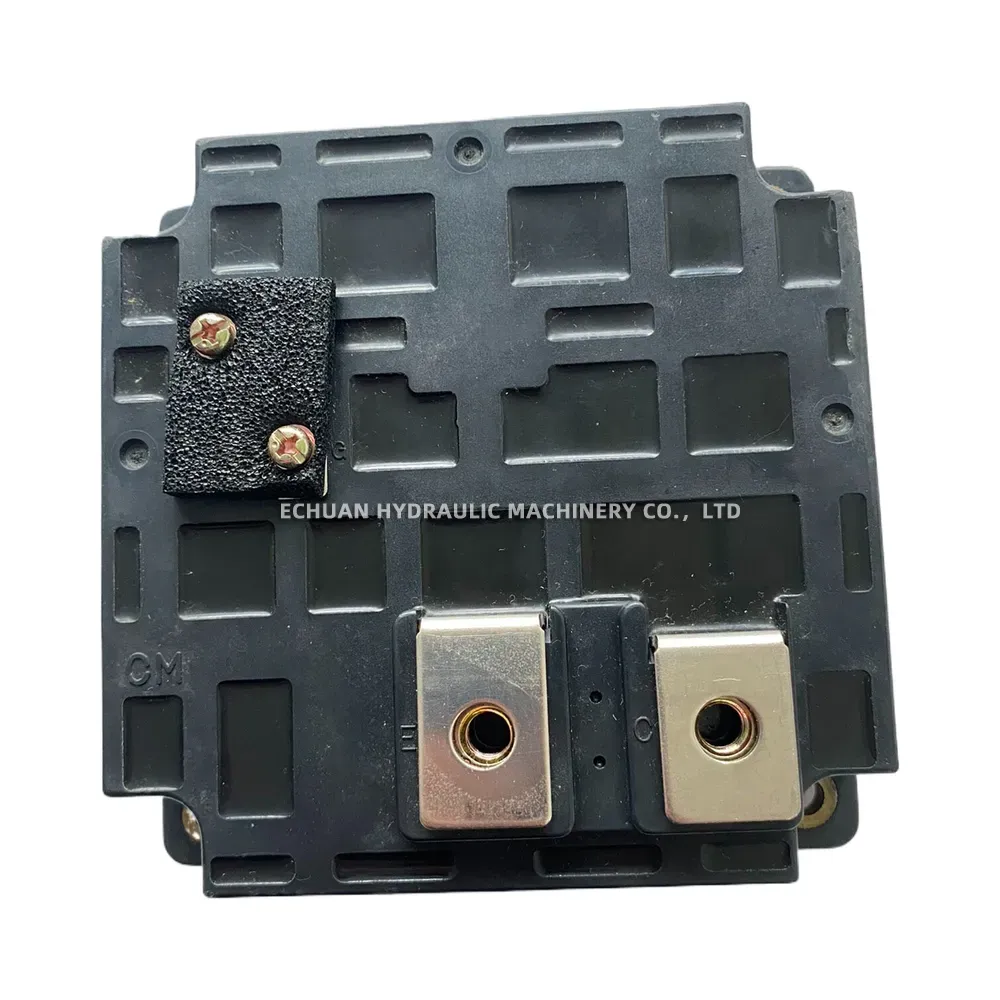

- Terminal Markings: Collector (C), Emitter (E), Gate (G)
- Application: High Voltage & High Current Industrial Power Electronics
Mitsubishi Electric CM1000HA-24H IGBT Module
Shop the Mitsubishi Electric CM1000HA-24H IGBT Module (1200V, 1000A). This high-power, single-switch transistor module features an integrated anti-parallel diode, delivering unmatched reliability for industrial inverters, motor control drives, and heavy-duty power supplies.
| Brand | Mitsubishi Electric |
|---|---|
| Model | CM1000HA-24H |
| Part No. | 802941767726 |
| Category | Electrical |
