Product Description
MITSUBISHI ELECTRIC FX5-ENET/IP Ethernet Communication Module
The MITSUBISHI ELECTRIC FX5-ENET/IP is a highly reliable Ethernet communication extension module designed exclusively for the MELSEC iQ-F (FX5) series programmable controllers. It enables seamless integration of your automation equipment into EtherNet/IP networks, facilitating high-speed data exchange and robust industrial communication. The module is equipped with dual Ethernet ports (P1, P2) that support flexible network topologies, complete with intuitive status LEDs (SPEED, SD/RD) for quick network diagnostics. Powered efficiently via the PLC bus connection at 24VDC with a low current consumption of 110mA, it requires no additional external power wiring. Manufactured in Japan and backed by global safety and quality certifications including cULus, CE, UKCA, KC, and EAC, the FX5-ENET/IP ensures top-tier performance and compliance for modern industrial control systems.
Technical Specifications:
- Brand: MITSUBISHI ELECTRIC
- Model: FX5-ENET/IP
- Product Type: Ethernet Communication Extension Module
- Compatibility: MELSEC iQ-F (FX5 Series) Programmable Controllers
- Supported Protocol: EtherNet/IP

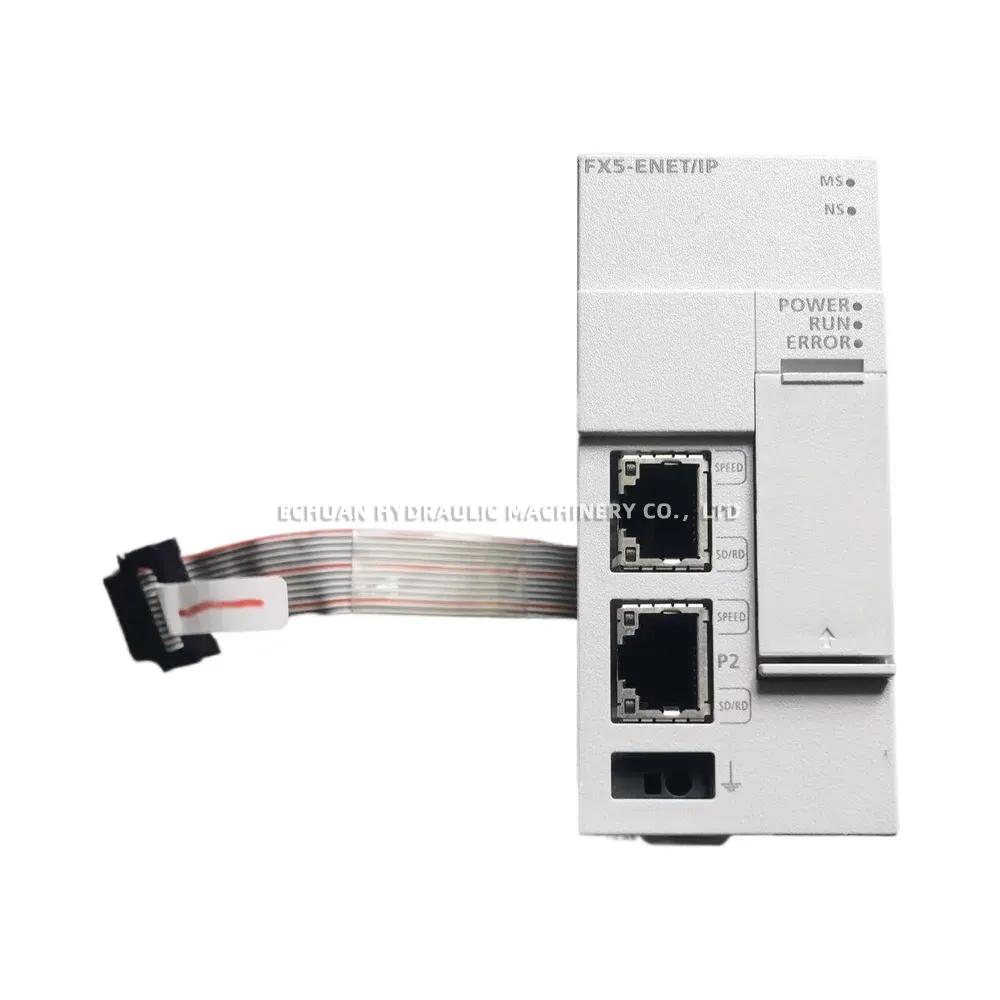

- Interfaces: Dual Ethernet Ports (P1, P2)
- Network Identification: Equipped with two unique MAC addresses
- Power Supply: 24VDC (Powered via internal bus connection)
- Current Consumption: 110mA
- Indicators: Status LEDs for SPEED and SD/RD
- Certifications: cULus Listed (Ind. Cont. Eq.), CE, UKCA, KC, EAC
- Country of Origin: Made in Japan
MITSUBISHI ELECTRIC FX5-ENET/IP Ethernet Communication Module
Upgrade your MELSEC iQ-F automation system with the Mitsubishi Electric FX5-ENET/IP module. Featuring dual ports, EtherNet/IP protocol support, and easy bus integration (24VDC/110mA), this module delivers seamless, high-speed, and reliable industrial network connectivity.
