Product Description

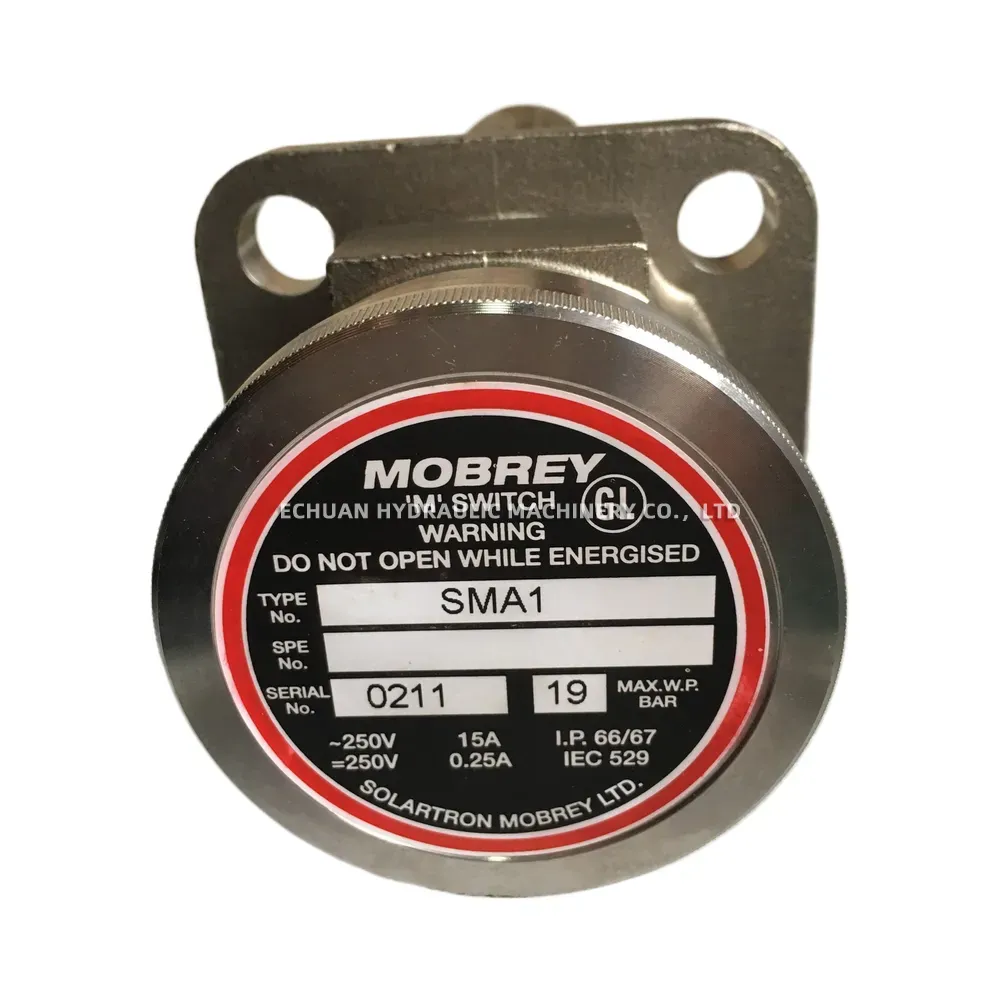

MOBREY SMA1 Vibrating Rod Level Switch

The Mobrey SMA1 is a robust and reliable vibrating rod point level switch designed for detecting high or low levels of bulk solids, powders, and granules. Its operating principle is based on a vibrating rod that changes its vibration frequency when covered by the process material. This change is detected by the electronics, triggering an output signal. The SMA1 is known for its simple installation, maintenance-free operation, and insensitivity to material build-up on the probe, making it suitable for a wide range of industrial applications including silos, hoppers, and bins in industries like food & beverage, plastics, chemicals, and building materials.

Technical Specifications:

Principle: Vibrating Rod
Media: Bulk Solids, Powders, Granules
Minimum Density: Typically 50 g/l (0.0018 lbs/in³) – application dependent
Process Temperature Range: -40°C to +150°C (-40°F to +302°F) – varies with model/options
Process Pressure Range: Typically up to 10 bar (145 psi) – varies with model/flange
Supply Voltage: Options including 20-253V AC (50/60Hz), 20-60V DC
Output: Relay (DPDT), PNP/NPN options available
Housing Material: Aluminium Alloy or Stainless Steel options
Wetted Parts Material: Stainless Steel (316L typically)
Process Connection: Threaded (e.g., G1, G1½, 1″ NPT, 1½” NPT) or Flanged options
Ingress Protection: IP66/IP67 typically
Approvals: Options for ATEX, IECEx hazardous area approvals available
