Product Description

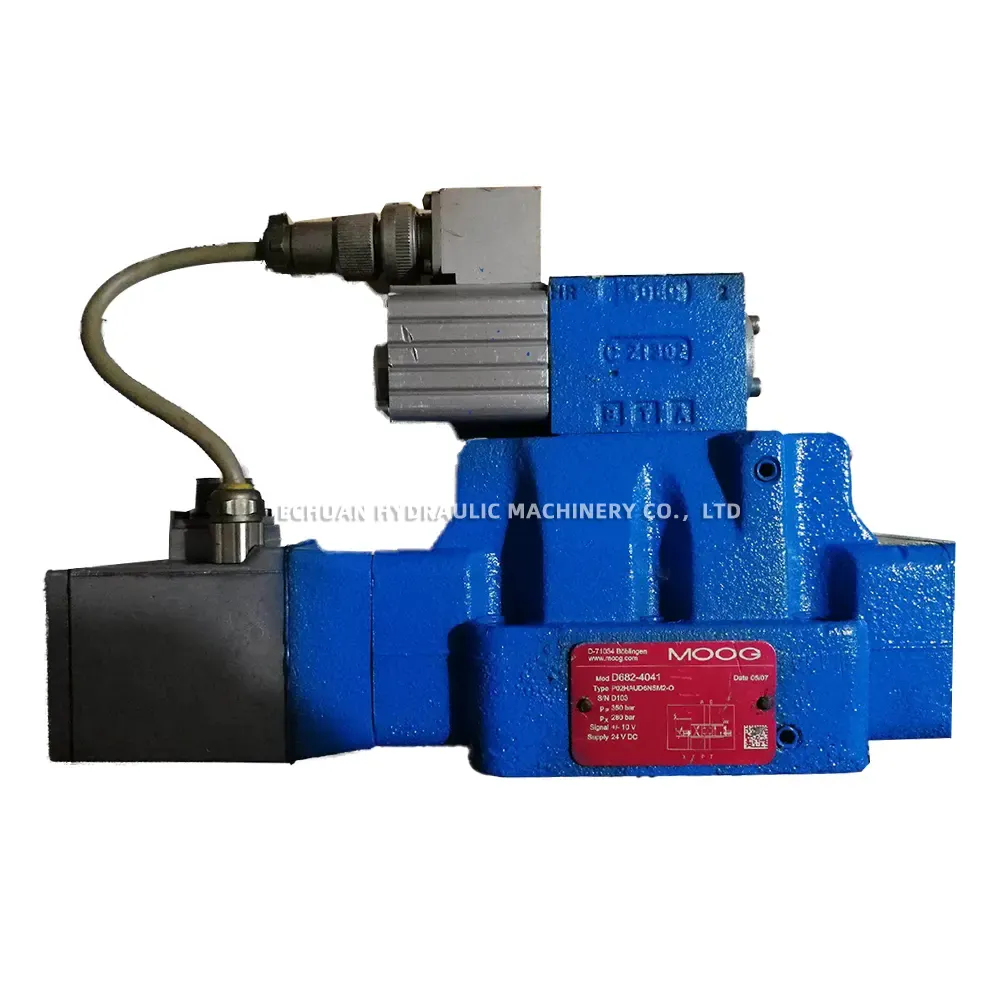

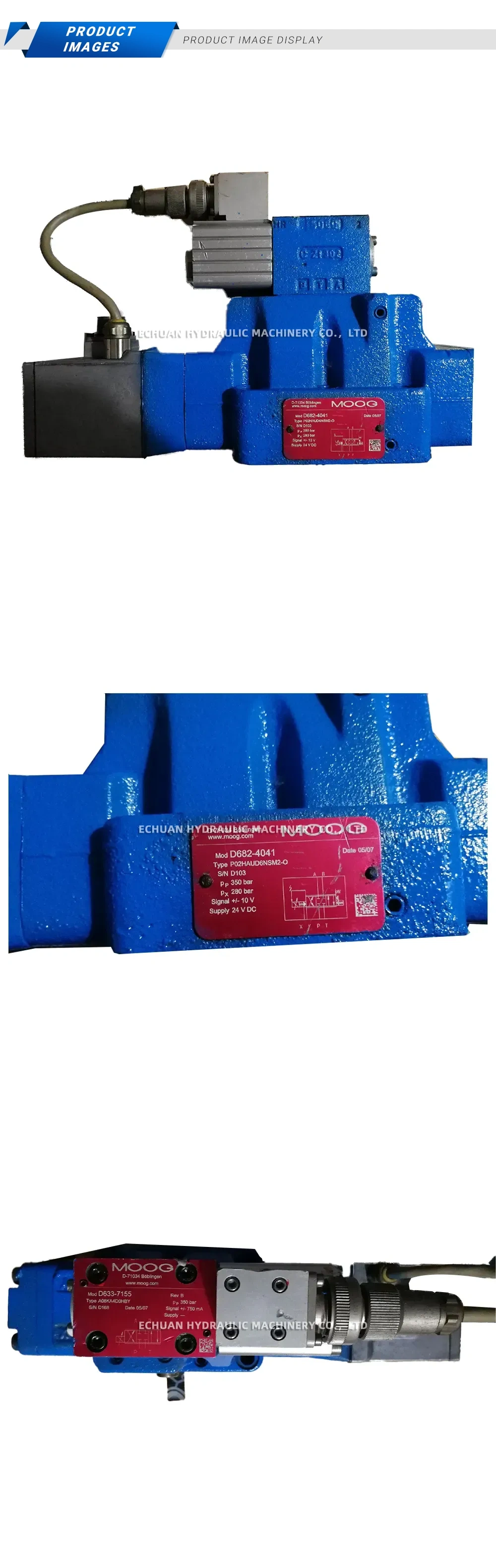

MOOG D682-4041 Hydraulic Servo-Proportional Control Valve
The MOOG D682-4041 is a high-performance, two-stage hydraulic servo-proportional control valve engineered for demanding industrial applications that require precise and dynamic fluid control. This complete valve assembly consists of a robust main stage (Model D682-4041, Type P02HAUD6NSM2-O) and a highly responsive pilot stage (Model D633-7155, Type A08KA4D0HBY). Designed to operate reliably under high pressure, the main stage handles a maximum operating pressure (Pp) of 350 bar and a pilot supply pressure (Px) of 280 bar, utilizing a +/- 10 V control signal and a standard 24 V DC power supply. The integrated pilot stage also supports up to 350 bar and operates via a precise +/- 750 mA control signal. Manufactured by MOOG in Böblingen, Germany, this servo-proportional valve ensures exceptional accuracy, durability, and seamless integration into complex electro-hydraulic automation systems.
Technical Specifications:
- Brand: MOOG
- Configuration: Two-stage hydraulic servo-proportional control valve assembly

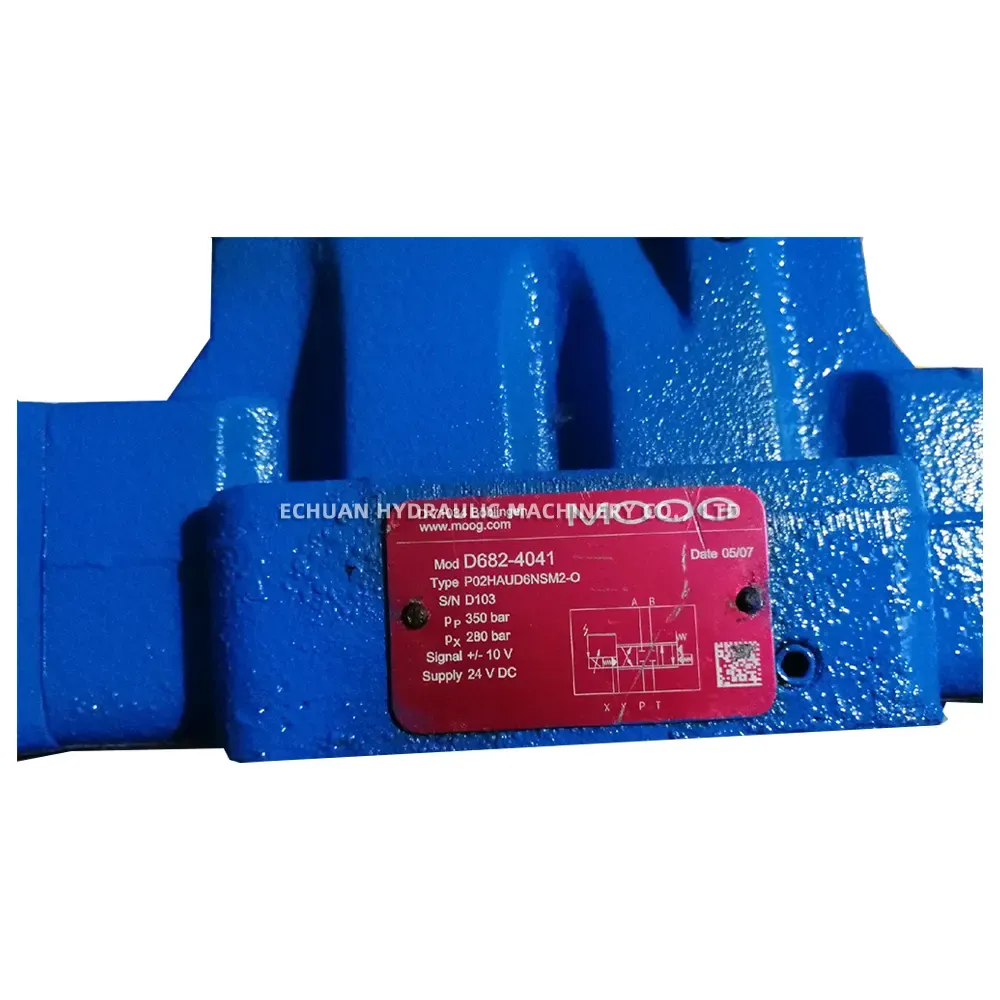

- Main Stage Model & Type: D682-4041 (Type P02HAUD6NSM2-O)
- Main Stage Max Pressure (Pp): 350 bar
- Main Stage Pilot Supply Pressure (Px): 280 bar
- Main Stage Control Signal: +/- 10 V
- Main Stage Supply Voltage: 24 V DC

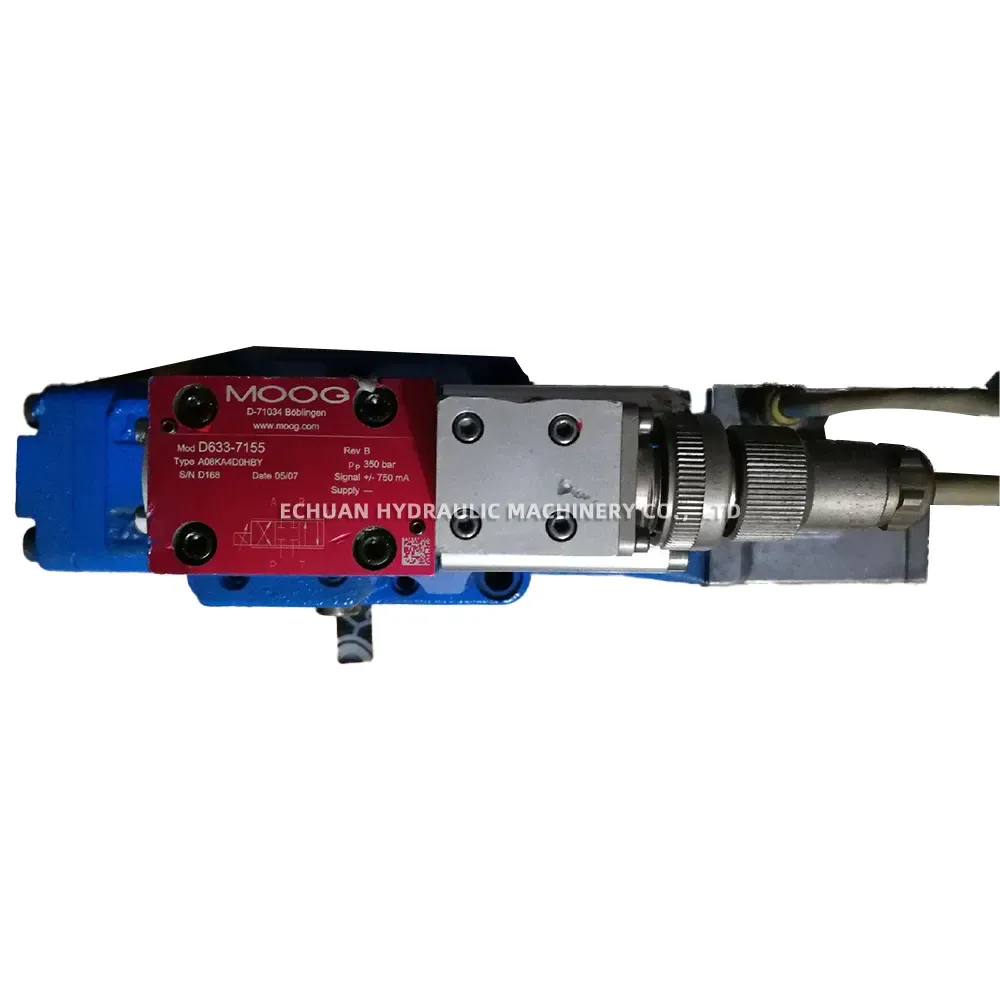

- Pilot Stage Model & Type: D633-7155 (Type A08KA4D0HBY, Rev B)
- Pilot Stage Max Pressure (Pp): 350 bar
- Pilot Stage Control Signal: +/- 750 mA
MOOG D682-4041 Hydraulic Servo-Proportional Control Valve
Optimize your industrial electro-hydraulic systems with the genuine MOOG D682-4041 Two-Stage Hydraulic Servo-Proportional Valve. Featuring a 350 bar maximum pressure rating, 24V DC supply, and an integrated D633-7155 pilot stage, this valve delivers unmatched precision, responsiveness, and reliability for heavy-duty fluid control applications.
