Product Description
MOXA EDS-208A

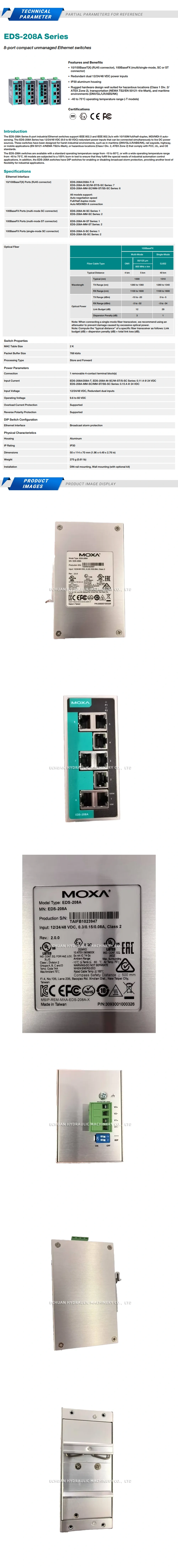

The MOXA EDS-208A series are 8-port unmanaged industrial Ethernet switches designed for reliable performance in harsh environments. These entry-level switches support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing an economical solution for your industrial Ethernet connections. The EDS-208A series features a rugged IP30-rated metal housing, redundant power inputs, and a configurable broadcast storm protection feature, making it a robust and dependable choice for industrial automation and control applications. Its compact size allows for easy installation on a DIN-rail or in a distribution box.
Technical Specifications:
- Ethernet Ports: 8 x 10/100BaseT(X) ports (RJ45 connector)
- Input Voltage: 12/24/48 VDC, redundant dual inputs
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Housing: Metal, IP30 protection
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
- Special Features: Broadcast storm protection (enabled by DIP switch)
MOXA EDS-208A
The MOXA EDS-208A is a rugged, 8-port unmanaged industrial Ethernet switch with a durable metal housing, redundant power inputs, and DIN-rail mounting for reliable network connectivity in harsh industrial environments.
| Brand | MOXA |
|---|---|
| Model | EDS-208A |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/moxa-eds-208a |
