Product Description

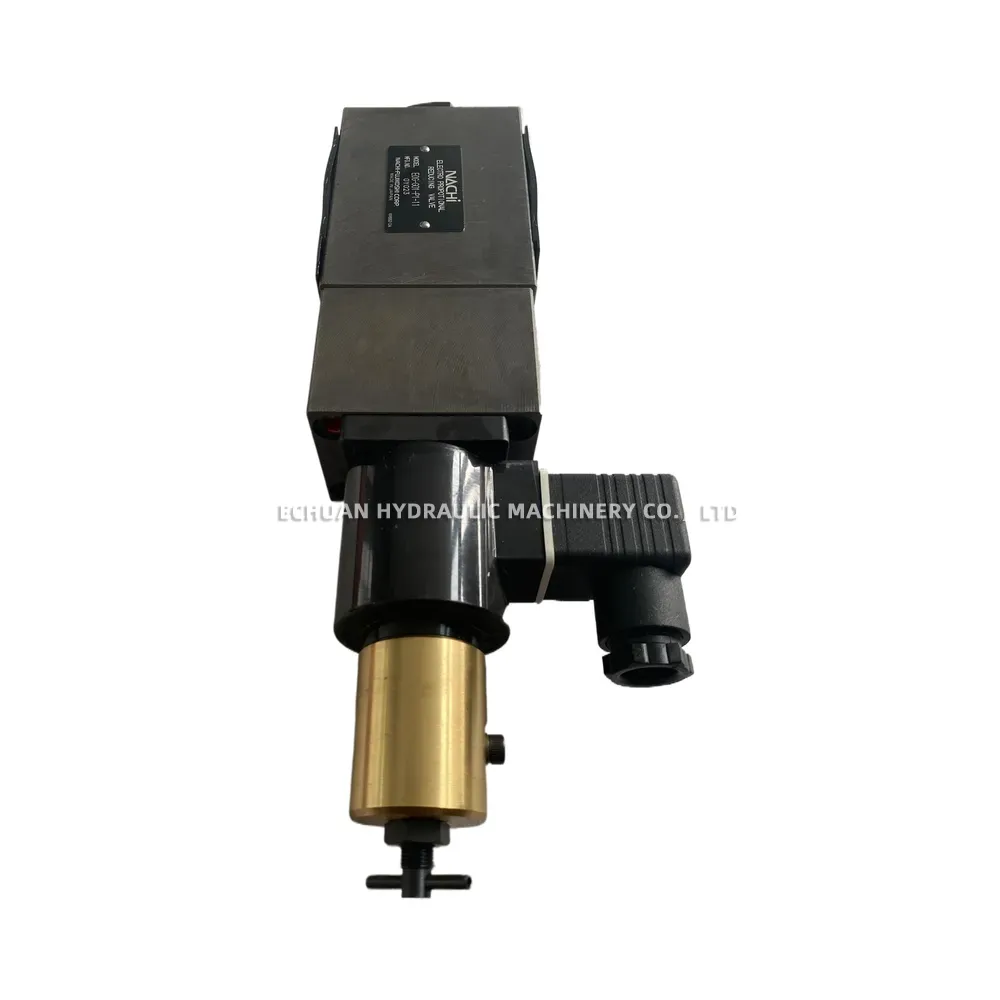

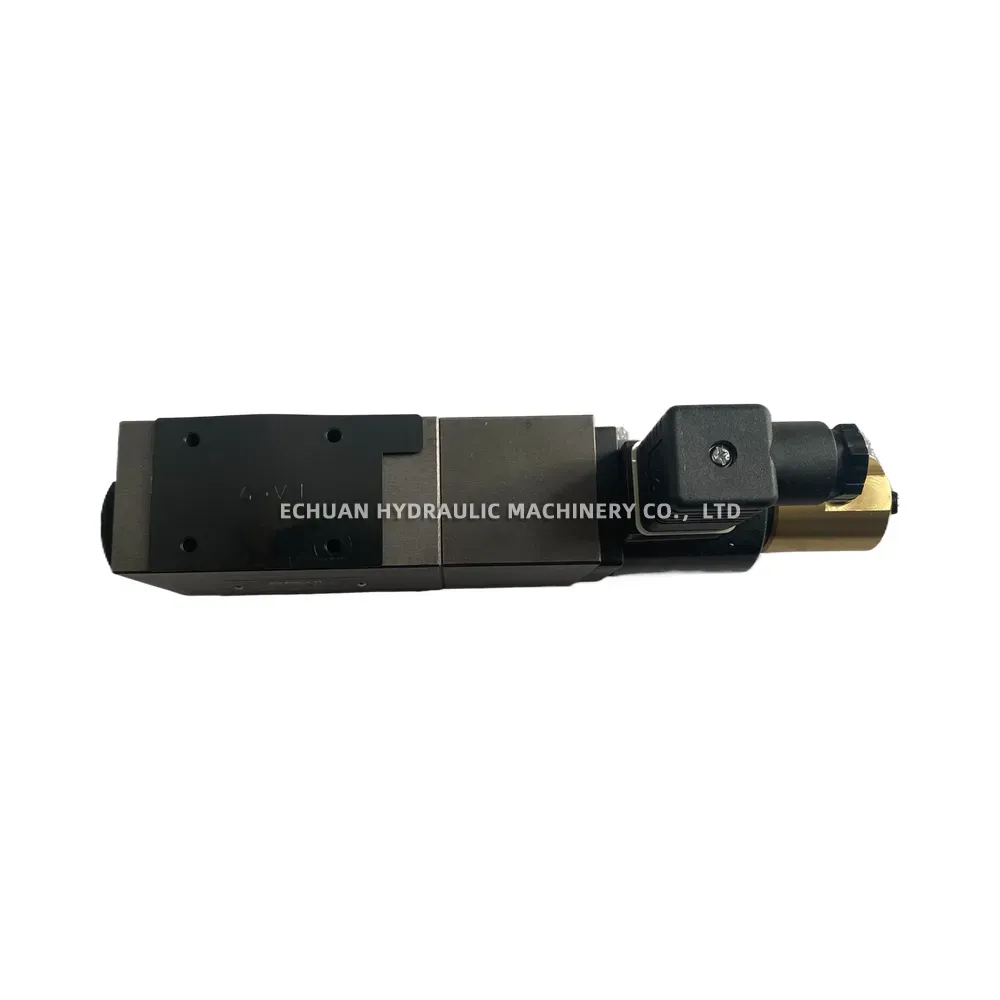

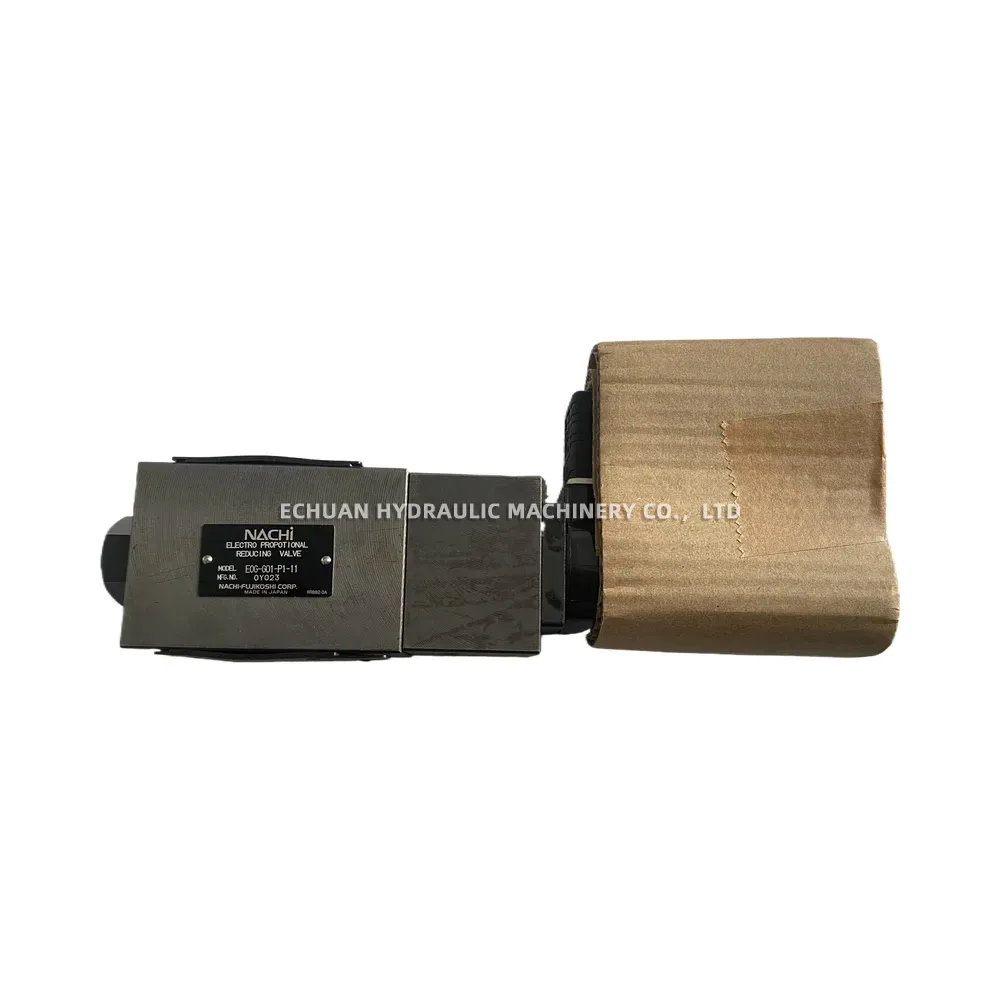

NACHI EOG-G01-P1-11
The NACHI EOG-G01-P1-11 is a high-reliability, wet-type solenoid operated directional control valve designed for industrial hydraulic applications. As part of the EOG-G01 series, it adheres to the widely recognized G01 (NG6 / CETOP 3 / D03) mounting standard, ensuring easy integration and interchangeability. This specific model features a single solenoid with spring offset operation and a ‘P1’ spool configuration, where ports P are connected to T, and A & B are blocked in the neutral position, with port B energized when the solenoid is activated. Its robust construction and wet armature solenoid design contribute to a long service life and quiet operation, making it suitable for controlling fluid direction in various hydraulic circuits.
Technical Specifications:
- Model Number: EOG-G01-P1-11
- Valve Type: Solenoid Operated Directional Control Valve
- Series: EOG-G01
- Mounting Standard: ISO 4401-03-02-0-94 (NG6 / CETOP 3 / NFPA D03)
- Valve Size: G01 (6mm Nominal Port Diameter)
- Spool Type Code: P1 (P->T, A&B Blocked Center, Spring Offset, Port B Energized)
- Actuation: Single Solenoid, Spring Offset
- Solenoid Voltage Code: 11 (AC100V 50/60Hz, AC110V 60Hz)
- Electrical Connection: DIN Connector (DIN 43650 Form C)
- Maximum Operating Pressure: 35 MPa (350 bar / 5075 PSI)
- Maximum Flow Rate: Approx. 63 L/min (16.6 GPM)
- Solenoid Type: Wet Armature
- Fluid Type: Petroleum-based hydraulic fluids, Water Glycol fluids, Phosphate Ester fluids (check seals compatibility)
NACHI EOG-G01-P1-11
Model:NACHI EOG-G01-P1-11
| Brand | Nachi |
|---|---|
| Model | EOG-G01-P1-11 |
| Part No. | NACHI EOG-G01-P1-11 |
| Category | Hydraulic valves |
