Product Description

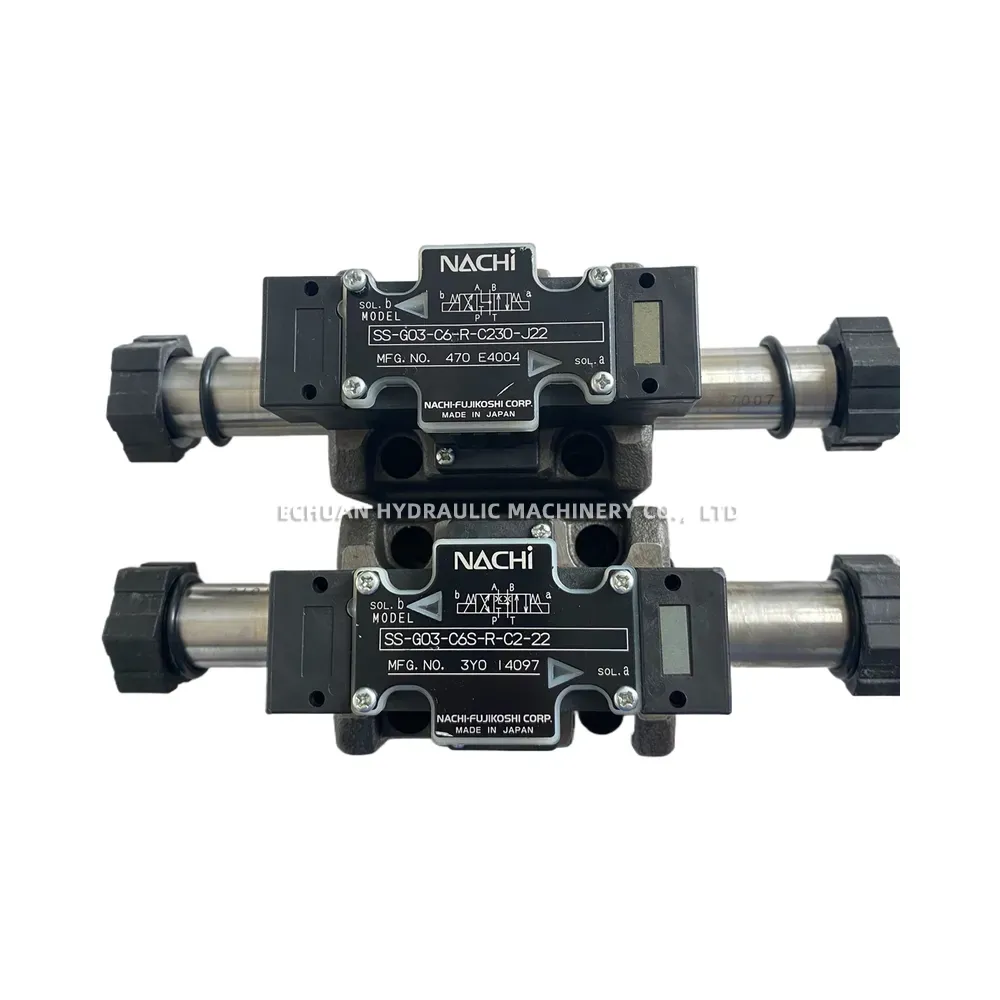

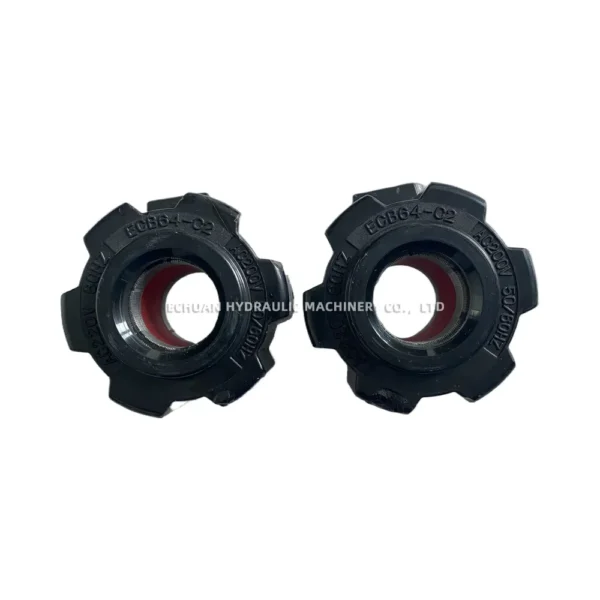

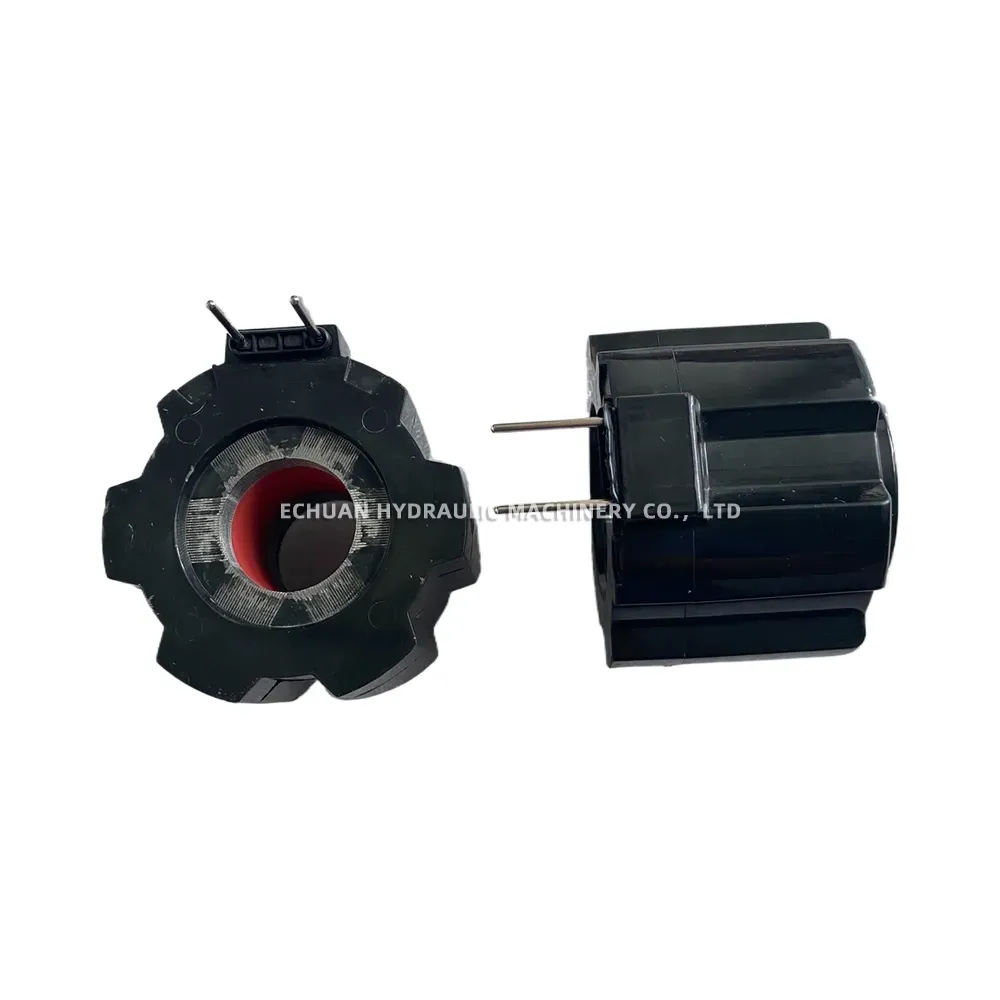

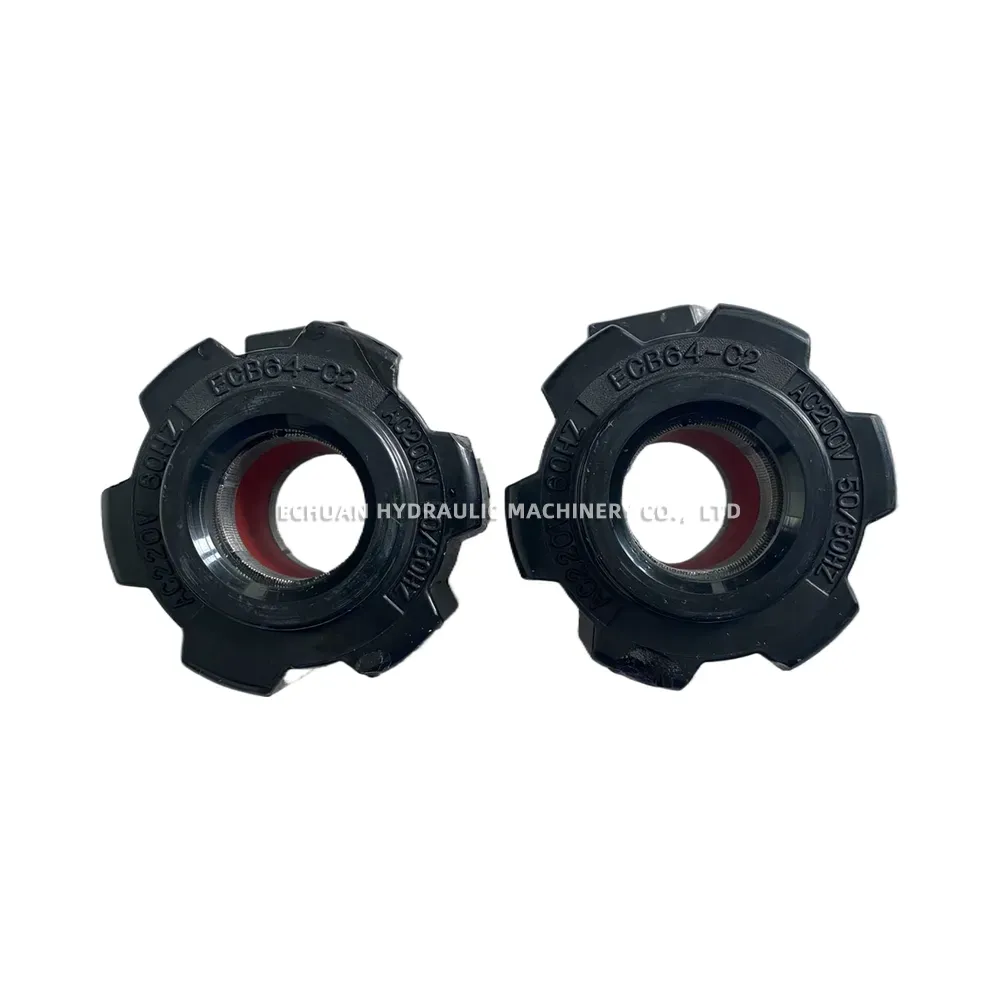

NACHI SS-G03-C6-R-C230-J22 Solenoid Operated Directional Control Valve

The NACHI SS-G03-C6-R-C230-J22 is a high-performance wet-type solenoid operated directional control valve designed for industrial hydraulic applications. Belonging to the SS-G03 series, it conforms to the NG10 (D05) mounting standard. This model features a C6 closed-center spool configuration, ensuring all ports are blocked in the neutral position, and utilizes a spring return mechanism (R) to reset the spool. It operates on AC230V (50/60Hz) power, indicated by the C230 code, and includes a DIN type connector with an indicator light (J22) for easy electrical connection and status monitoring. These valves are known for their reliability, high pressure and flow capabilities, and low pressure drop, making them suitable for controlling the direction of fluid flow in various hydraulic circuits.

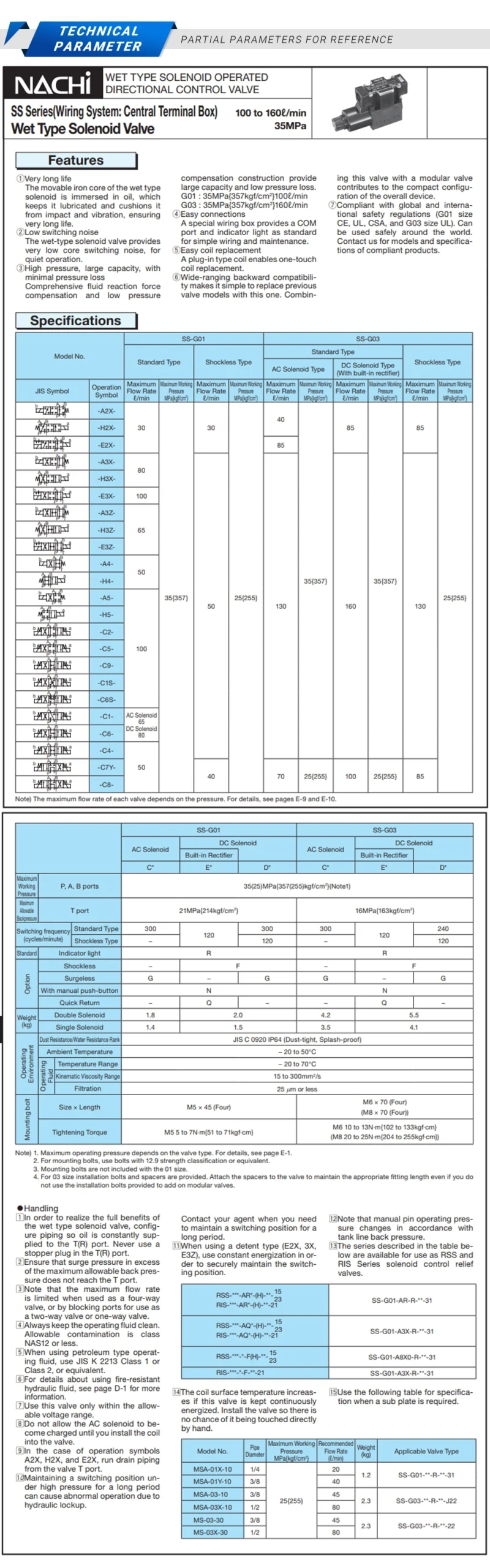

Technical Specifications:

Model Series: SS-G03
Valve Size: NG10 / CETOP 05 / NFPA D05
Mounting Standard: ISO 4401-05-04-0-94
Spool Type: C6 (Closed Center)
Return Type: R (Spring Return)
Actuation: Single Solenoid
Solenoid Voltage: C230 (AC230V 50/60Hz)
Electrical Connection: J22 (DIN 43650 Connector with Indicator Light)
Maximum Operating Pressure (P, A, B ports): 31.5 MPa (4570 PSI)
Maximum Operating Pressure (T port): 16 MPa (2320 PSI)
Maximum Flow Rate: 120 L/min (31.7 US GPM)
Hydraulic Fluid: Petroleum-based oil, water glycol fluid, phosphate ester fluid (check seals for compatibility)
Protection Class: IP65 (with appropriate connector installed)
