Product Description

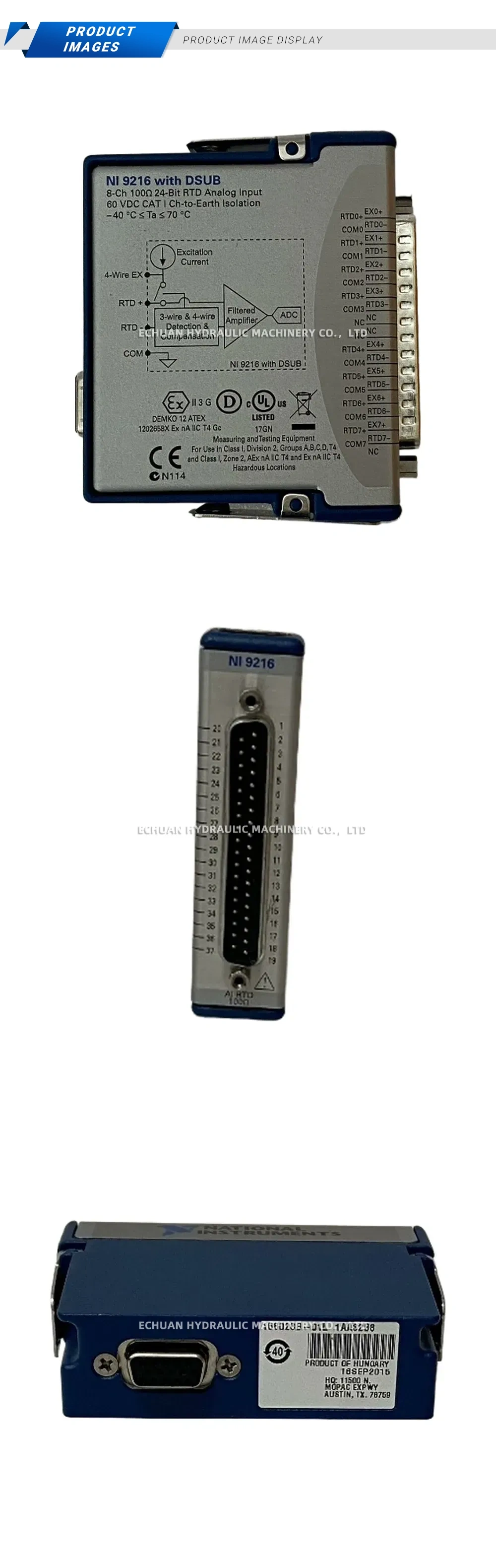

National Instruments 9216
The National Instruments 9216 is a C Series RTD Analog Input Module designed for high-accuracy temperature measurements. It features 8 channels with 24-bit resolution, providing precise data for a wide range of Resistance Temperature Detectors (RTDs). The NI 9216 includes built-in signal conditioning and a 10-position screw-terminal connector for direct sensor connection. Its robust design, wide operating temperature range, and channel-to-earth ground isolation make it ideal for demanding industrial applications within CompactDAQ or CompactRIO systems, ensuring reliable performance in harsh environments.
Technical Specifications:
- Number of Channels: 8 analog input channels
- ADC Resolution: 24-bit
- Maximum Aggregate Sample Rate: 400 S/s
- Supported RTD Types: Pt100, Pt200, Pt500, Pt1000, and custom RTDs
- Input Connection: 10-position screw terminal
- Operating Temperature Range: -40 °C to 70 °C
- Isolation: 250 Vrms channel-to-earth ground isolation
National Instruments 9216
The NI 9216 is an 8-channel, 24-bit C Series module for high-accuracy RTD temperature measurements, designed for use with CompactDAQ and CompactRIO systems.
