Product Description

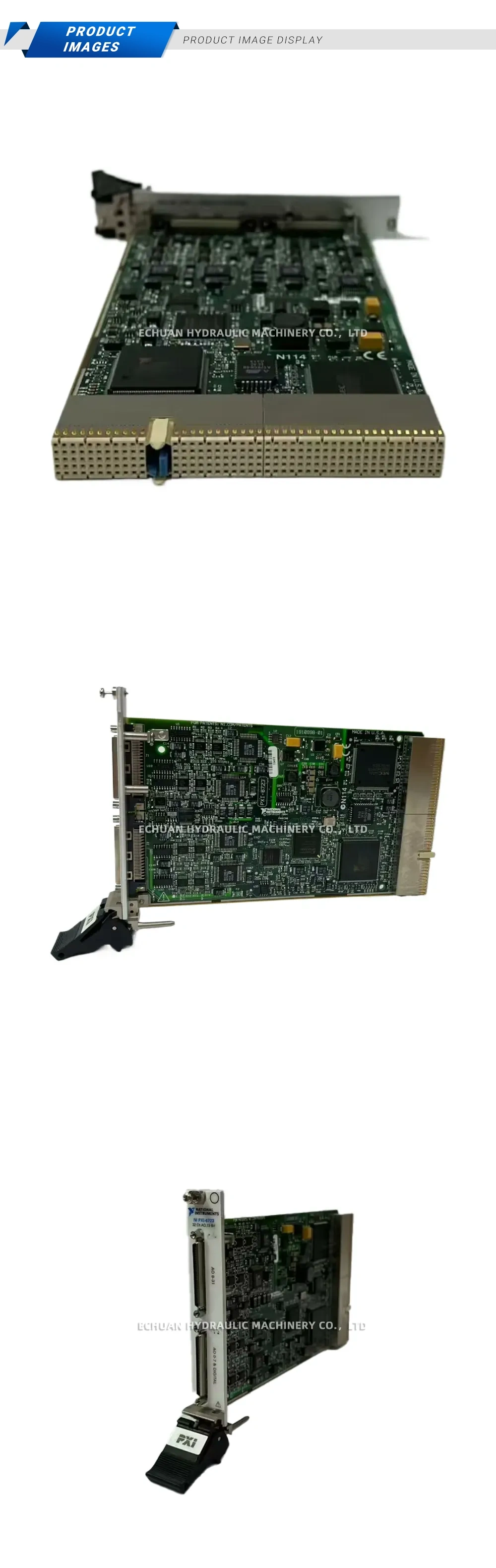

National Instruments PXI-6723
The National Instruments PXI-6723 is a high-density analog output module designed for the PXI platform. It provides 32 channels of 13-bit analog voltage output, making it an excellent choice for applications requiring a large number of DC or dynamic voltage sources. This module is ideal for stimulus-response tests, hardware-in-the-loop (HIL) simulations, and high-channel-count control systems. With a maximum aggregate update rate of 800 kS/s and an output range of ±10 V, the PXI-6723 delivers reliable and precise waveform generation capabilities. It also includes eight 5V TTL/CMOS digital I/O lines and two 24-bit counters/timers for added flexibility in test and measurement setups.
Technical Specifications:
- Module Type: Analog Output Module
- Number of Channels: 32 single-ended analog outputs
- Resolution: 13-bit
- Maximum Update Rate: 800 kS/s (1 channel), 31.25 kS/s/ch (32 channels)
- Output Voltage Range: ±10 V
- Output Current Drive: ±5 mA per channel
National Instruments PXI-6723
The National Instruments PXI-6723 is a high-density, 32-channel, 13-bit analog output module for PXI systems, delivering precise voltage outputs for simulation, control, and test applications.
