Product Description

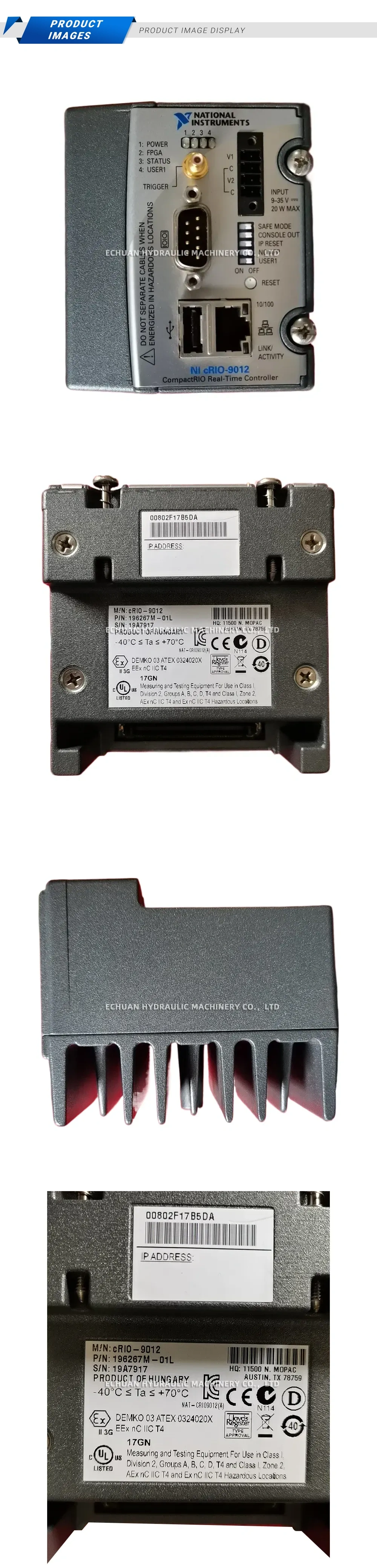

National Instruments cRIO-9012 CompactRIO Real-Time Controller
The National Instruments cRIO-9012 is a robust, high-performance CompactRIO real-time controller engineered for advanced embedded control, monitoring, and data acquisition applications. Designed to withstand harsh industrial environments, it features an extended operating temperature range of -40°C to +70°C and is strictly certified for use in Class I, Division 2 and ATEX Zone 2 hazardous locations. The cRIO-9012 provides seamless connectivity and system integration through its 10/100 Ethernet port, USB interface, RS232 console port, and built-in SMA connectors for precise trigger and clock signals. Equipped with integrated DIP switches for easy configuration (including Safe Mode and IP Reset) and a reliable 9-35 V DC power input, this industrial controller delivers the flexibility, determinism, and durability required for mission-critical automation systems.
Technical Specifications:
- Brand: National Instruments
- Model: cRIO-9012 (Part Number: 196267M-01L)
- Power Input: 9-35 V DC (20 W max)
- Communication Interfaces: 10/100 Base-TX Ethernet, USB, RS232 Console Port
- Operating Temperature: -40°C to +70°C (-40°C <= Ta <= +70°C)

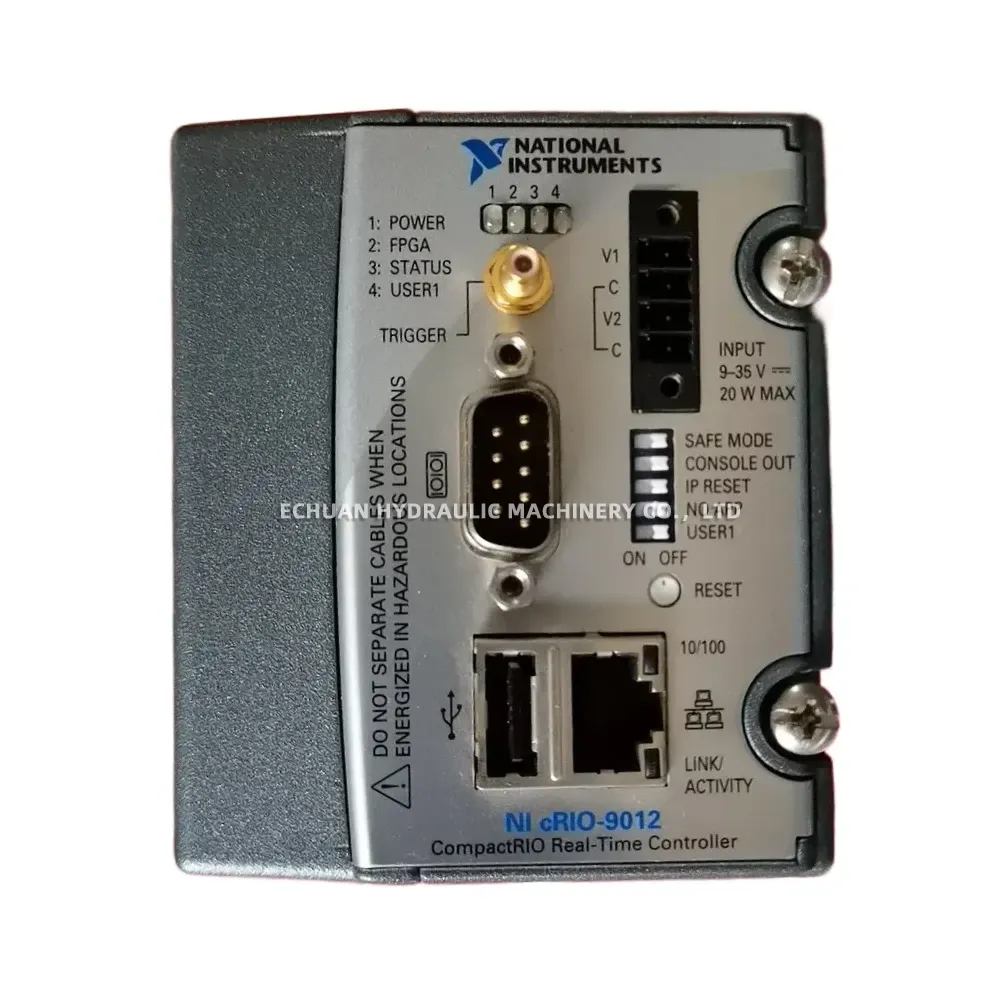

- Hardware Features: SMA connectors for trigger and clock signals, Configuration DIP switches (Safe Mode, IP Reset, etc.)

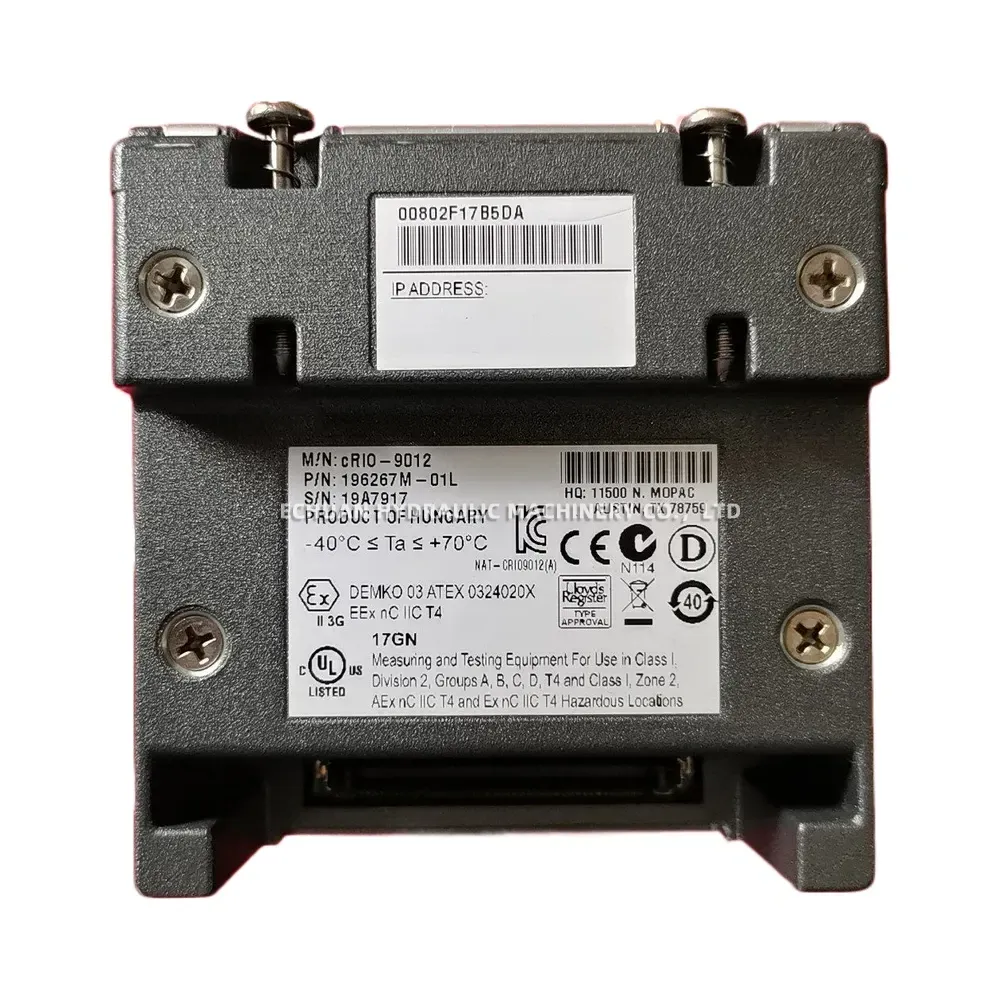

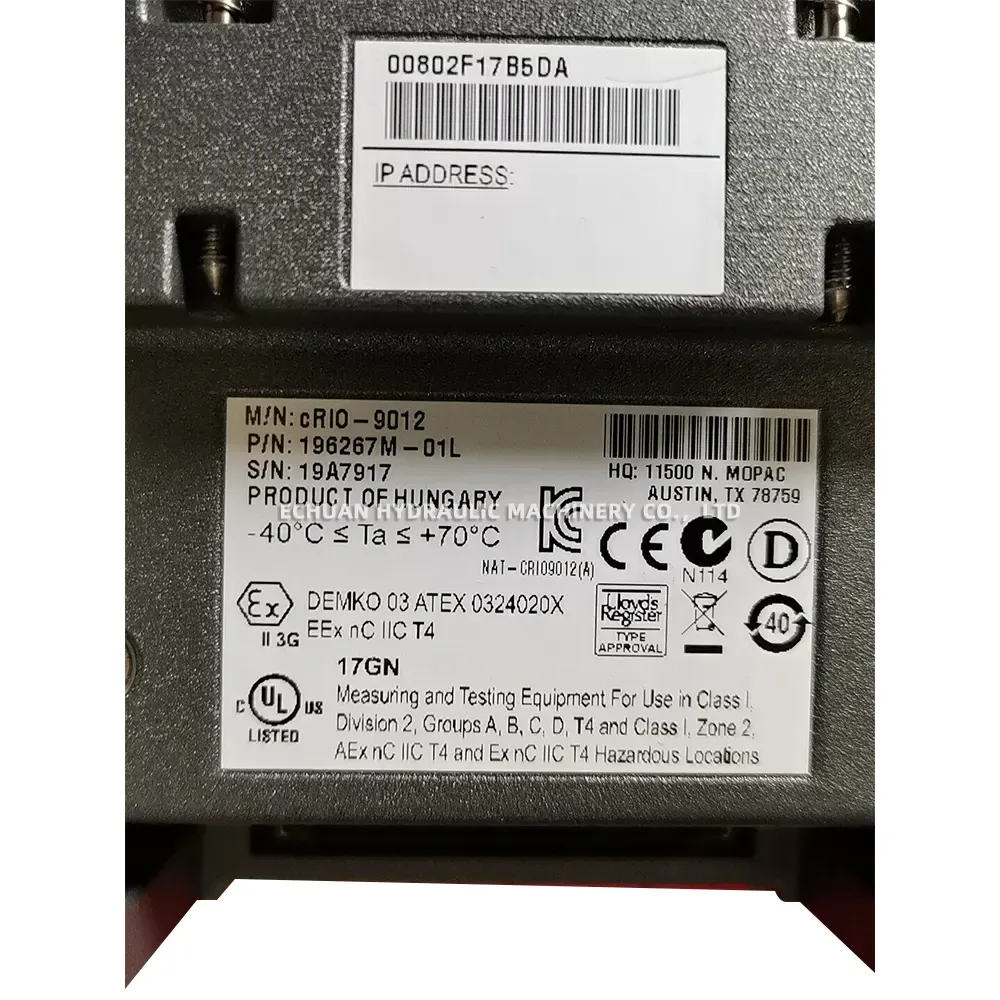

- Hazardous Location Certifications: Class I, Division 2, Groups A, B, C, D, T4; Class I, Zone 2, AEx nC IIC T4 and Ex nC IIC T4
- ATEX Certification: DEMKO 03 ATEX 032402X (EEx nC IIC T4, II 3G)
National Instruments cRIO-9012 CompactRIO Real-Time Controller
Shop the National Instruments cRIO-9012 CompactRIO Real-Time Controller. This rugged, embedded industrial controller features 10/100 Ethernet, USB, and RS232 connectivity, a wide -40°C to +70°C operating range, and Class I Div 2 / ATEX Zone 2 certifications. Ideal for reliable data logging and mission-critical automated control in harsh environments.
