Product Description

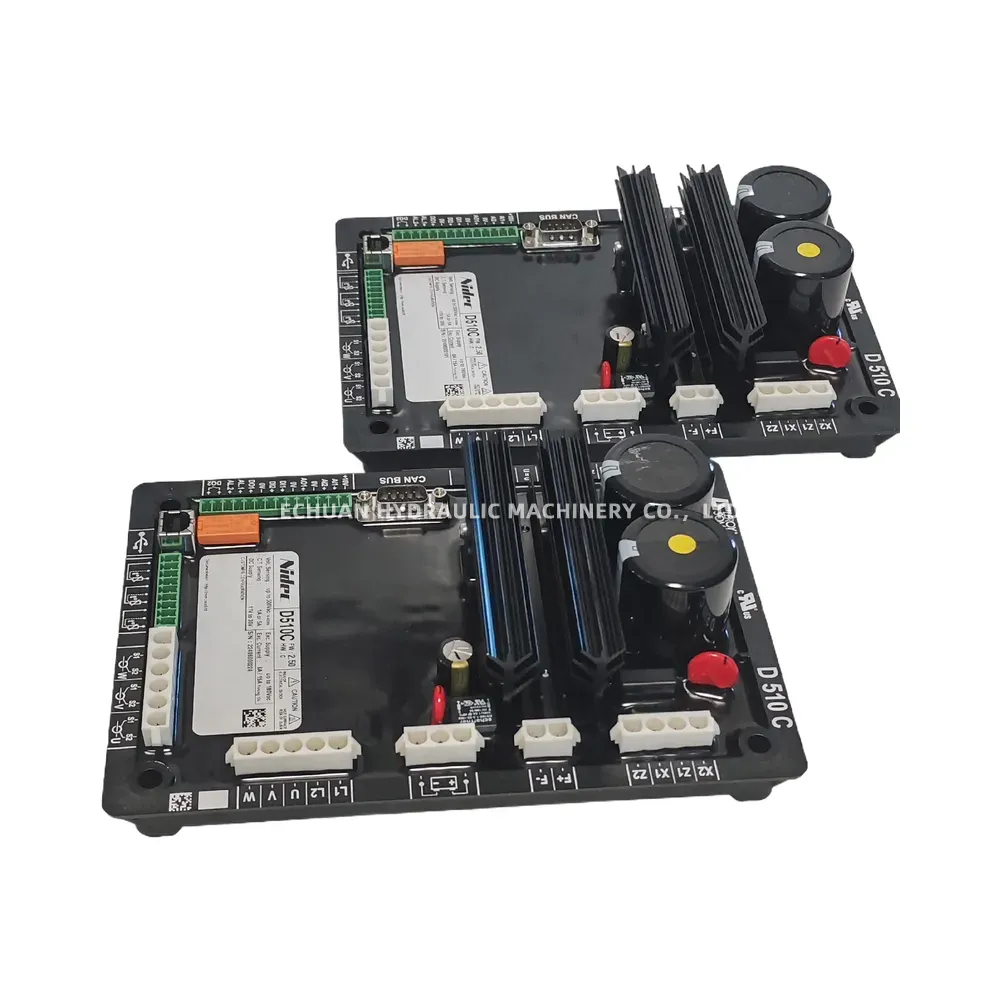

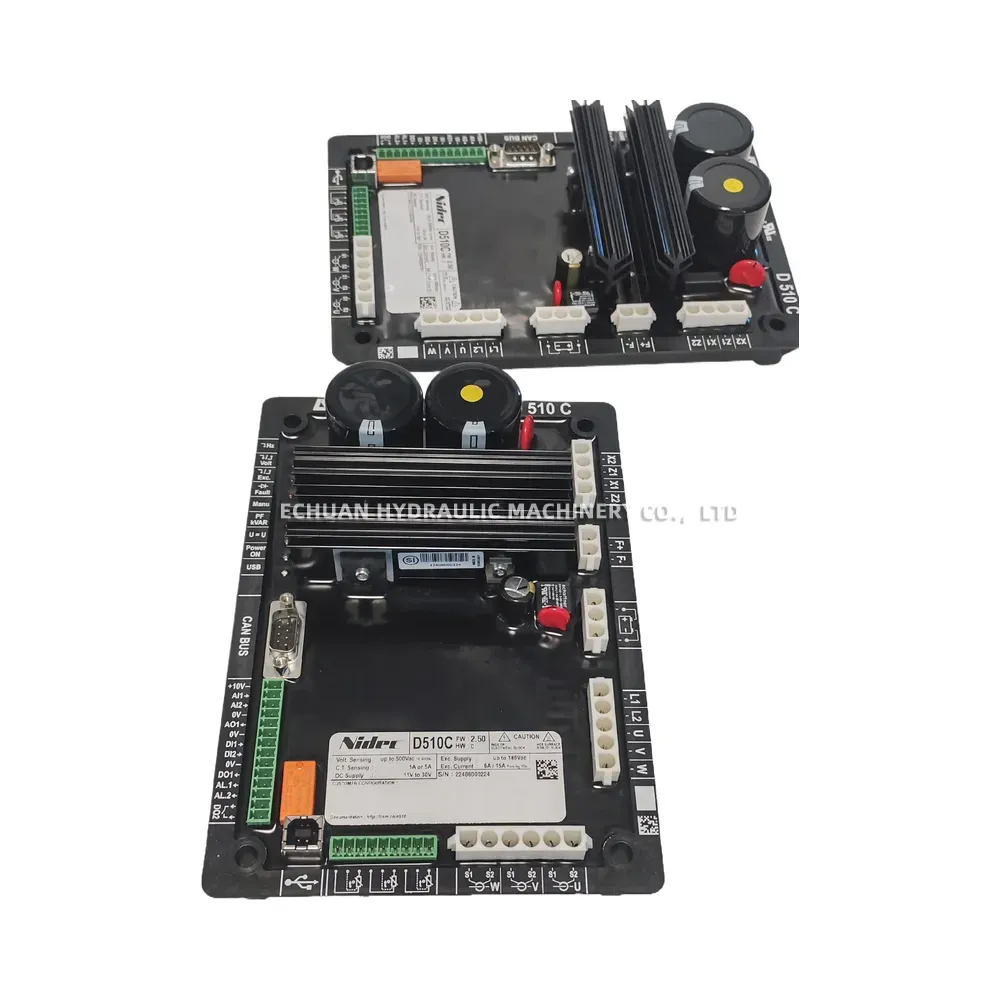

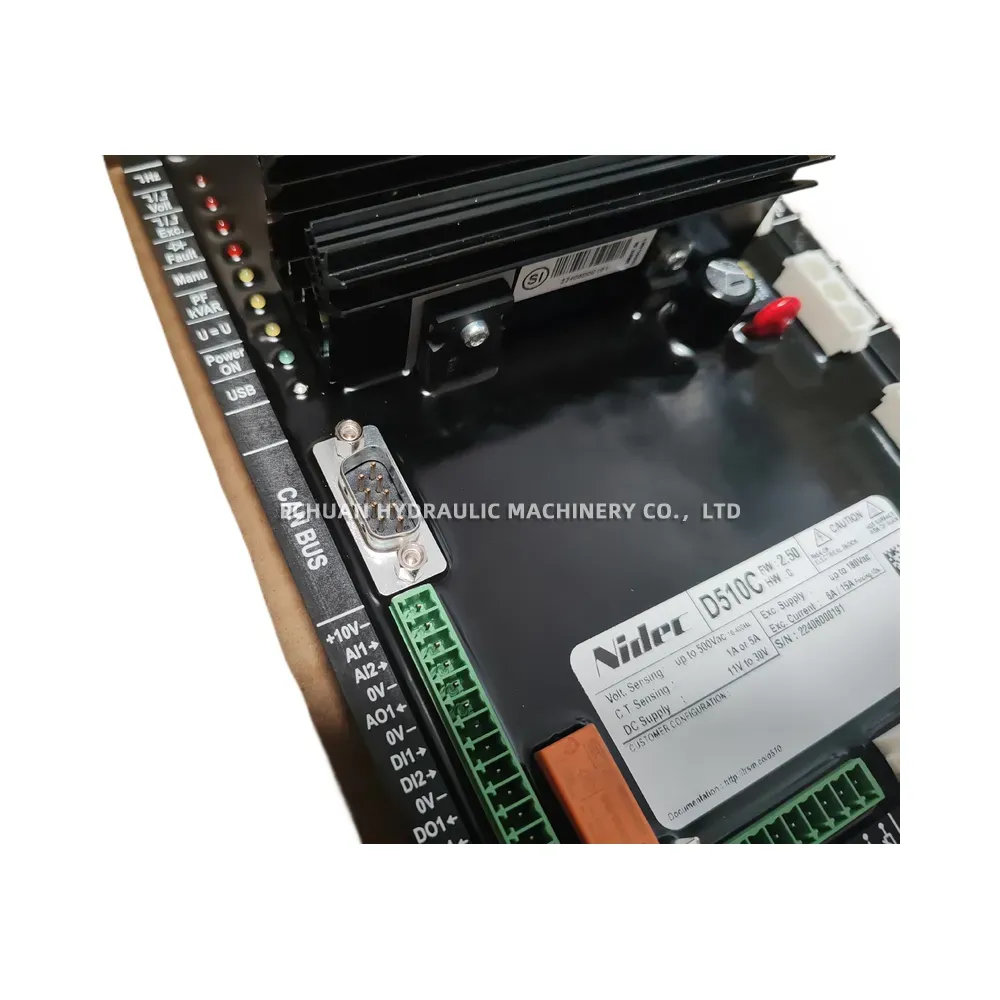

Nidec D510C Digital Voltage Regulator (AVR)
The Nidec D510C is a highly advanced digital Automatic Voltage Regulator (AVR) designed for optimal performance with synchronous alternators. Engineered for precision and reliability, this digital regulator offers comprehensive control, monitoring, and protection for generator systems. It features versatile voltage sensing up to 500Vac across a wide frequency range (4-400Hz) and supports both 1A and 5A CT sensing. With an excitation supply of up to 180Vac and robust continuous current delivery of 6A (up to 15A peak), the D510C ensures stable power generation. Additionally, it is equipped with modern connectivity options including CAN Bus communication, a USB interface, and multiple analog and digital I/O terminals, making it an ideal choice for complex industrial power applications and seamless system integration.
Technical Specifications:
- Brand: Nidec
- Model: D510C
- Hardware / Firmware: HW: C / FW: 2.50
- Voltage Sensing: Up to 500Vac (4-400Hz)
- C.T Sensing: 1A or 5A
- Excitation Supply: Up to 180Vac
- DC Supply: 11V to 30V
- Excitation Current: 6A continuous / 15A peak
- Interfaces: CAN Bus, USB, multiple analog/digital I/O terminals
Nidec D510C Digital Voltage Regulator (AVR)
Optimize your synchronous alternators with the Nidec D510C Digital Voltage Regulator (AVR). Delivering precise voltage sensing up to 500Vac, robust 6A continuous excitation, and advanced CAN Bus/USB connectivity, this OEM digital AVR ensures maximum generator stability and reliable industrial power control.
