Product Description

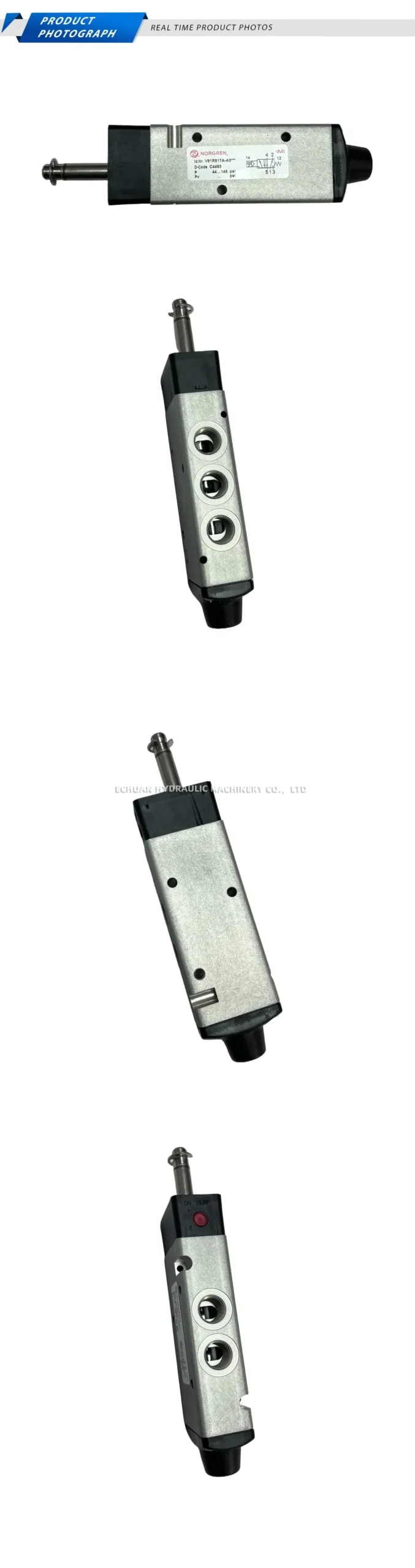

Norgren V81R517A-A3 C4483
The Norgren V81R517A-A3 C4483 is a direct-acting solenoid poppet valve from the V81 series, designed for robust and reliable performance in various industrial applications. This 3/2 way normally closed (NC) valve features G1/8 port connections and a durable brass body. It is engineered for controlling compressed air or other neutral gases, offering precise on/off operation. Typically equipped with a 24V DC coil, this valve is a common choice for automation systems requiring compact and efficient fluid control solutions.
Technical Specifications:
- Product Series: V81
- Valve Type: Direct Acting Solenoid Poppet Valve
- Function: 3/2 Way, Normally Closed (NC)
- Port Connection: G1/8 (BSPP)
- Body Material: Brass
- Seal Material: NBR (Nitrile)
- Operating Medium: Filtered compressed air (lubricated or non-lubricated), neutral gases
- Operating Pressure Range: 0 – 10 bar (0 – 145 psi) (typical for 1.6mm orifice with 4.8W coil configuration)
- Nominal Flow (Kv): Approximately 0.75 l/min (corresponding to 1.6mm orifice)
- Coil Voltage: 24V DC
- Typical Coil Power: 4.8W (Note: 2W option also exists for ‘A3’ coils, affecting pressure rating)
- Electrical Connection: Requires DIN 43650 Form B or C connector (sold separately)
- Ambient Temperature Range: -10°C to +50°C (for standard coil)
- Media Temperature Range: -10°C to +80°C (with NBR seals)
- IP Rating: IP65 (achieved with correctly fitted and sealed connector)
Norgren V81R517A-A3 C4483
Model：Norgren V81R517A-A3 C4483
| Brand | Norgren |
|---|---|
| Model | V81R517A-A3 C4483 |
| Part No. | Norgren V81R517A-A3 C4483 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/norgren-v81r517a-a3-c4483 |
