Product Description

OMRON 3G3JV-A2002

The OMRON 3G3JV-A2002 is a compact and user-friendly inverter from the JV series, designed for simple and reliable speed control of small AC motors. This variable frequency drive (VFD) is ideal for standalone applications, featuring an easy-to-use interface with a built-in potentiometer for straightforward frequency adjustments. Its space-saving design and sine-wave PWM control ensure smooth and efficient motor operation, making it a cost-effective solution for applications such as small conveyors, fans, and pumps where basic speed regulation is required.

Technical Specifications:

  • Input Voltage: Single-phase 200-240 VAC, 50/60 Hz

  • Applicable Motor Capacity: 0.2 kW (1/4 HP)

  • Rated Output Current: 1.4 A

  • Control Method: Sine-wave PWM control

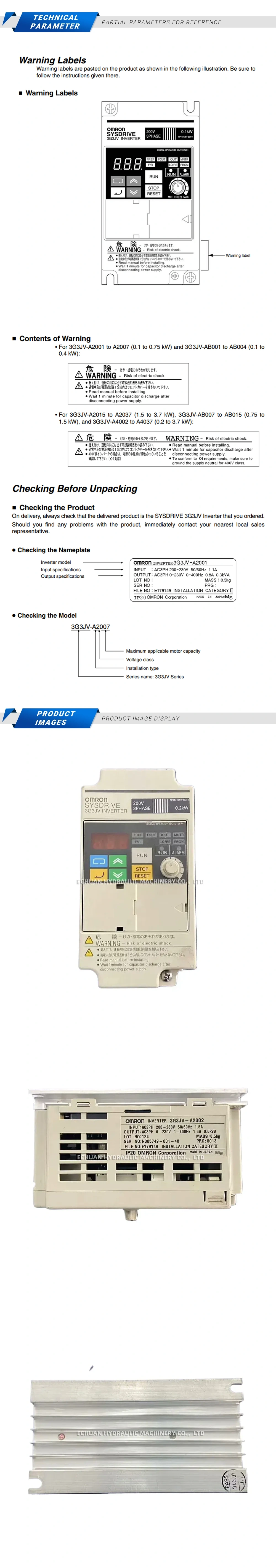

OMRON 3G3JV-A2002 Description

OMRON 3G3JV-A2002

Discover the OMRON 3G3JV-A2002, a compact 0.2 kW single-phase inverter. This reliable and user-friendly VFD provides precise speed control for small AC motors in various industrial applications.
