Product Description

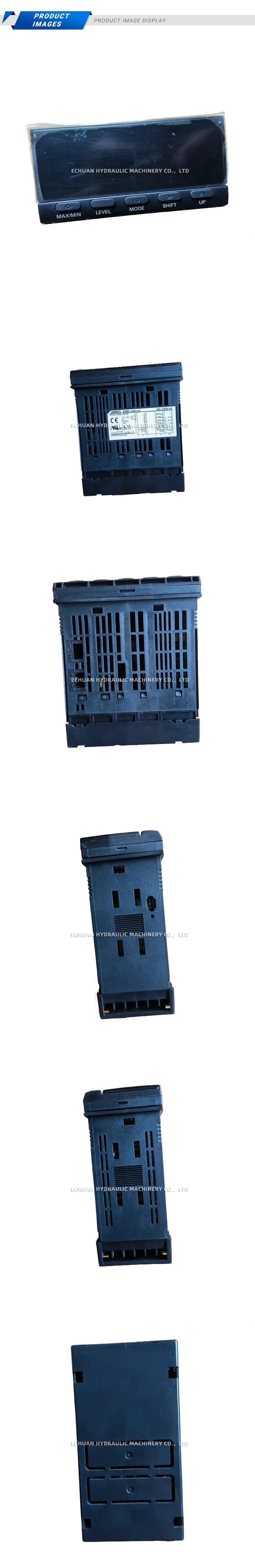

Omron K3HB-XAD-A1
The Omron K3HB-XAD-A1 is a high-performance digital process meter designed for accurately measuring and displaying DC voltage and current signals. It features a large, easy-to-read, two-color (red/green) LCD display that can change color based on the status of the outputs, providing an immediate visual indication of process conditions. This versatile panel meter is ideal for a wide range of industrial applications, including monitoring pressure, flow, temperature, and level, by scaling standard process signals like 4-20 mA or 1-5 V into user-friendly engineering units. With its simple setup and robust design, the K3HB-XAD-A1 offers a reliable solution for process visualization and control.
Technical Specifications:
- Model: K3HB-XAD-A1
- Product Type: Digital Process Panel Meter
- Input Signal: DC Voltage (e.g., 1-5V, 0-10V) / DC Current (e.g., 4-20mA, 0-20mA)
- Power Supply: 100 to 240 VAC
- Display: 5-Digit, Negative Transmissive LCD with Red/Green Backlight
- Outputs: Relay Outputs (Comparative)
- Dimensions (H x W): 48 x 96 mm (1/8 DIN)
