Product Description

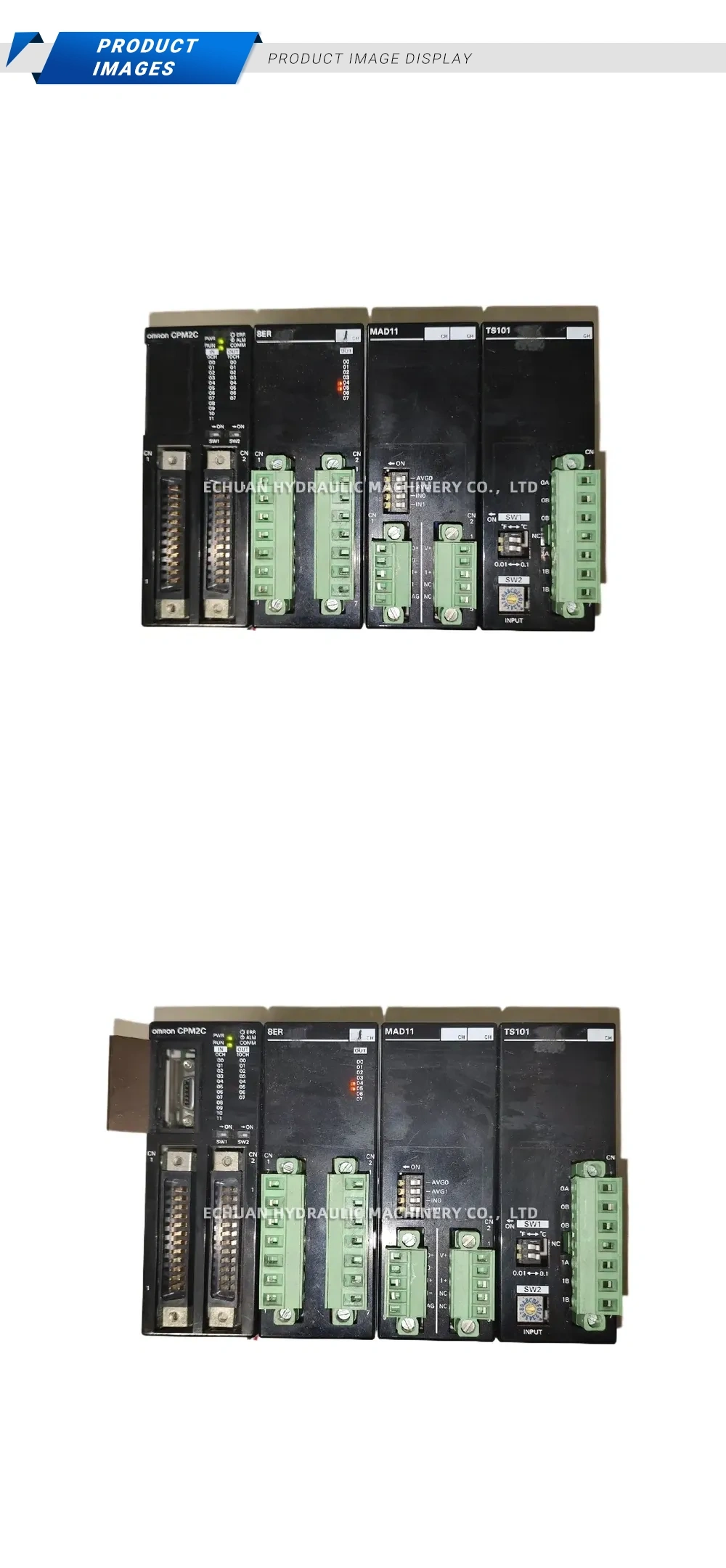

Omron CPM2C-MAD11
The Omron CPM2C-MAD11 is a high-performance analog I/O unit designed to expand the capabilities of the CPM2C series of programmable logic controllers. This compact module seamlessly integrates with the PLC, providing two analog inputs and one analog output. It is engineered for applications that require precise monitoring and control of analog signals such as pressure, flow, or temperature. With selectable input and output ranges and a high resolution of 1/6000, the CPM2C-MAD11 offers exceptional flexibility and accuracy for sophisticated automation tasks in a space-saving design.
Technical Specifications:
- Product Type: Analog Input/Output Unit
- Applicable PLC Series: Omron CPM2C
- Number of Analog Inputs: 2 points
- Number of Analog Outputs: 1 point
- Input Signal Range: Selectable (0 to 10 V, 1 to 5 V, 0 to 5 V, 0 to 20 mA, 4 to 20 mA)
- Output Signal Range: Selectable (0 to 10 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA)
- Resolution: 1/6000
Omron CPM2C-MAD11
Enhance your automation system with the Omron CPM2C-MAD11, a compact Analog I/O Unit for CPM2C PLCs, featuring 2 high-resolution inputs and 1 output for precise analog signal processing.
