Product Description

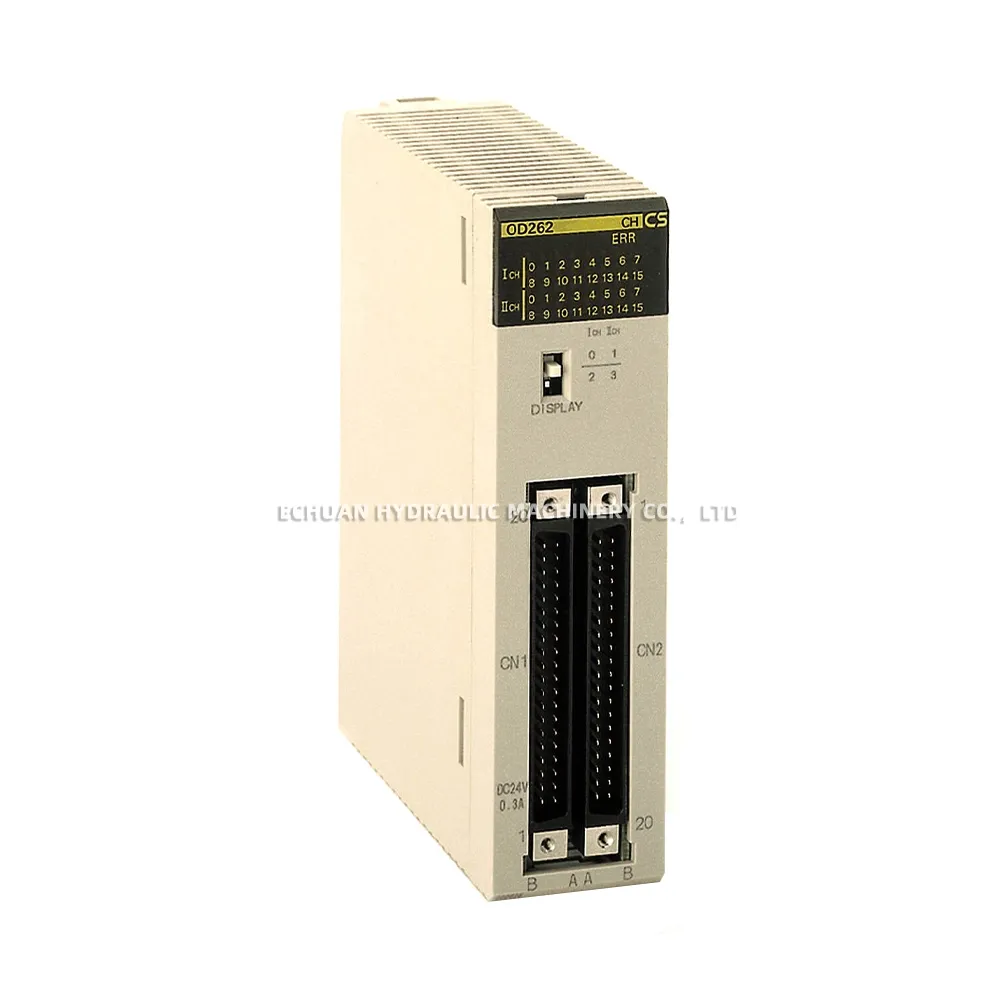

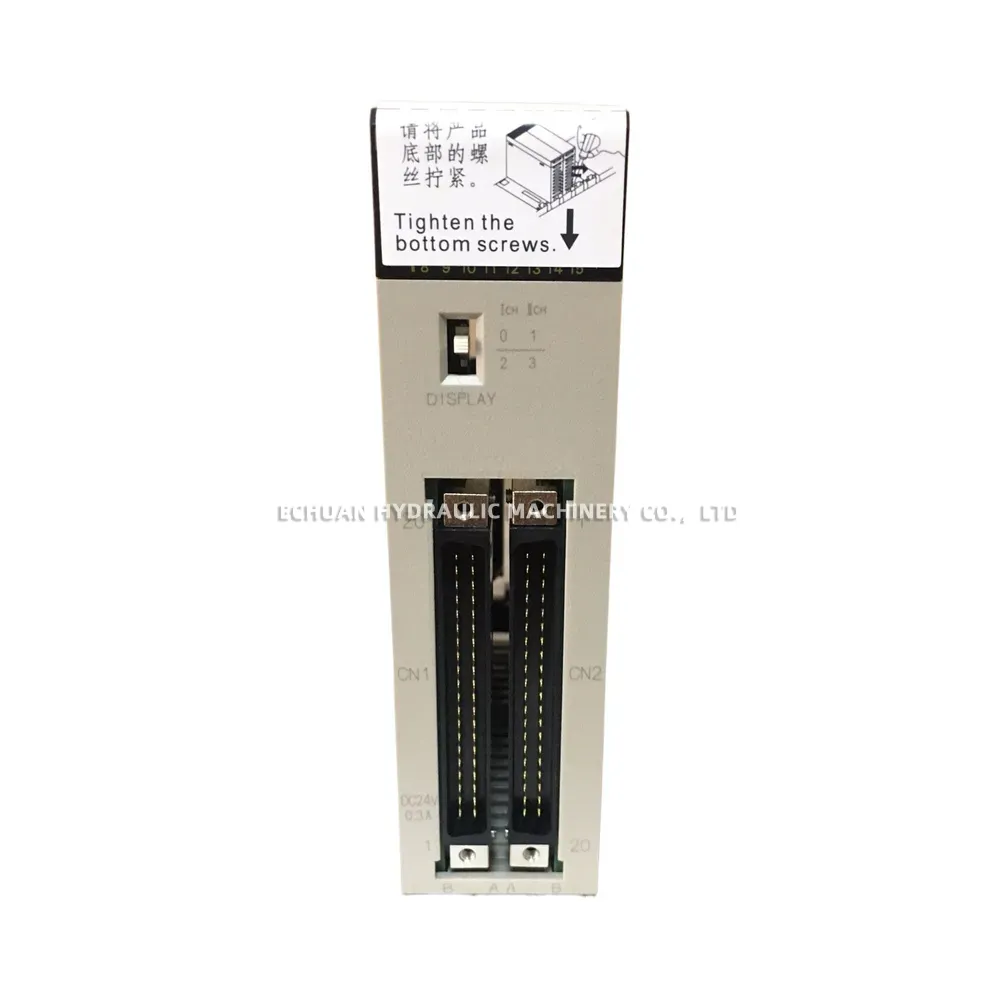

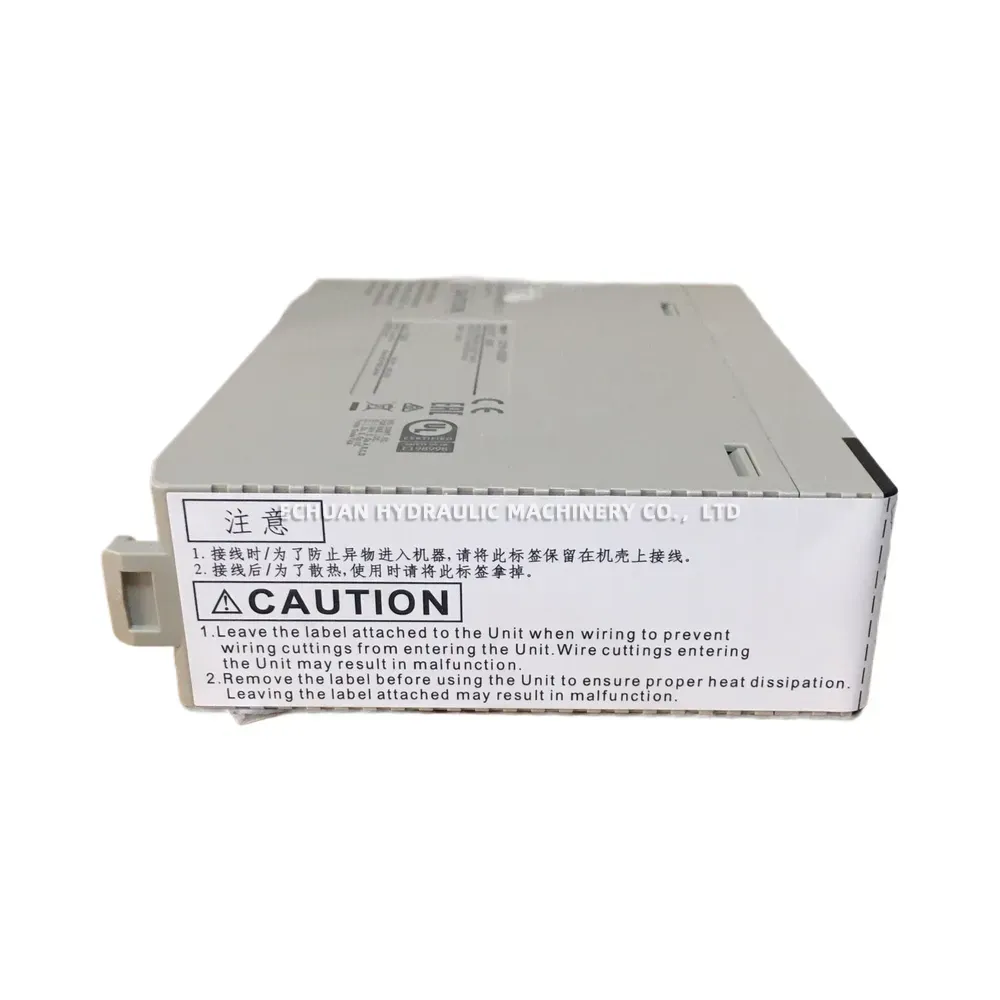

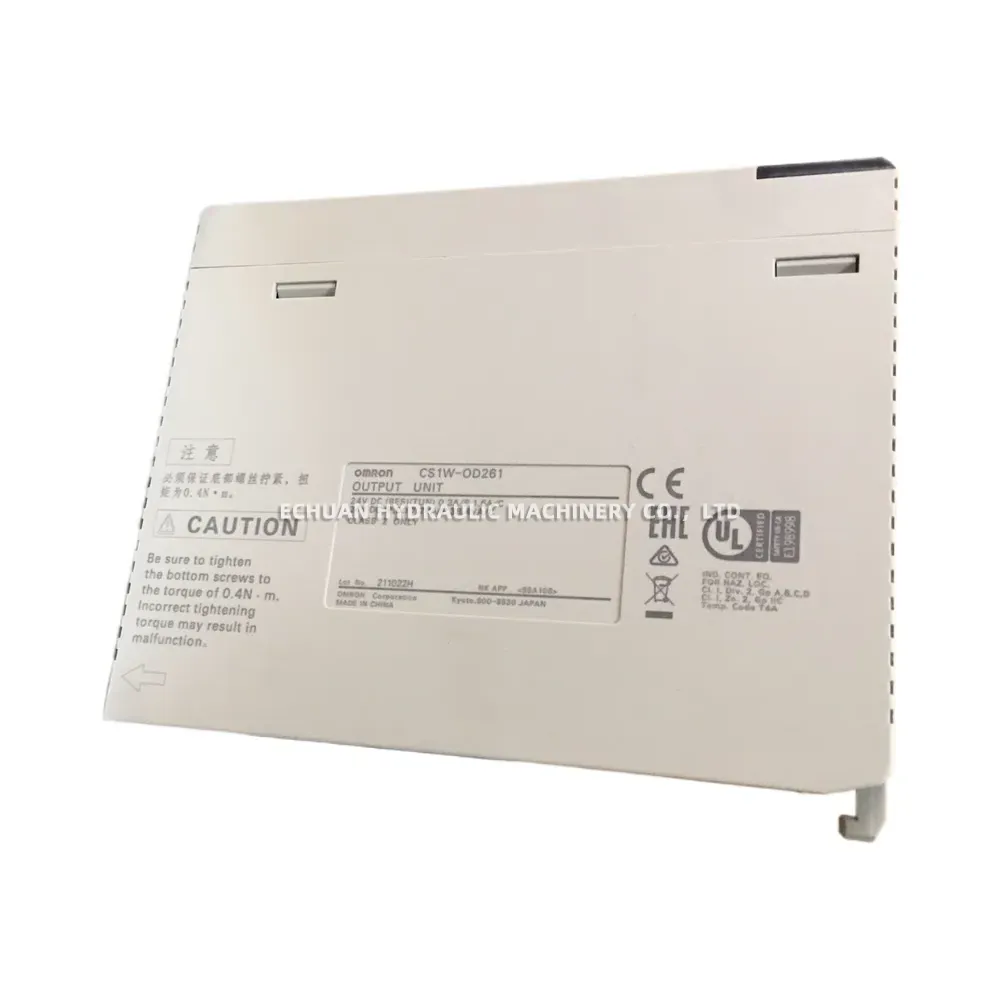

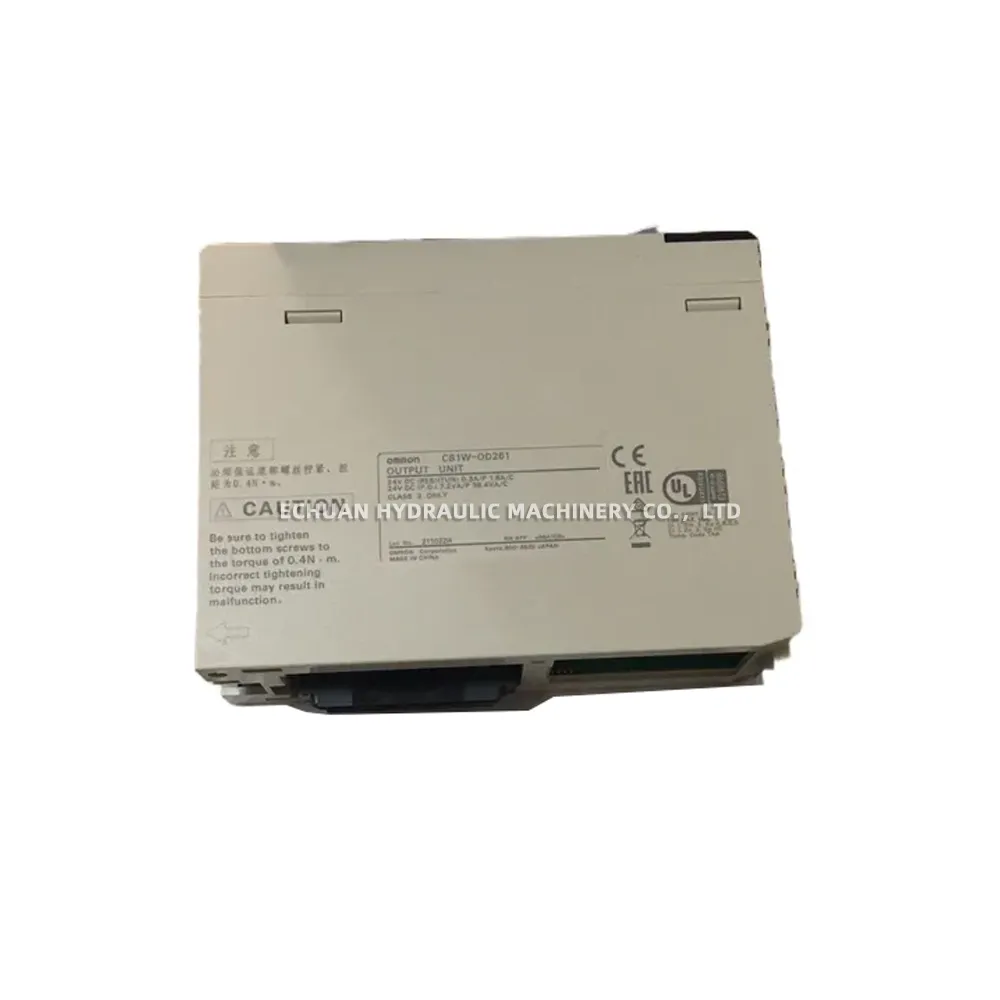

Omron CS1W-OD261
The Omron CS1W-OD261 is a high-density DC Output Unit designed for the Omron CS1 series of Programmable Logic Controllers (PLCs). This module provides 64 sinking transistor output points, making it an excellent choice for applications requiring a large number of discrete outputs in a compact space. It operates on a 12 to 24 VDC supply and is ideal for controlling various actuators, lamps, and relays in industrial automation systems. Its use of Fujitsu-compatible connectors allows for efficient and reliable wiring, simplifying system integration and maintenance.
Technical Specifications:
- Model: CS1W-OD261
- Product Type: DC Output Unit
- Number of Outputs: 64 points
- Output Type: Transistor (Sinking, NPN)
- Rated Load Voltage: 12 to 24 VDC (+10%/-15%)
- Maximum Load Current: 0.1 A per point, 3.2 A per unit
- External Connection: Two 40-pin Fujitsu-compatible connectors
- Series: Omron SYSMAC CS1
Omron CS1W-OD261
Buy the Omron CS1W-OD261, a reliable 64-point sinking transistor output module for the CS1 series PLC. Ideal for high-density industrial control applications.
| Brand | OMRON |
|---|---|
| Model | CS1W-OD261 |
| Category | Electrical |
