Product Description

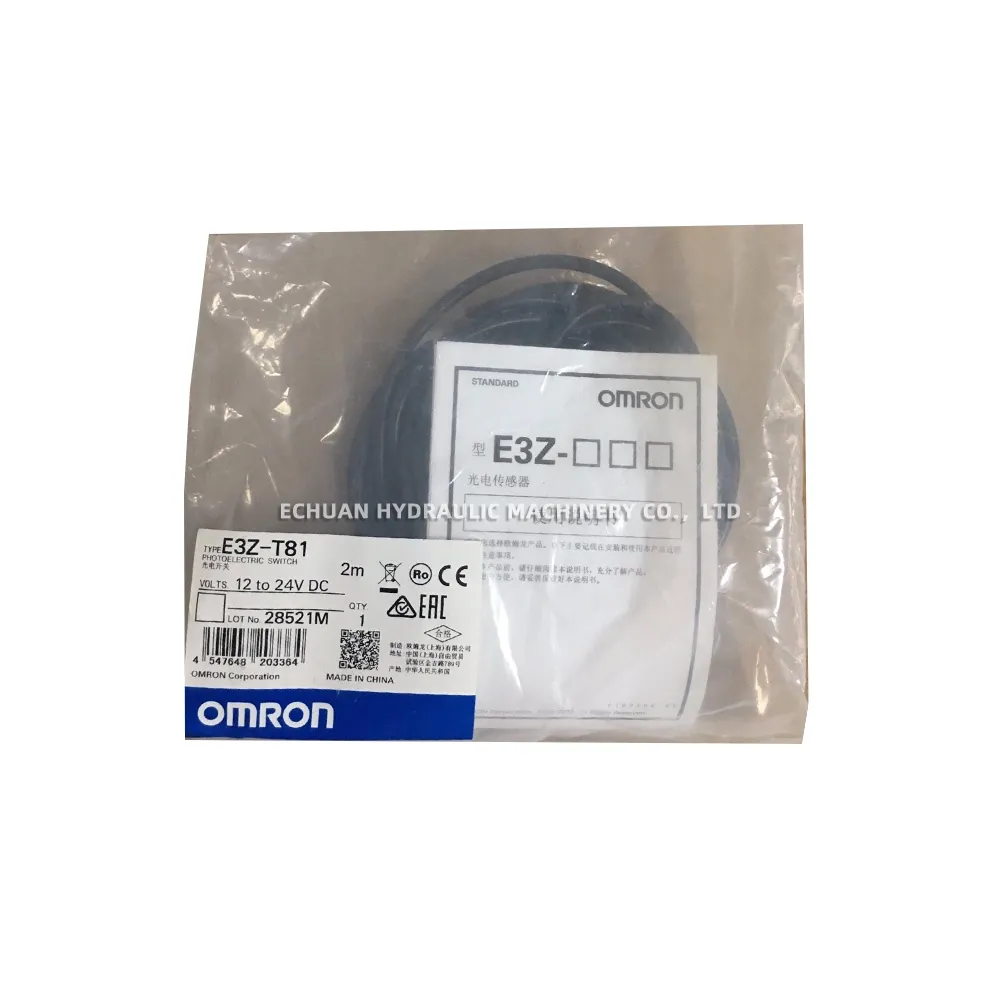

Omron E3Z-T81 Photoelectric Sensor

The Omron E3Z-T81 is a high-performance, compact photoelectric sensor designed for reliable object detection in a wide range of industrial applications. As a through-beam model, it consists of a separate emitter and receiver, enabling an impressive long sensing distance of up to 30 meters. Its robust IP67-rated housing ensures dependable operation even in harsh environments with dust and water exposure. Featuring a bright LED indicator for easy alignment and status monitoring, the E3Z-T81 with its M8 connector is simple to install and integrate into existing systems, making it an excellent choice for factory automation, packaging lines, and material handling.

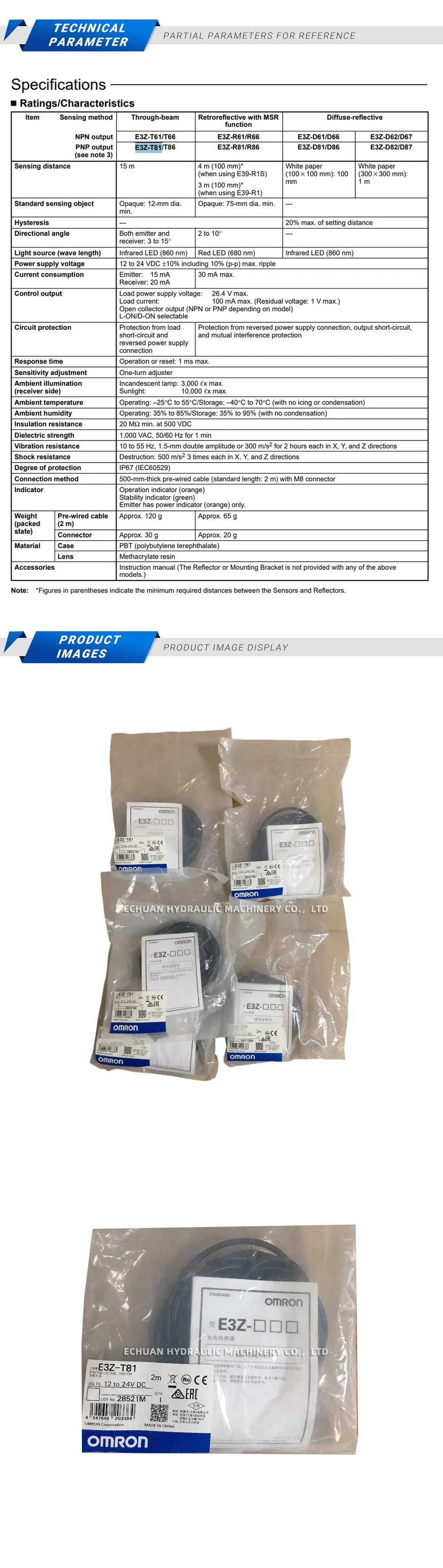

Technical Specifications:

  • Sensing Method: Through-beam (includes Emitter & Receiver)

  • Sensing Distance: 30 m

  • Output Configuration: PNP

  • Connection Method: M8 4-pin Connector

  • Light Source: Infrared LED (870 nm)

  • Power Supply Voltage: 12 to 24 VDC

  • Response Time: 1 ms max.

  • Protection Rating: IP67

Omron E3Z-T81 Description

Omron E3Z-T81

Purchase the Omron E3Z-T81 through-beam photoelectric sensor, featuring a 30m long sensing range, reliable PNP output, and a durable IP67 housing. Ideal for industrial automation and object detection.
