Product Description

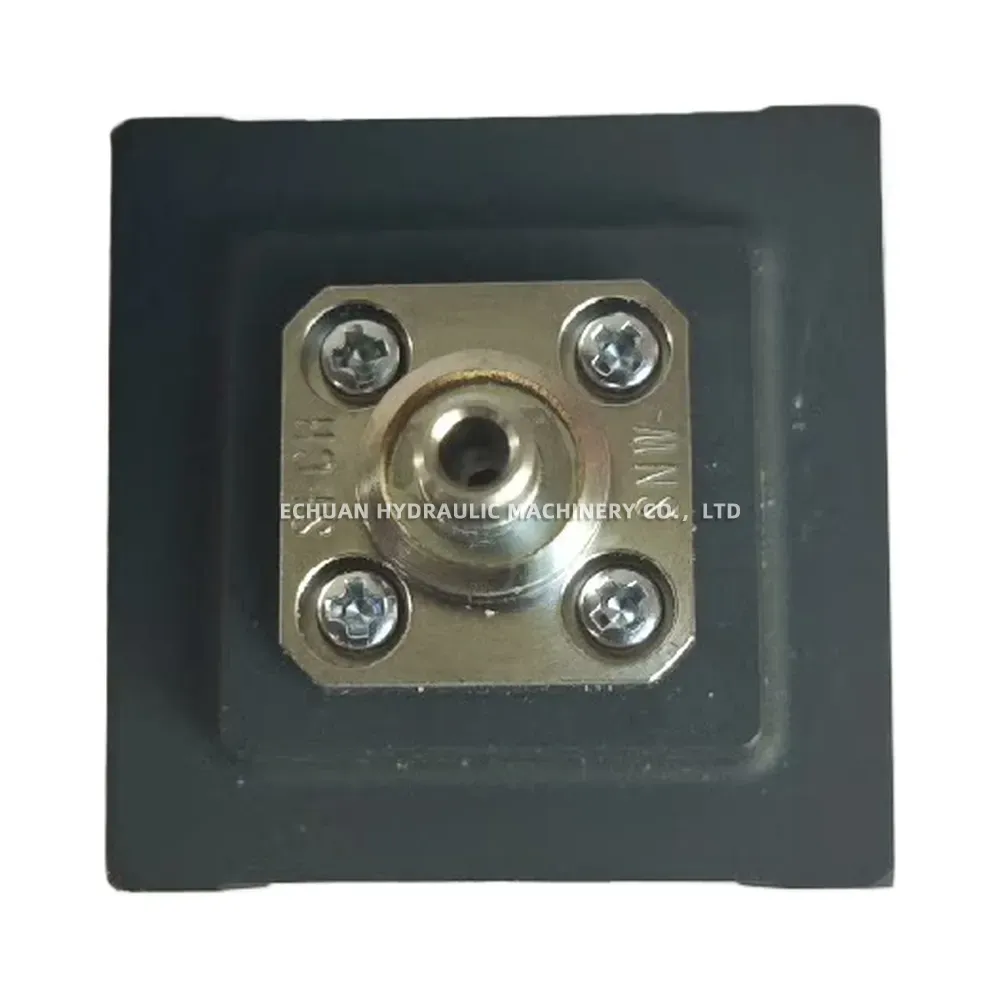

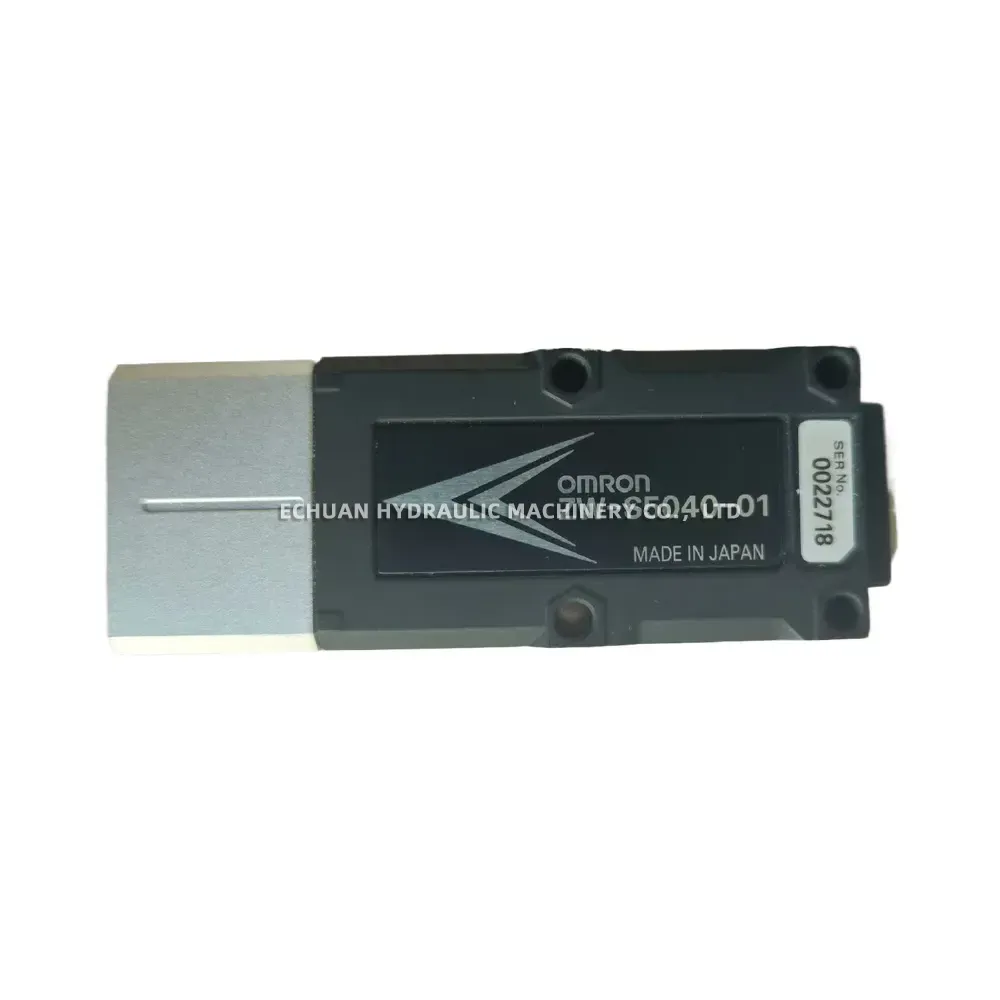

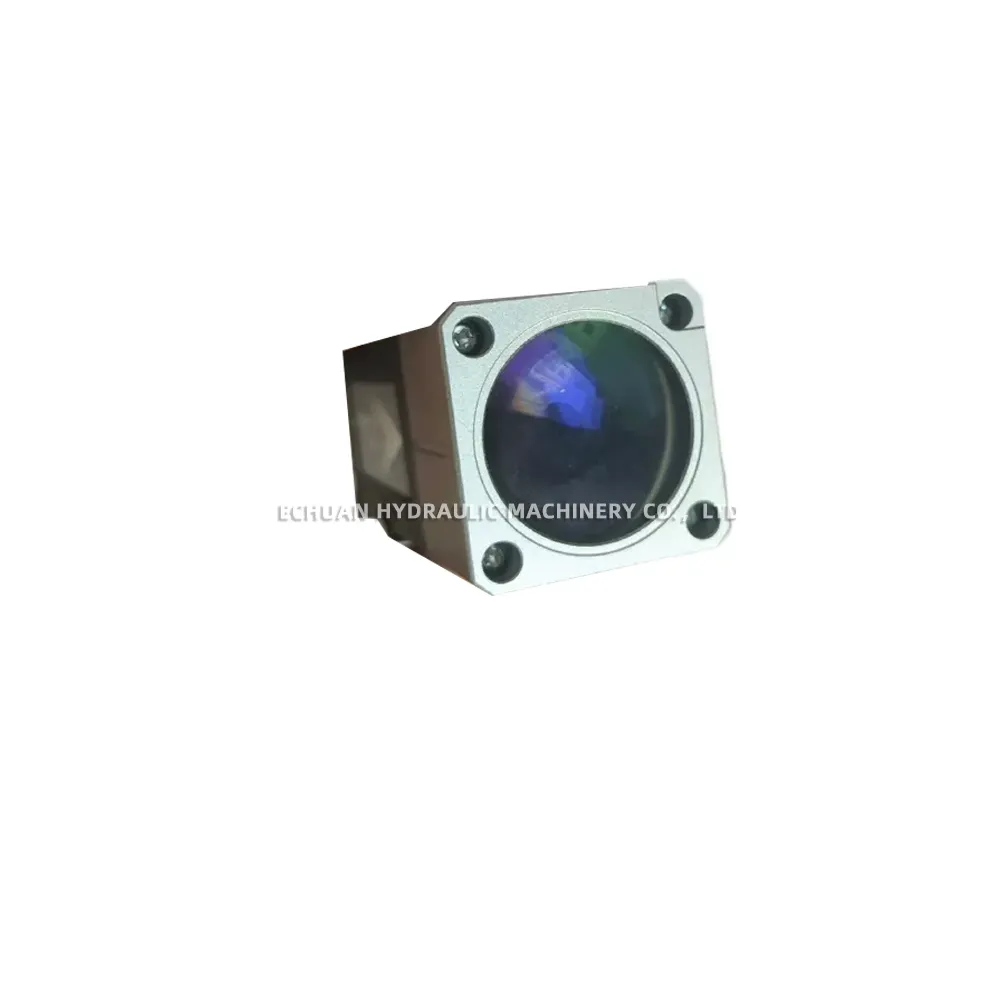

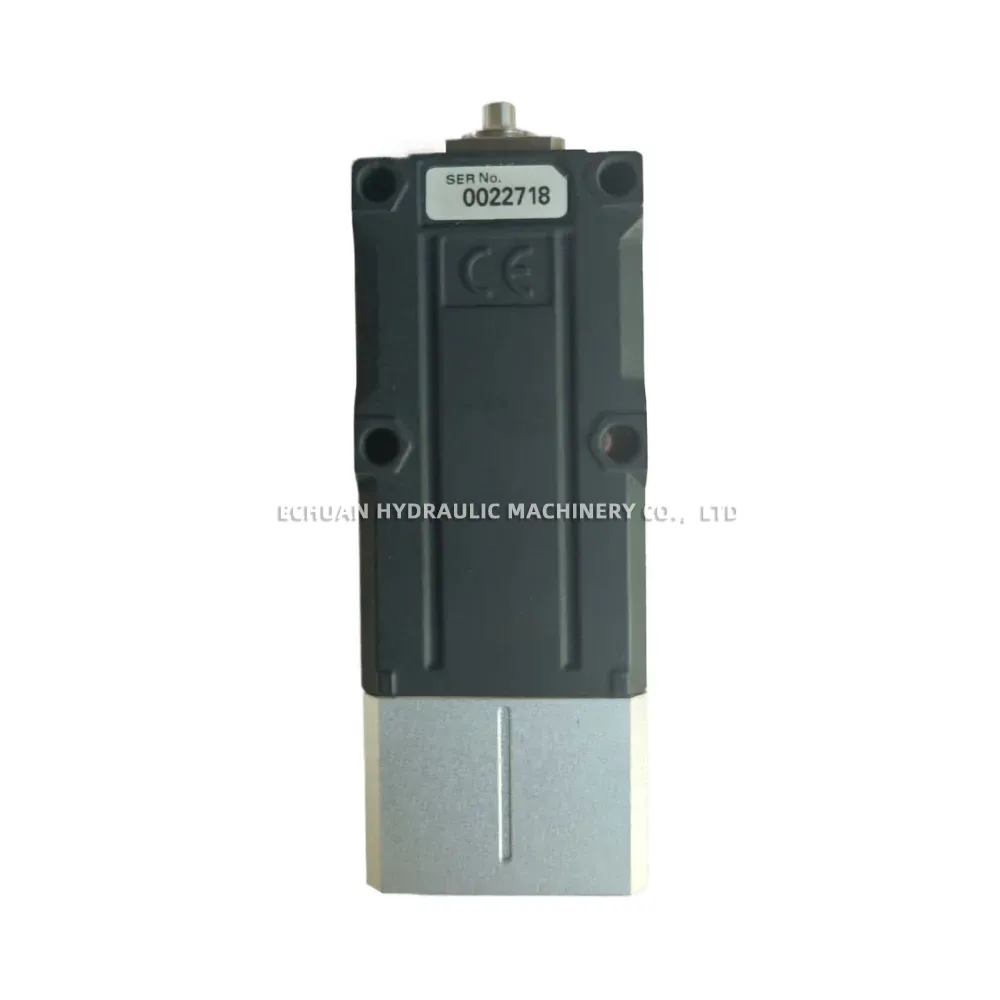

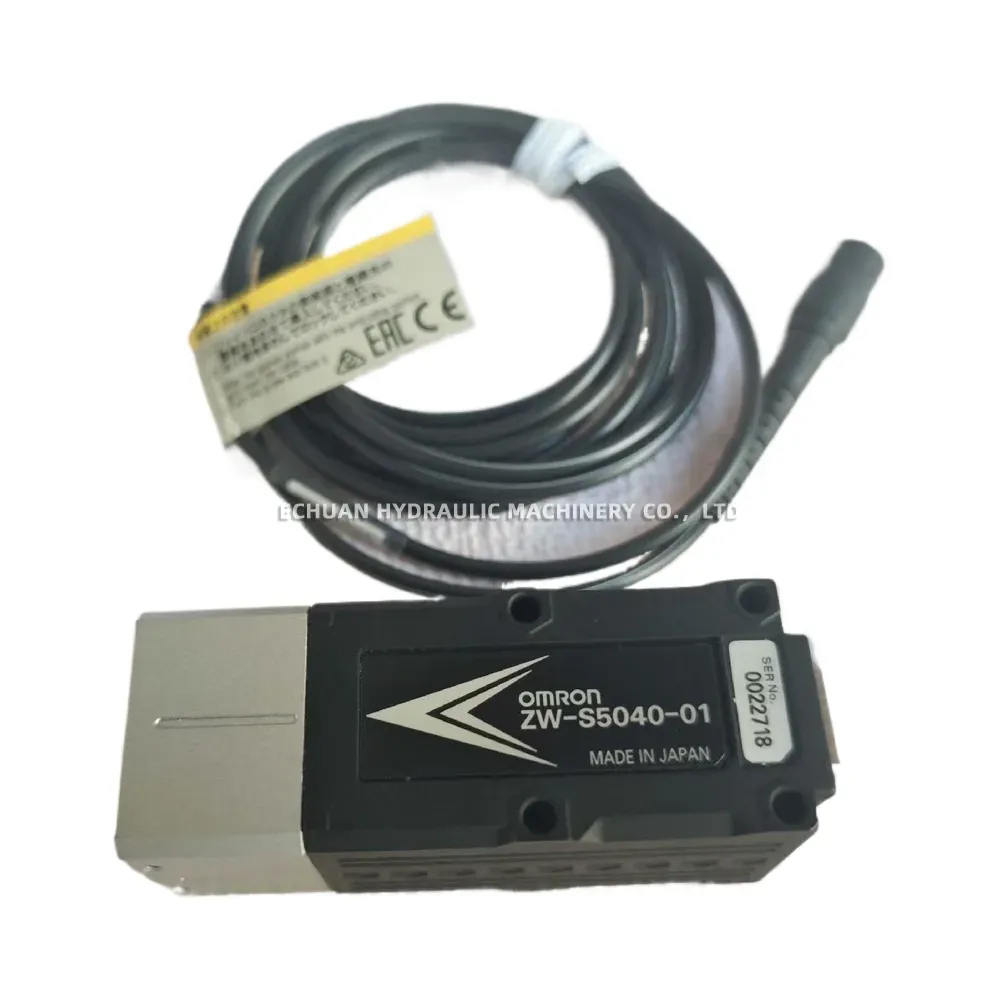

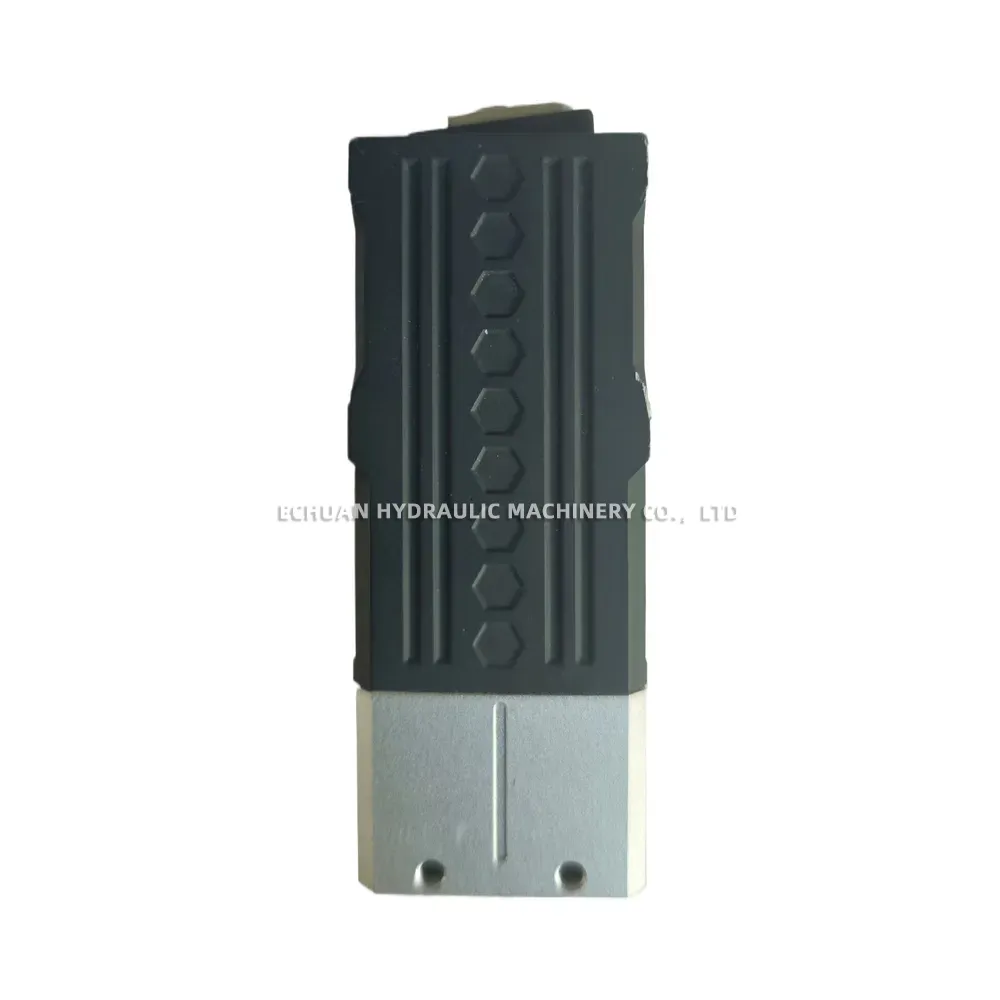

OMRON ZW-S5040-01 Confocal Fiber Displacement Sensor Head

The OMRON ZW-S5040-01 is a high-precision confocal fiber displacement sensor head designed for non-contact measurement applications. Part of the ZW-S series, it excels in accurately measuring displacement, thickness, and surface profiles on a wide variety of materials, including transparent, mirrored, or uneven surfaces. Its compact design allows for easy integration into machinery and tight spaces, making it an ideal solution for in-line quality control, process automation, and R&D applications requiring stable and reliable measurements.

Technical Specifications:

Model: ZW-S5040-01
Measurement Principle: Confocal point method
Measuring Range (Center): 40 mm
Reference Distance: 50 mm
Light Source: White LED
Spot Diameter (at reference distance): ø120 µm (Typical)
Linearity: ±0.05% F.S. (Full Scale: 10 mm, when connected to ZW-SExx controller)
Repeatability: 0.2 µm (Typical, when connected to ZW-SExx controller, measuring OMRON standard mirror)
Minimum Measurable Object Diameter: ø1 mm (when measuring OMRON standard mirror at reference distance)
Operating Temperature Range: 0 to 50 °C (No condensation or icing)
Storage Temperature Range: -15 to 60 °C (No condensation or icing)
Ambient Humidity: 35% to 85% RH (No condensation)
Protection Class: IP67 (IEC60529 standard)

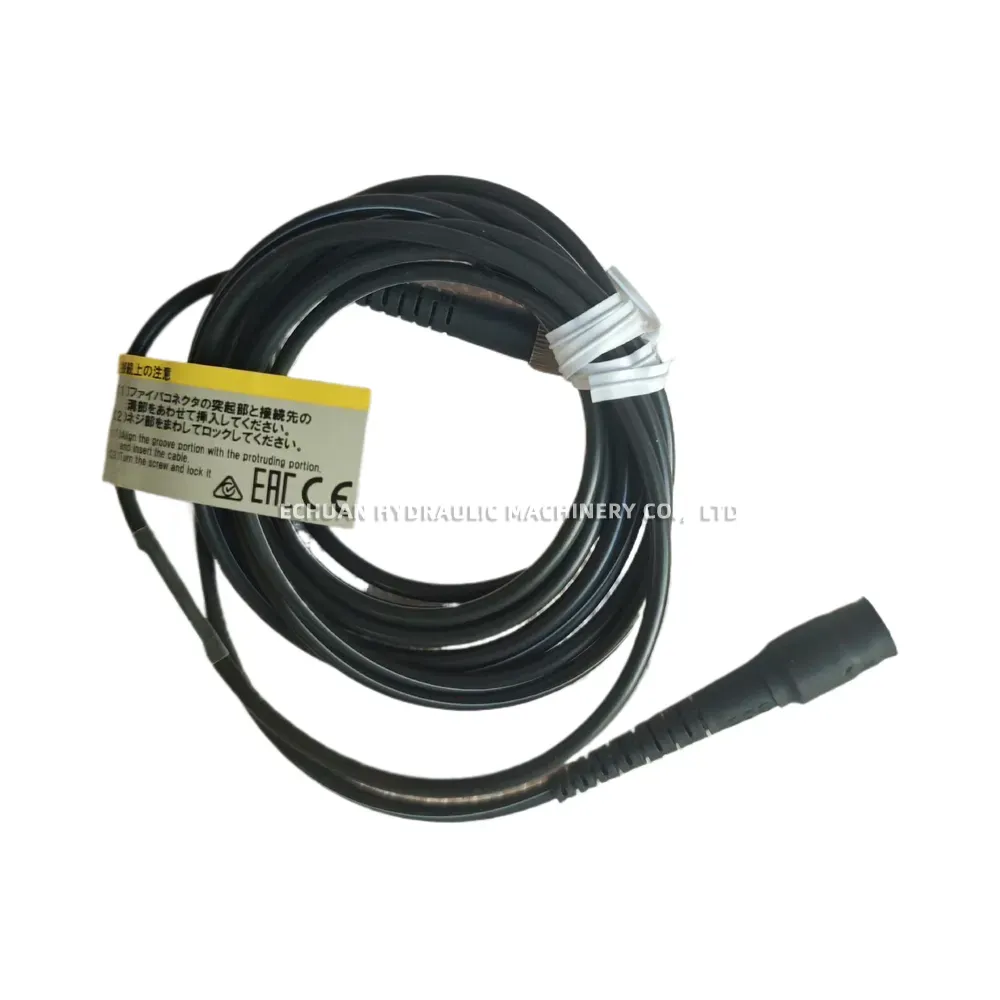

Cable Length: 1 m
Weight: Approx. 130 g (including cable)
Compatible Controller Series: ZW-SE (e.g., ZW-SE20, ZW-SE50)
