Product Description
ORCS ESB-EVE-1 Printed Circuit Board (PCB) Assembly

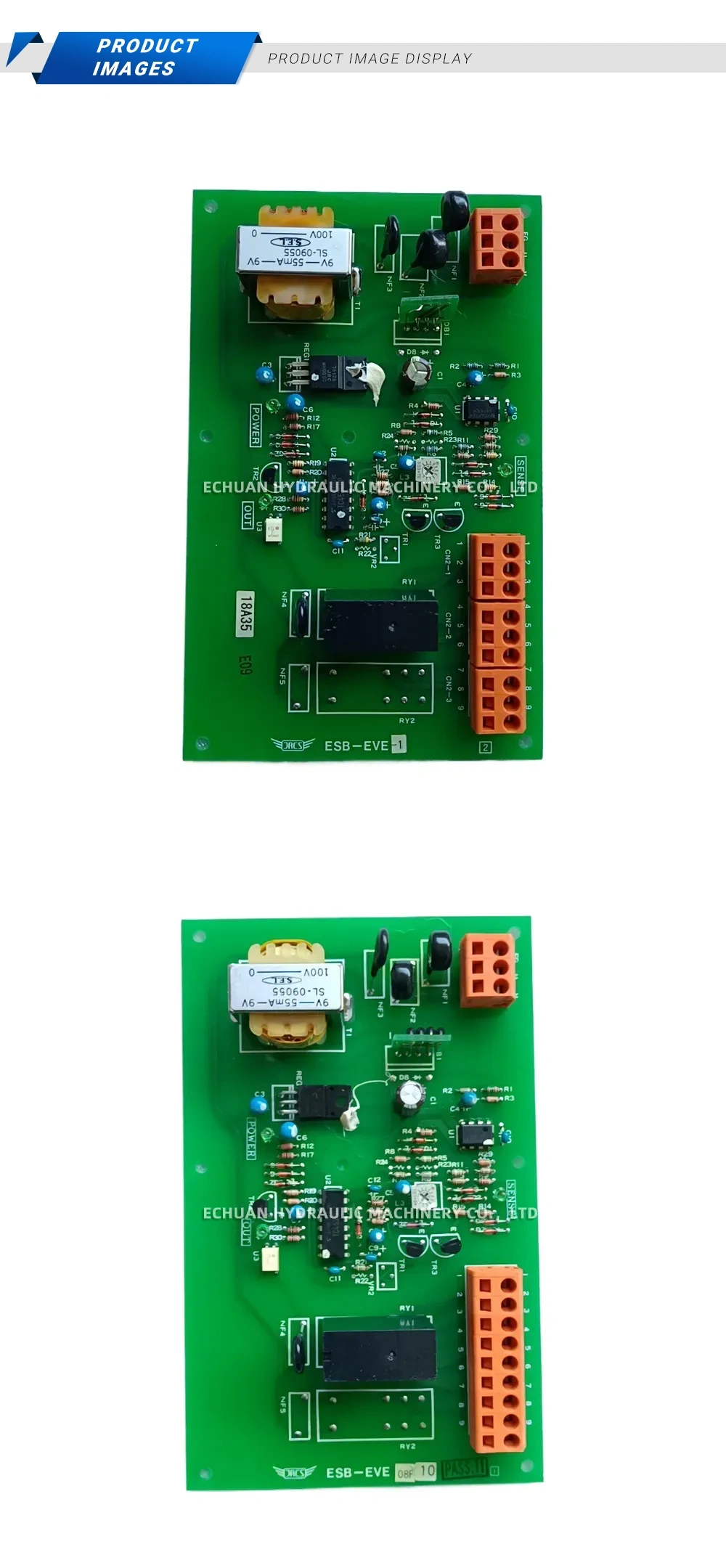

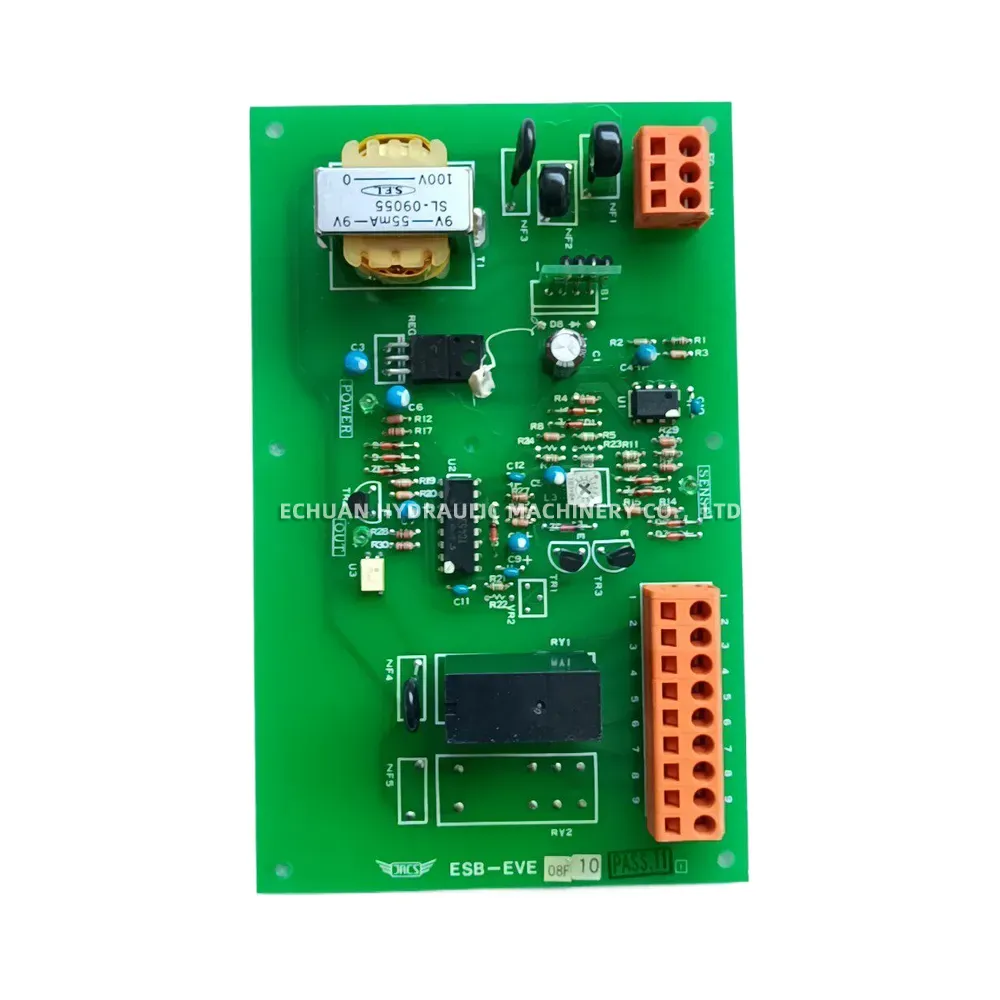

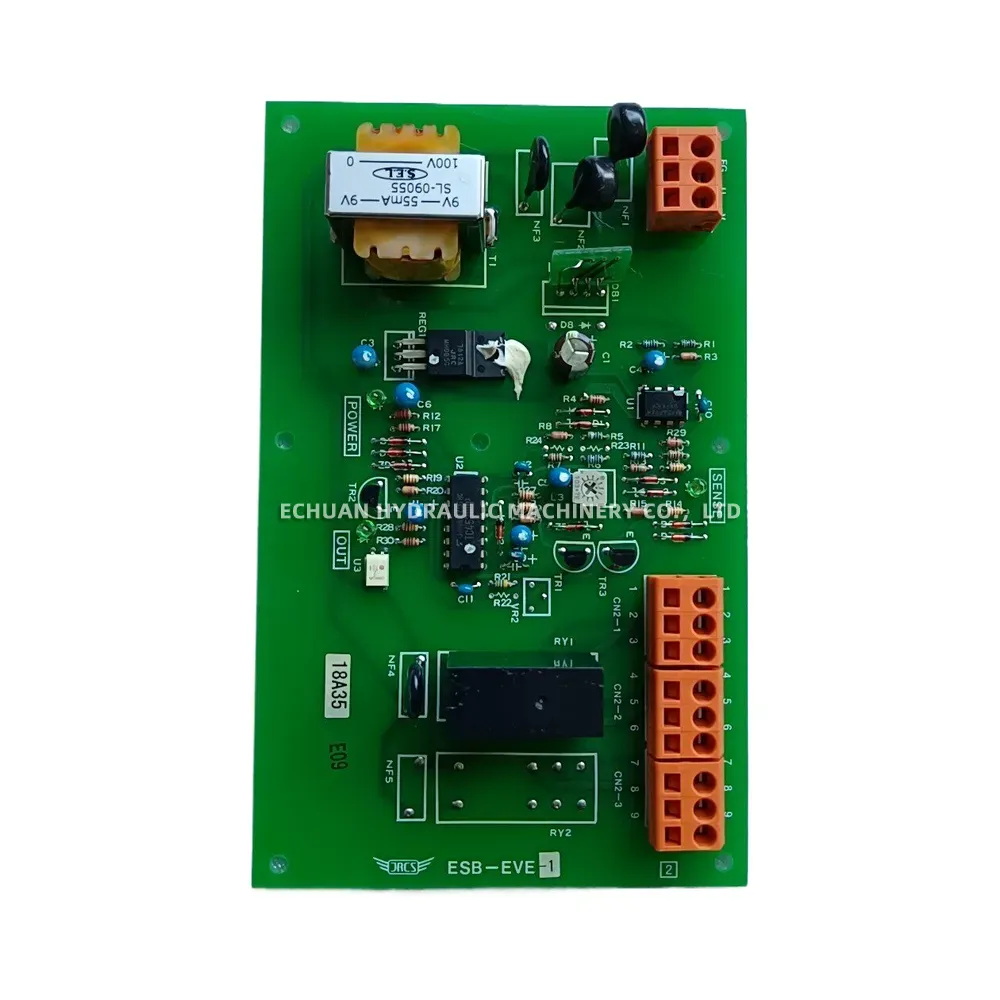

The ORCS ESB-EVE-1 is a robust and highly reliable industrial Printed Circuit Board (PCB) Assembly engineered for precision control and sensing applications. This industrial control board is equipped with a dedicated power regulation section, featuring an SL-09055 step-down transformer that efficiently converts a 100V input to a stable 9V (55mA) output. For secure and versatile connectivity, the board utilizes highly visible orange screw terminal blocks, including 3-pin and 9-pin (CN2-1 to CN2-9) configurations. The PCB integrates essential control components such as mechanical relays (RY1, RY2), multiple integrated circuits (U1, U2, U3), and precision potentiometers for fine-tuning system parameters. With clear silkscreen markings designating the POWER, SENSE, and OUT sections, this board ensures straightforward installation, maintenance, and troubleshooting for industrial technicians.
Technical Specifications:
- Brand: ORCS
- Model: ESB-EVE-1
- Power / Transformer Specs: Model SL-09055 | 100V Input | 9V – 55mA Output
- Connections: Orange screw terminal blocks (3-pin and 9-pin configurations, CN2-1 to CN2-9)
- Onboard Components: Relays (RY1, RY2), Integrated Circuits (U1, U2, U3), Potentiometers, Resistors, Capacitors
- Silkscreen Designations: POWER, SENSE, OUT (Additional markings: 18A35, E09, 08F 10, PASS 10)
ORCS ESB-EVE-1 Printed Circuit Board (PCB) Assembly
Upgrade or repair your industrial systems with the ORCS ESB-EVE-1 Printed Circuit Board (PCB) Assembly. Featuring a reliable 100V to 9V (55mA) step-down transformer, secure orange screw terminals, and onboard relays, this control board is clearly marked for POWER, SENSE, and OUT functions to ensure seamless integration and dependable performance.
