Product Description

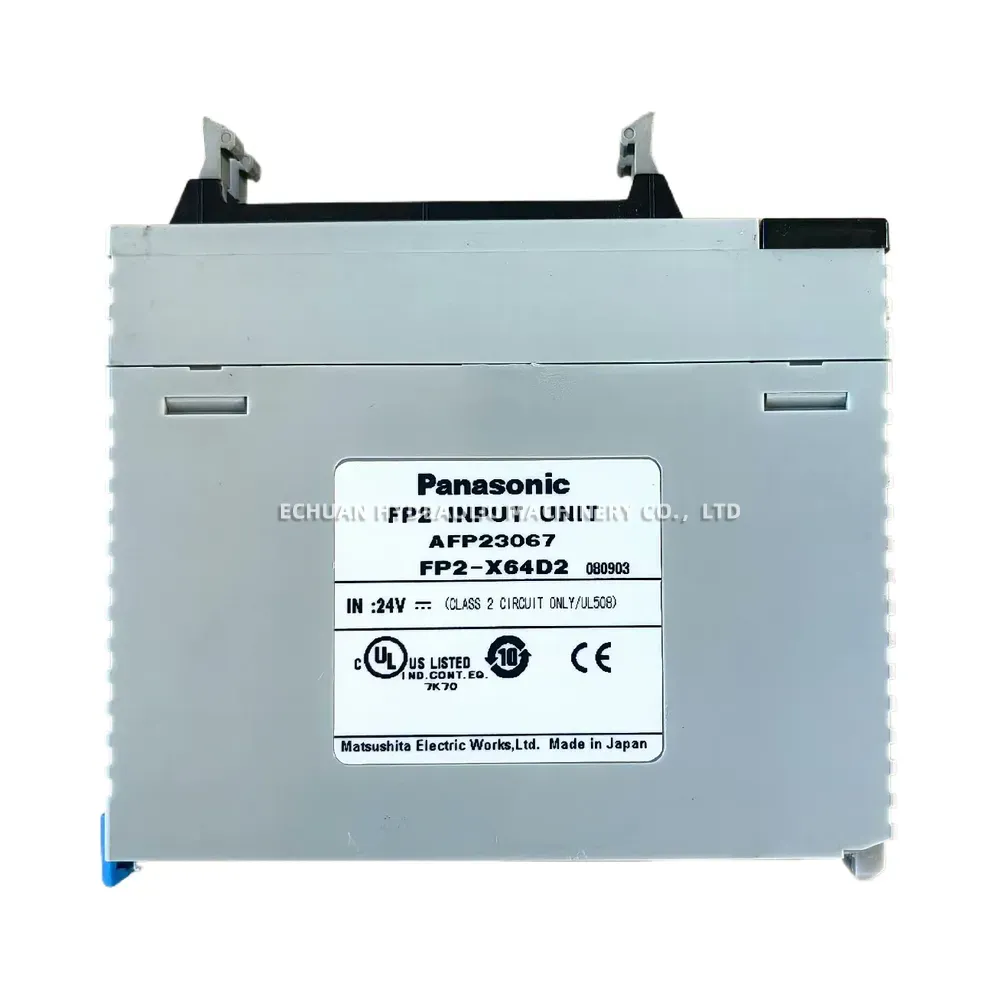

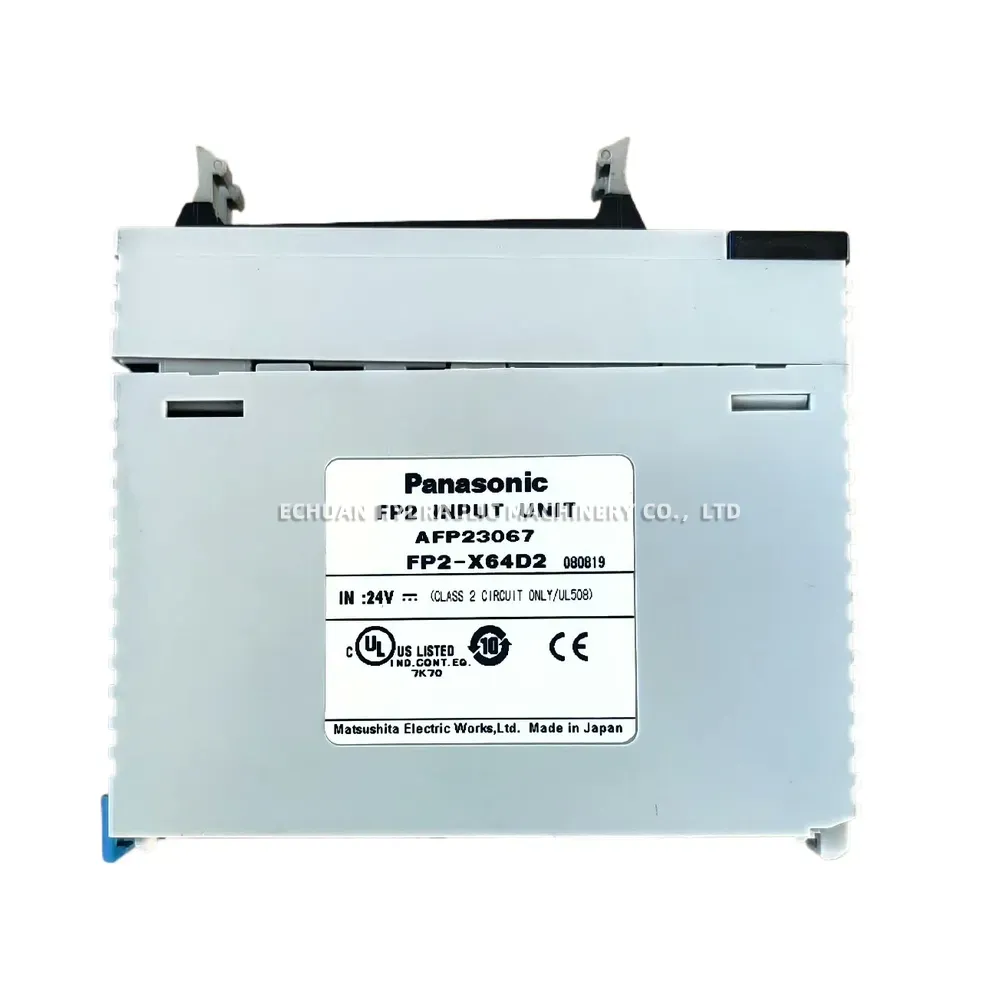

Panasonic AFP23067 FP2-X64D2
The Panasonic AFP23067, also known as the FP2-X64D2, is a versatile I/O expansion unit specifically designed for use with Panasonic’s FP2 and FP2SH series Programmable Logic Controllers (PLCs). This module significantly enhances the output capabilities of your automation system by providing an additional 64 transistor (NPN) output points. It is ideal for applications requiring control over a larger number of external devices, such as actuators, indicators, and relays. The FP2-X64D2 seamlessly integrates with the main PLC unit or other expansion units, offering a reliable solution for expanding system functionality in various industrial automation environments.
Technical Specifications:
- Product Series: FP2 / FP2SH
- Model Number: AFP23067 (FP2-X64D2)
- Product Type: I/O Expansion Unit
- Number of Output Points: 64 points
- Output Type: Transistor (NPN open collector)
- Rated Load Voltage: 12 to 24 V DC (+10% / -15%)
- Maximum Load Current (per point): 0.1 A
- Maximum Load Current (per common): 1.6 A (for 8 points common)
- Output ON Voltage Drop: 1.5 V or less (at 0.1 A)
- Output OFF Leakage Current: 0.1 mA or less
- Response Time (OFF to ON): 0.1 ms or less
- Response Time (ON to OFF): 0.5 ms or less
- Internal Current Consumption (from 5V bus): 150 mA maximum
- External Connection: 40-pin connector x 2
- Operating Ambient Temperature: 0 to +55 °C (32 to 131 °F)
- Storage Ambient Temperature: -25 to +70 °C (-13 to 158 °F)
- Ambient Humidity: 30 to 85 % RH (non-condensing)
- Insulation Resistance: 20 MΩ or more (at 500 V DC megger, between external terminals and ground)
Panasonic AFP23067 FP2-X64D2
Model：Panasonic AFP23067 FP2-X64D2
| Brand | Panasonic |
|---|---|
| Model | AFP23067 FP2-X64D2 |
| Part No. | Panasonic AFP23067 FP2-X64D2 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/panasonic-afp23067-fp2-x64d2 |
