Product Description

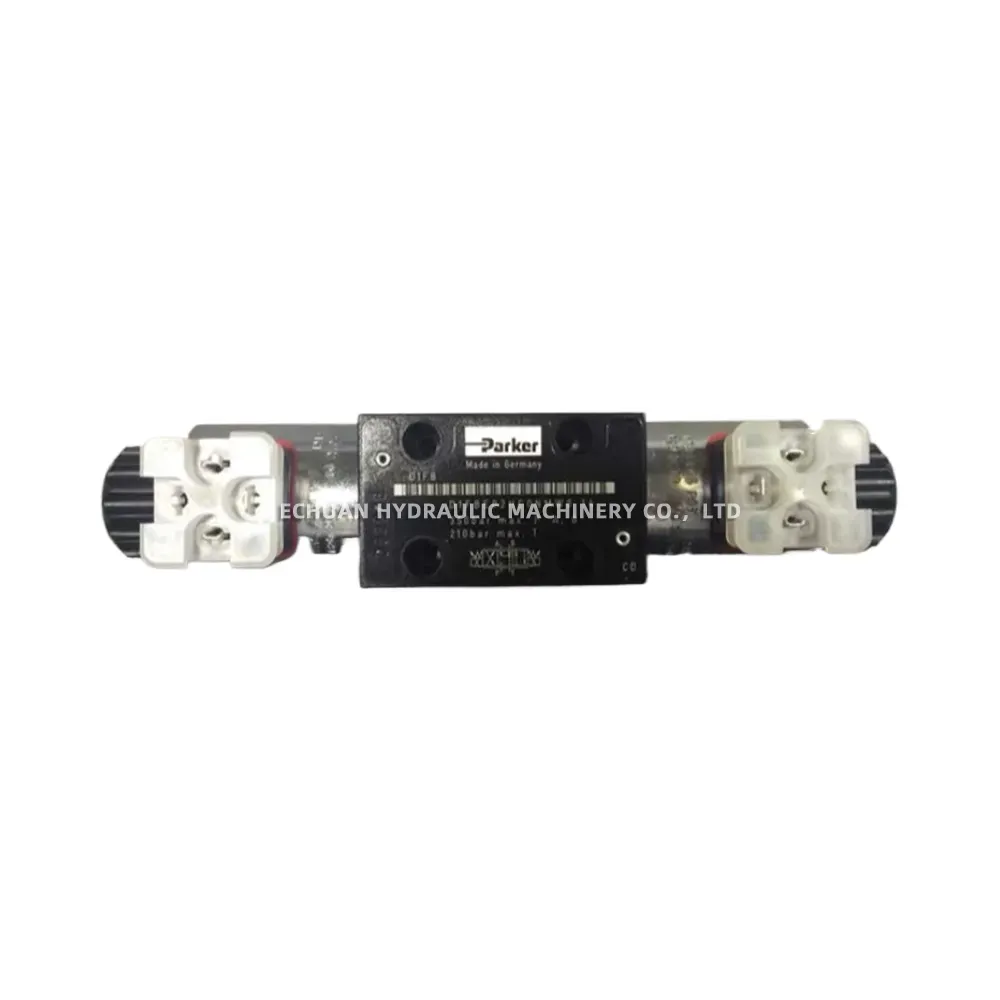

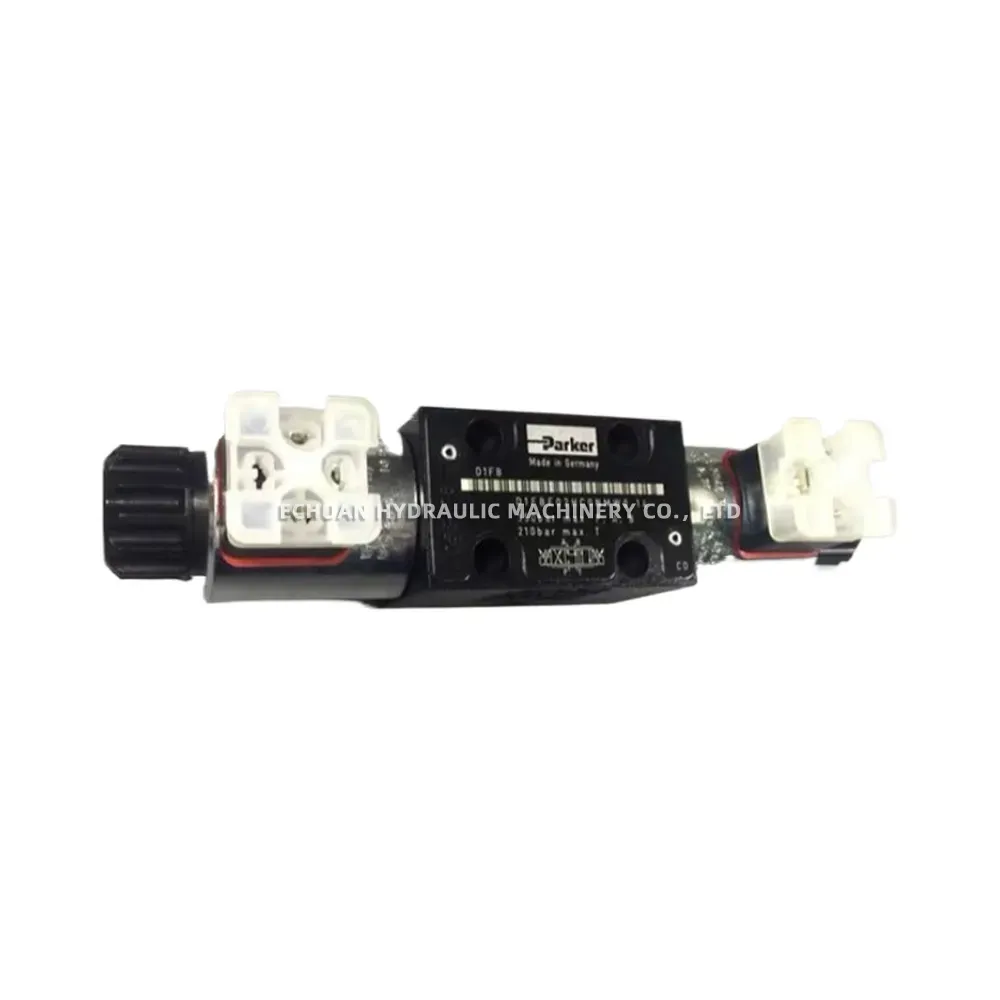

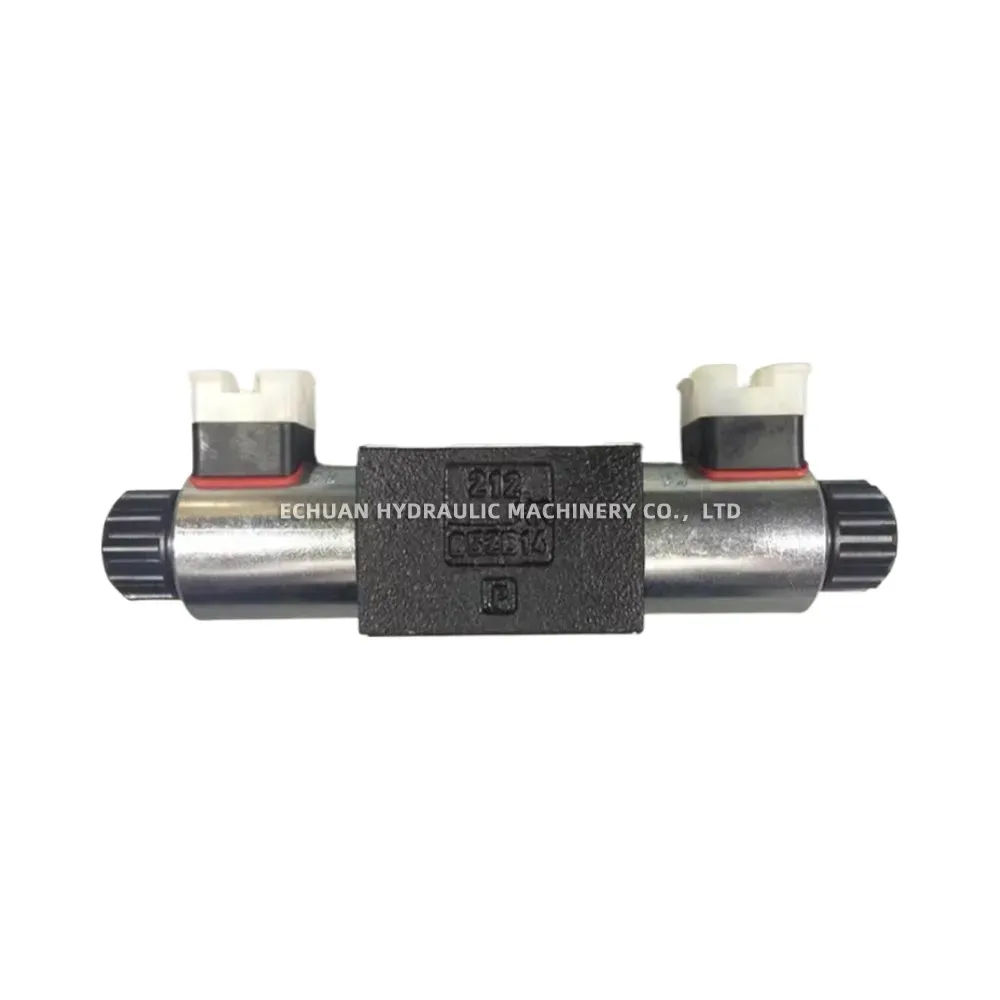

PARKER D1FBE02HC0NMW0
The Parker D1FBE02HC0NMW0 is a high-performance, direct-operated proportional directional control valve from the D1FB series. It is designed for precise control of flow direction and magnitude in hydraulic systems. Featuring integrated on-board electronics (OBE), this valve simplifies system design and installation by eliminating the need for a separate amplifier card. Its robust spool-in-body design ensures high dynamic response, excellent repeatability, and low hysteresis, making it ideal for demanding open-loop control applications in industrial machinery, such as presses, machine tools, and automation systems. The standard NG06 (CETOP 03) interface allows for easy integration into new and existing systems.

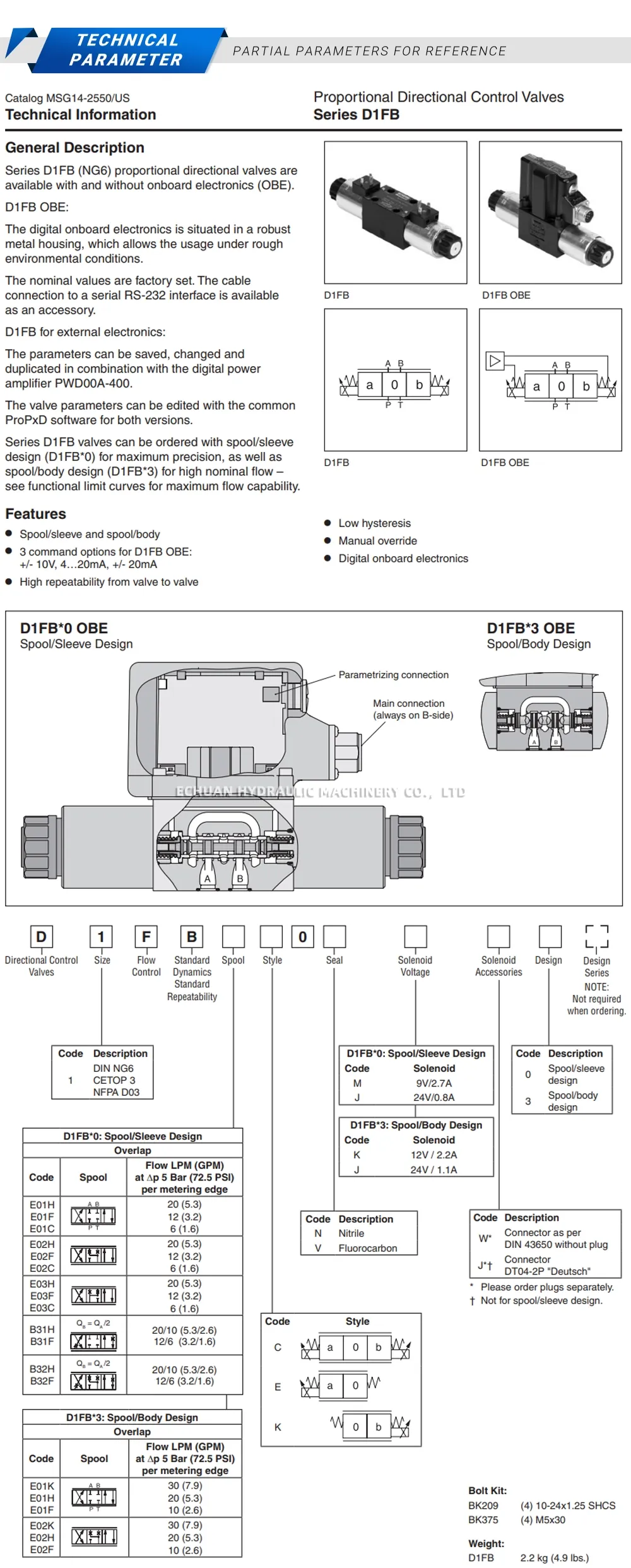

Technical Specifications:
- Series: D1FB
- Valve Type: Proportional Directional Control Valve, Direct Operated
- Mounting Interface: NG06 / CETOP 03 / D03
- Control Electronics: On-board electronics (OBE)
- Maximum Operating Pressure: 350 bar (5075 PSI)
- Nominal Flow Rate: 30 l/min @ 5 bar Δp per land
- Command Signal Input: +/- 10V DC
- Electrical Connection: 7-pin connector to EN 175201-804
- Seal Material: NBR (Nitrile)
- Spool Return: Spring Centered
- Spool Code: 02 (P-T, A-B blocked in center position)
PARKER D1FBE02HC0NMW0
Model:PARKER D1FBE02HC0NMW0
