Product Description

PARKER VMY315K06NV1P

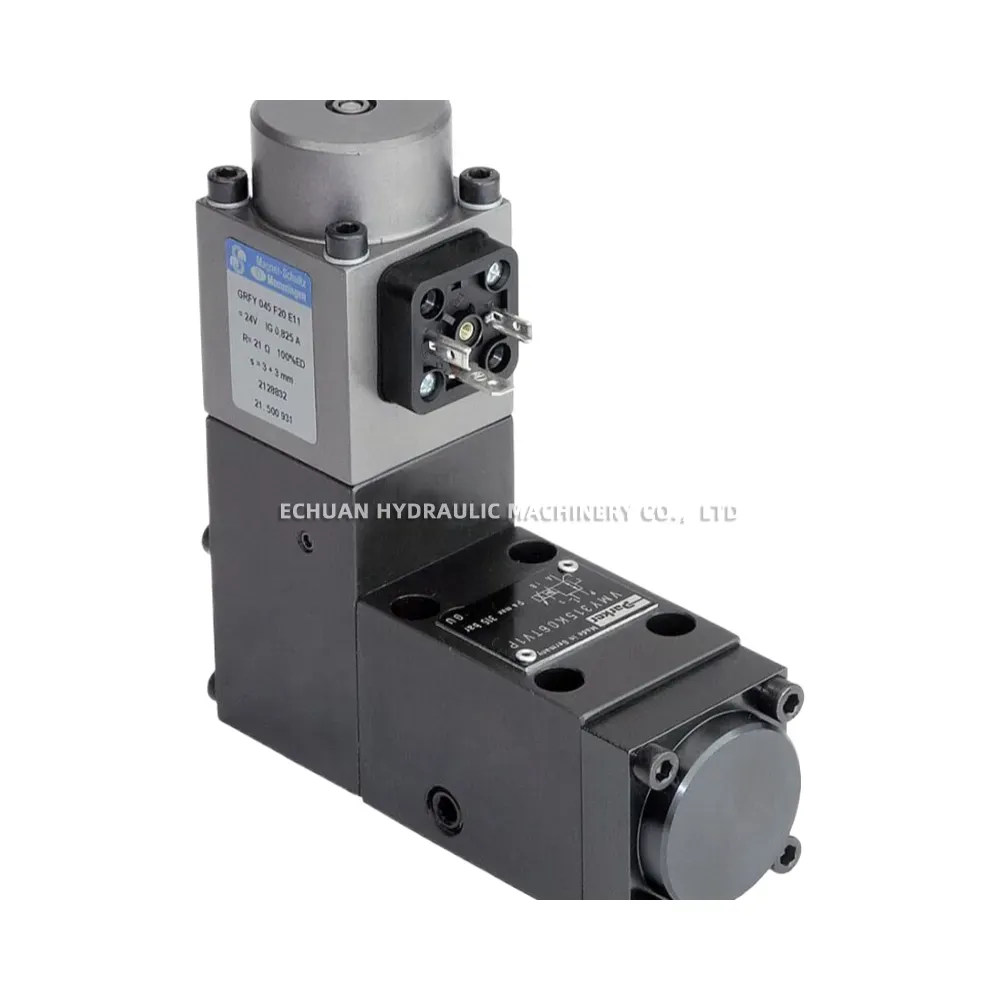

The PARKER VMY315K06NV1P is a high-performance solenoid-operated directional control valve from the renowned Viking Xtreme Mobile series. This 3/2 normally closed (NC) valve is engineered to provide reliable and precise control in demanding mobile applications. Designed to withstand harsh environmental conditions, including extreme temperatures, vibration, and moisture, the VMY315K06NV1P ensures long-lasting operation. Its compact and robust construction makes it ideal for integration into space-constrained mobile hydraulic and pneumatic systems, offering excellent flow capacity for its size.

Technical Specifications:

  • Series: Viking Xtreme Mobile
  • Valve Function: 3/2 Normally Closed (NC)
  • Actuation: Solenoid Operated, Spring Return
  • Port Connection: G1/4
  • Body Material: Anodized Aluminum
  • Seal Material: NBR (Nitrile)
  • Operating Pressure Range: Vacuum to 10 bar (145 psi)
  • Flow Coefficient (Cv): 1.3
  • Coil Voltage: 12V DC
  • Electrical Connection: DIN 43650 Form B
  • Operating Temperature: -40°C to +65°C (-40°F to +149°F)
  • Ingress Protection: IP65 (with connector)

PARKER VMY315K06NV1P

Model:PARKER VMY315K06NV1P
