Product Description

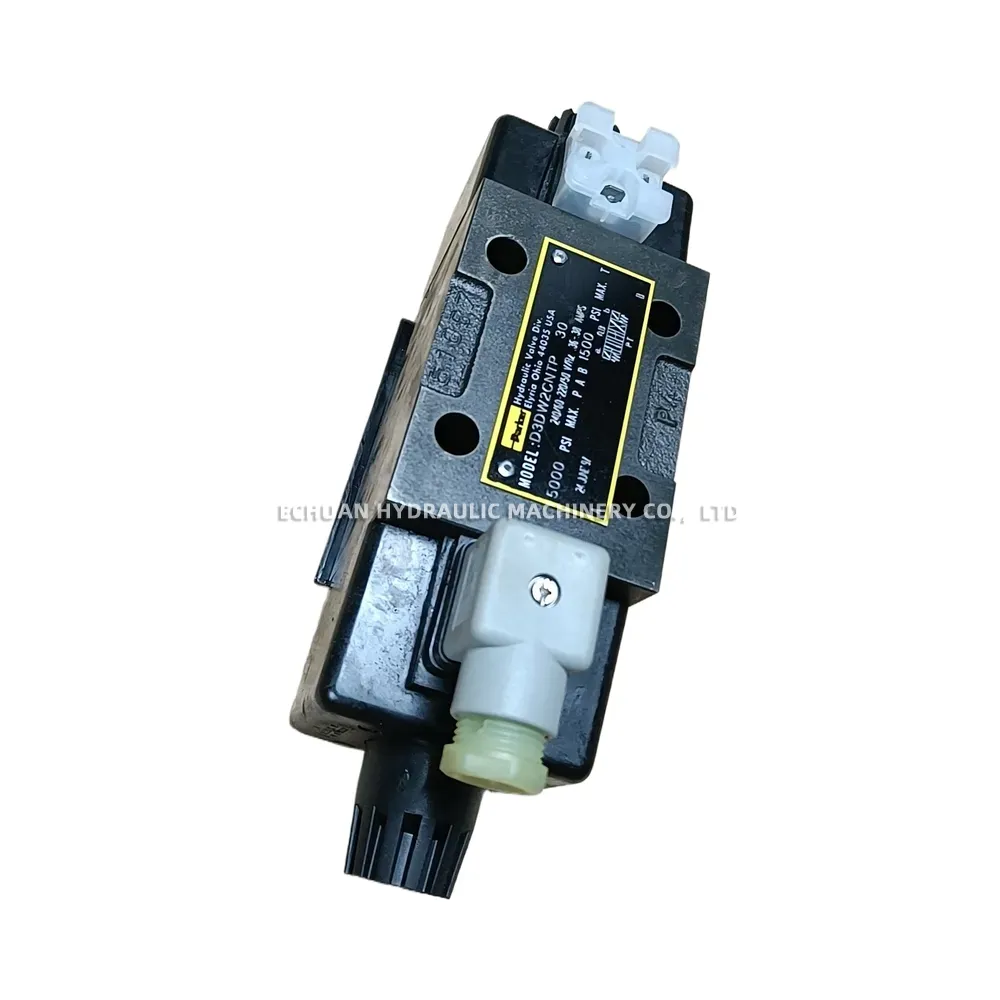

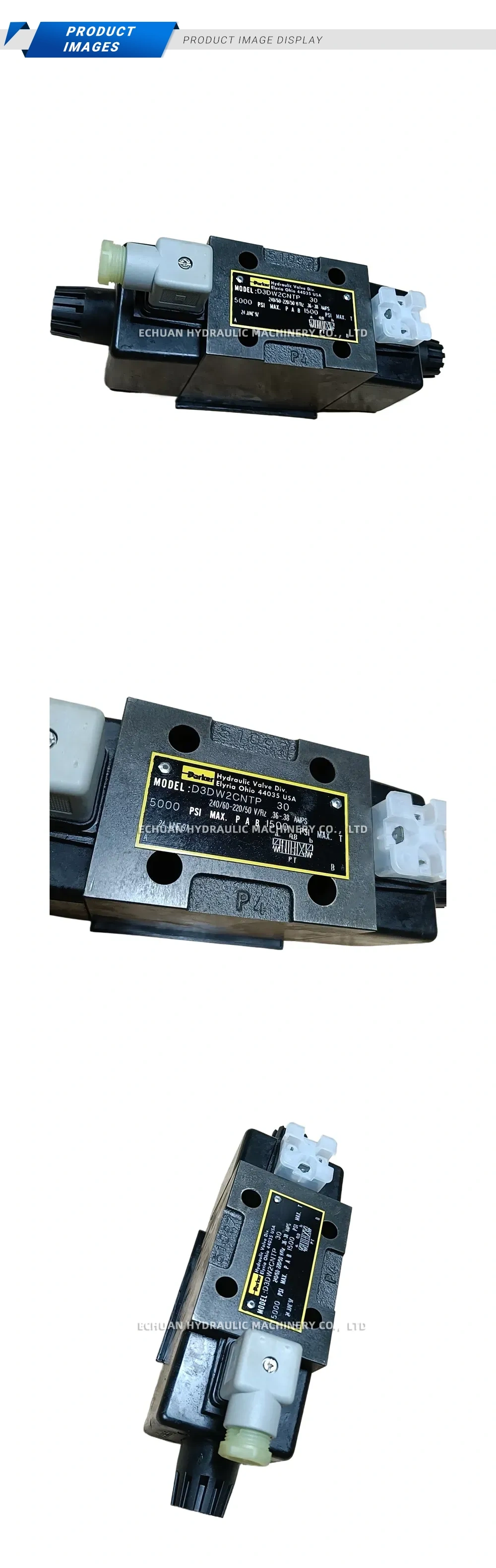

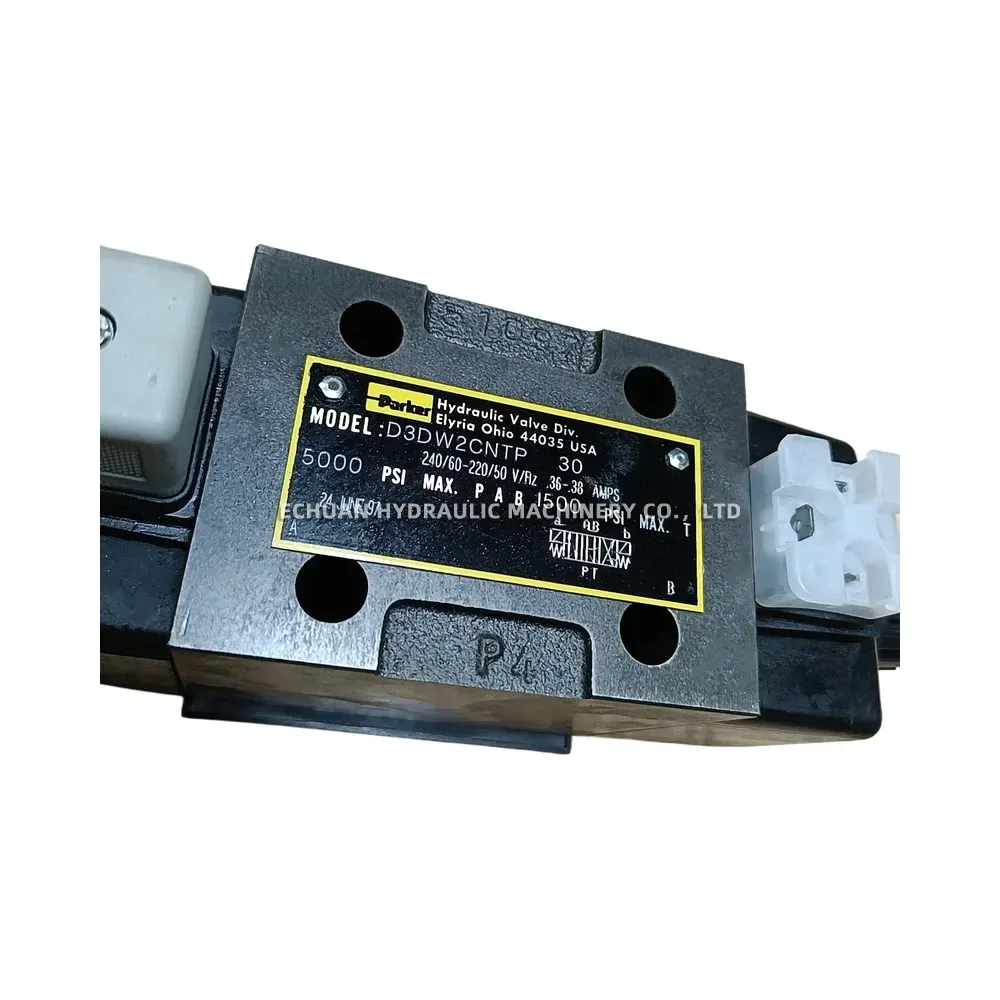

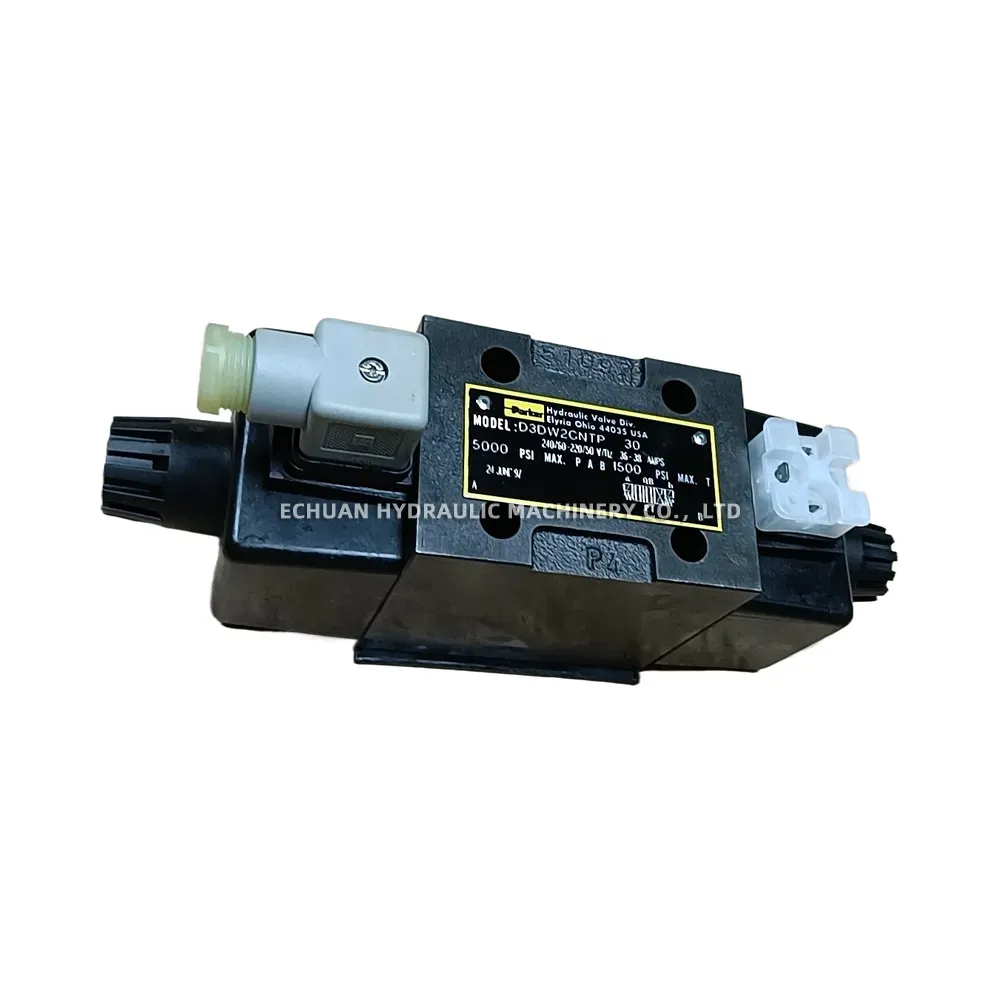

Parker D3DW2CNTP-30 Hydraulic Solenoid Directional Control Valve
The Parker D3DW2CNTP-30 is a high-performance, solenoid-operated directional control valve engineered for reliable fluid flow management in demanding industrial hydraulic systems. As part of Parker’s proven D3DW series, this valve utilizes an NG10 (D03) subplate mounting interface and features a versatile 3-position spool configuration. It is equipped with double AC solenoids that include manual override knobs, allowing for precise control, easier setup, and convenient troubleshooting. Built to withstand rigorous operating conditions, the valve delivers a maximum operating pressure of 5000 PSI on ports P, A, and B, alongside a 1500 PSI capacity on port T, making it an excellent choice for heavy-duty hydraulic directional control applications.
Technical Specifications:
- Brand: Parker
- Model: D3DW2CNTP-30
- Valve Series: D3DW Solenoid-Operated Directional Control
- Mounting Interface: NG10 (D03) Subplate Mounting
- Actuation Type: Double AC Solenoid with Manual Override Knobs
- Spool Configuration: 3-Position Spool
- Maximum Pressure (Ports P, A, B): 5000 PSI
- Maximum Pressure (Port T): 1500 PSI
- Coil Voltage / Frequency: 240V at 60Hz / 220V at 50Hz
- Amperage Rating: 0.36 – 0.38 AMPS
- Country of Origin: Made in U.S.A.
Parker D3DW2CNTP-30 Hydraulic Solenoid Directional Control Valve
Shop the Parker D3DW2CNTP-30 Hydraulic Solenoid Directional Control Valve. This rugged NG10 (D03) subplate valve features a 3-position spool, double AC solenoids (220V/240V) with manual overrides, and handles up to 5000 PSI. Ideal for precise and reliable fluid routing in industrial hydraulic systems.
| Brand | Parker |
|---|---|
| Model | D3DW2CNTP-30 |
| Part No. | 868070721265 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/parker-d3dw2cntp-30-hydraulic-solenoid-directional-control-valve |
