Product Description

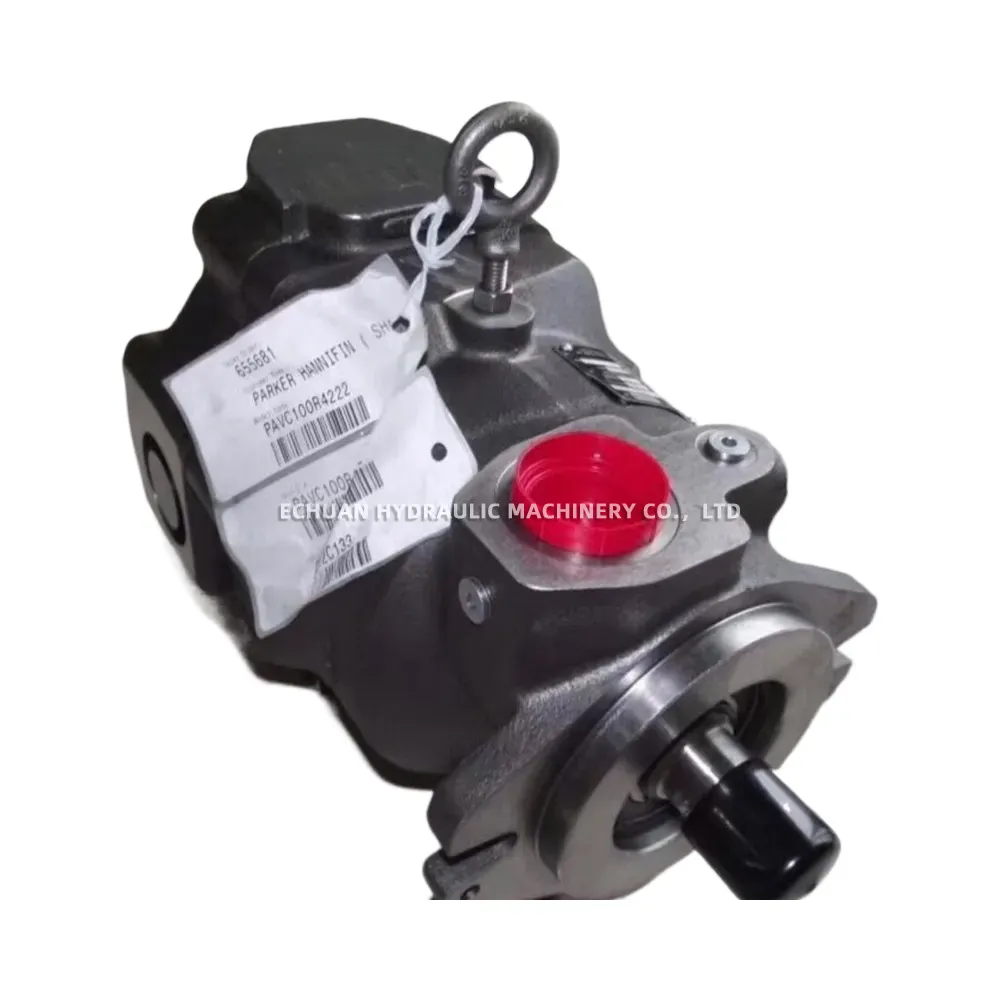

Parker PAVC100R4222

The Parker PAVC100R4222 is a variable displacement, axial piston pump designed for high-pressure open-circuit applications. It features a robust cast iron housing for durability and a unique “supercharged” design with a built-in charge pump, which allows for higher operating speeds and improved suction capabilities. This pump is known for its reliability, long service life, and relatively low noise levels. The pressure compensator control automatically adjusts the pump’s displacement to maintain a set system pressure, making it highly efficient for a wide range of industrial and mobile hydraulic systems.

Technical Specifications:

  • Pump Type: Variable Displacement Axial Piston Pump
  • Series: PAVC
  • Displacement: 100 cm³/rev (6.10 in³/rev)
  • Maximum Continuous Operating Pressure: 210 bar (3000 PSI)
  • Maximum Intermittent Operating Pressure: 240 bar (3500 PSI)
  • Maximum Speed: 1800 RPM
  • Rotation: R – Right Hand (Clockwise)
  • Mounting Flange: SAE ‘C’ 2-Bolt
  • Shaft Type: SAE ‘C’ Splined (1-1/4″ 14T)
  • Control Type: Pressure Compensator with Maximum Volume Stop
  • Housing Material: Cast Iron

Parker PAVC100R4222

Model:Parker PAVC100R4222
