Parker PV180R1K1T1WMMC

The Parker PV180R1K1T1WMMC is a high-performance, variable displacement axial piston pump from the robust PVplus series. Designed for demanding open-circuit industrial applications, this pump features a durable swashplate design that ensures high efficiency, low noise levels, and a long service life. Its fast response times and pressure compensation control make it ideal for systems requiring precise and reliable hydraulic power. The modular design, including a through-drive capability, allows for flexible integration into complex hydraulic systems, such as those found in presses, injection molding machines, and heavy industrial equipment.

Technical Specifications:

  • Product Type: Variable Displacement Axial Piston Pump
  • Series: PVplus
  • Displacement: 180 cm³/rev (11.0 in³/rev)
  • Maximum Continuous Operating Pressure: 350 bar (5075 psi)
  • Maximum Peak Pressure: 420 bar (6090 psi)
  • Control Type: Pressure Compensator (W) with Maximum Displacement Limiter (M)
  • Mounting Flange: SAE C, 4-Bolt (K1)
  • Shaft Type: Splined Shaft, SAE C, 14 Tooth (T1)
  • Direction of Rotation: Clockwise / Right Hand (R1)
  • Thru-Drive Capability: SAE C (C)
  • Porting: SAE Flange Ports

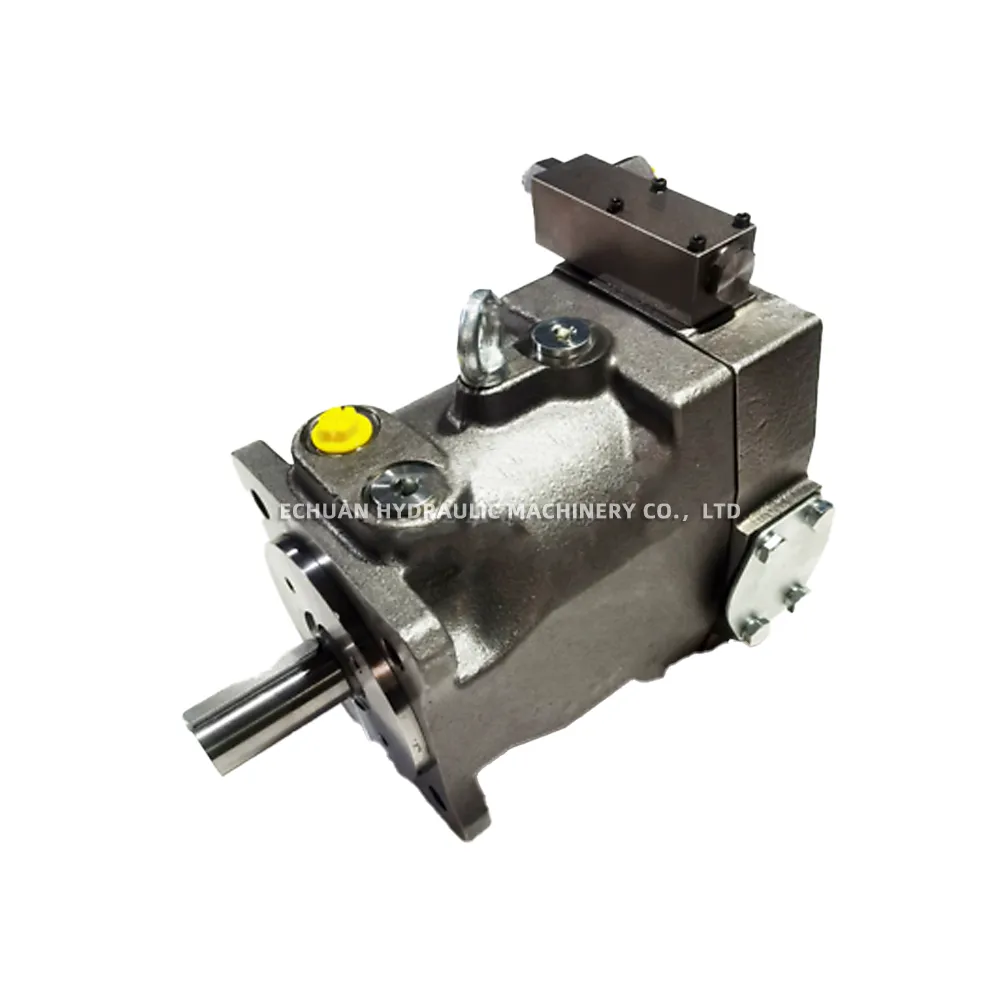

Parker PV180R1K1T1WMMC - Image 1

Parker PV180R1K1T1WMMC - Image 2

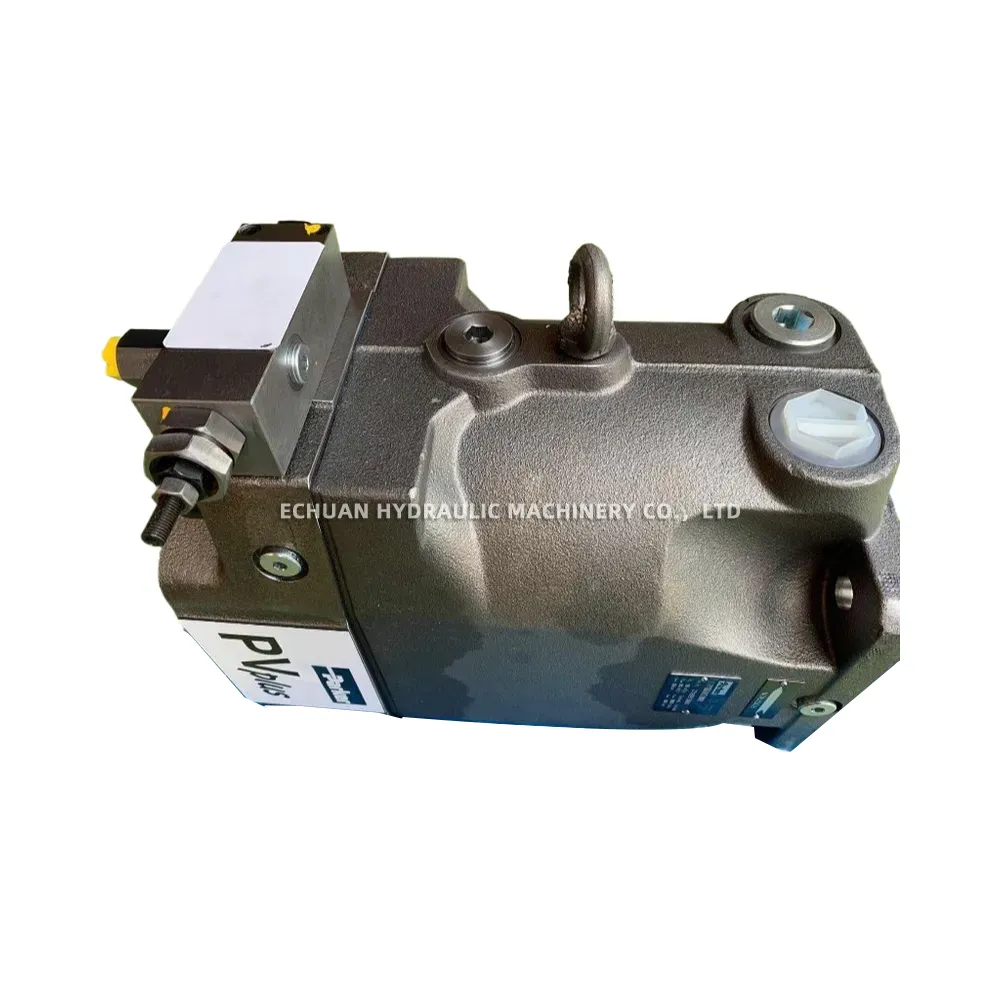

Parker PV180R1K1T1WMMC - Image 3

Parker PV180R1K1T1WMMC

Model:Parker PV180R1K1T1WMMC

BrandParker
ModelPV180R1K1T1WMMC
Part No.Parker PV180R1K1T1WMMC
CategoryHydraulic pumps
