Product Description
Parker PV140R1K1T1NMMC

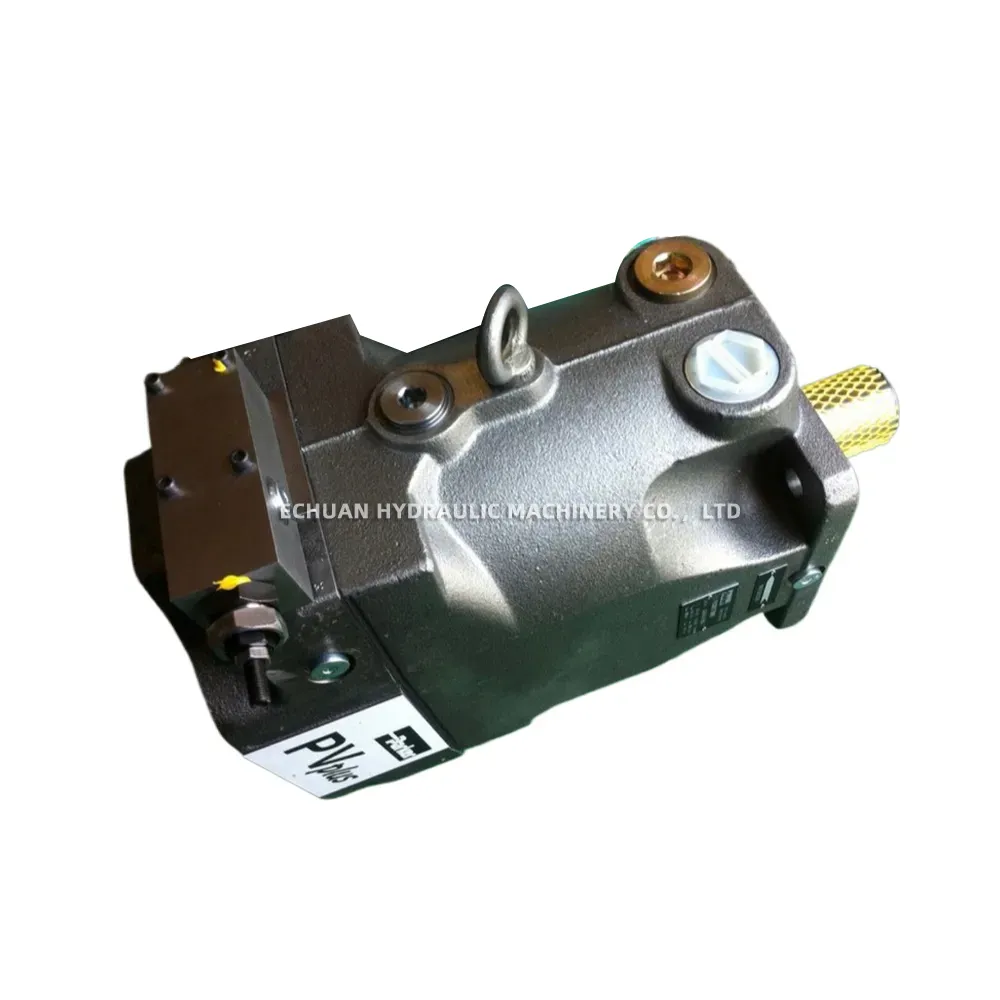

The Parker PV140R1K1T1NMMC is a high-performance variable displacement axial piston pump from Parker’s renowned PVplus series. Engineered for demanding open-circuit industrial hydraulic systems, it features a robust swashplate design that ensures high efficiency, low operational noise, and extended service life. This model offers a displacement of 140 cm³/rev and is configured for clockwise rotation when viewed from the shaft end. It comes equipped with a keyed shaft (DIN 6885), an SAE C 4-bolt mounting flange, and SAE flange side ports. The NBR seals make it compatible with standard mineral oils. A key feature of this specific variant is its mechanical maximum displacement limiter (MMC), providing precise control over the pump’s output. The PV140R1K1T1NMMC is a reliable solution for applications requiring consistent hydraulic power and durability.
Technical Specifications:
- Pump Type: Axial Piston Pump, Variable Displacement, Swashplate Design
- Series: PVplus
- Displacement (Geometric): 140 cm³/rev (8.54 in³/rev)
- Nominal Operating Pressure: 350 bar (5075 psi)
- Peak Operating Pressure: 420 bar (6090 psi)
- Max. Continuous Speed (at nominal pressure): 1800 rpm
- Direction of Rotation (viewed on shaft end): Clockwise (R)
- Shaft End: Keyed shaft, DIN 6885 (1)
- Mounting Flange: SAE C 4-bolt (K)
- Ports: SAE flange connections, side ports, opposite (1)
- Seals: NBR (Nitrile Butadiene Rubber), for mineral oil (T)
- Control Type: Mechanical Maximum Displacement Limiter (MMC)
- Fluid Temperature Range (NBR seals): -25°C to +80°C (-13°F to +176°F)
- Recommended Fluid Viscosity Range: 10 to 300 mm²/s (cSt)
Parker PV140R1K1T1NMMC
Model：Parker PV140R1K1T1NMMC
