Product Description

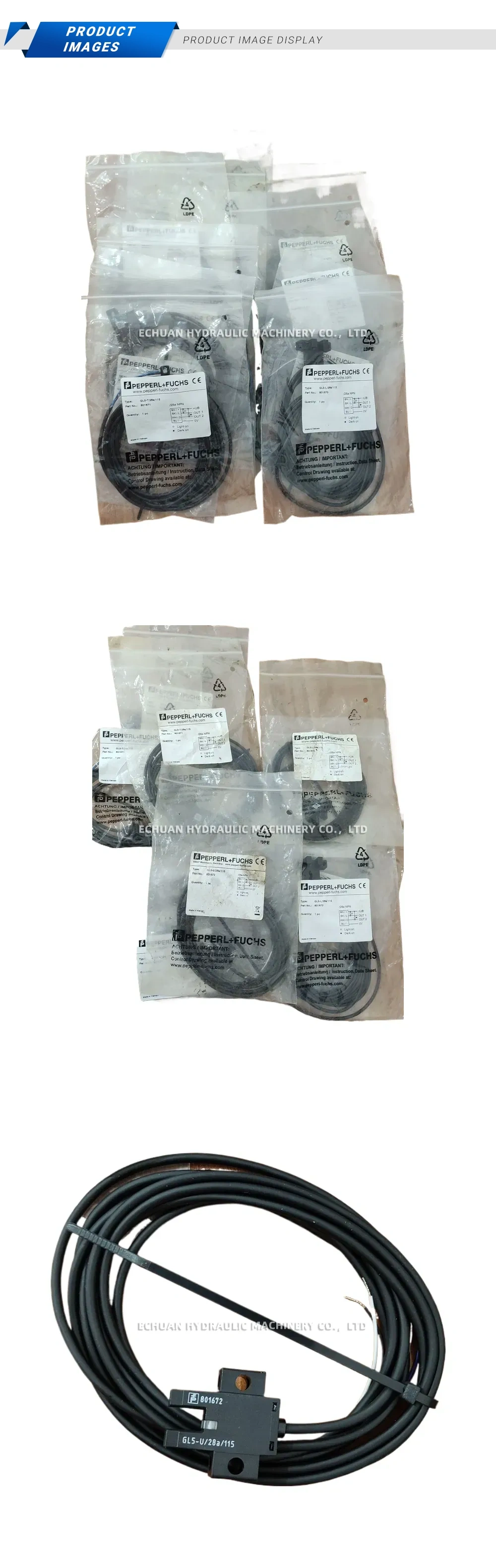

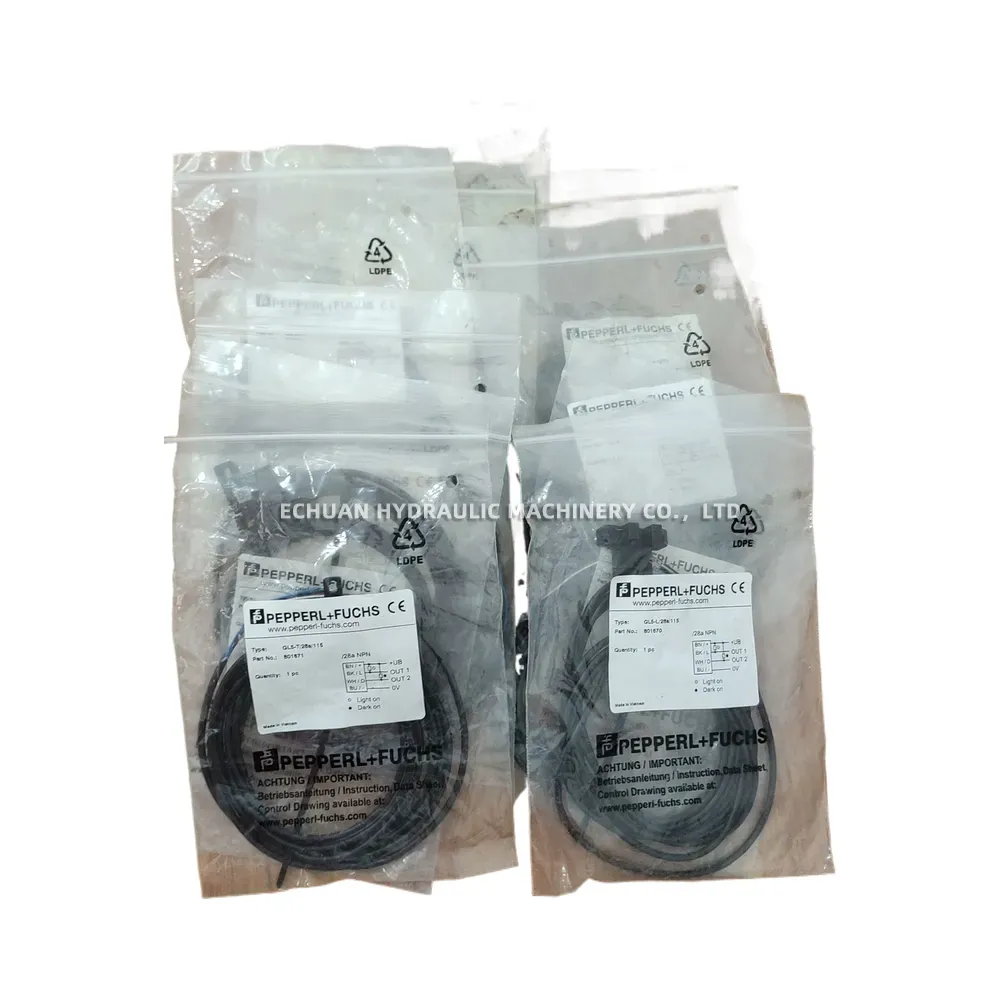

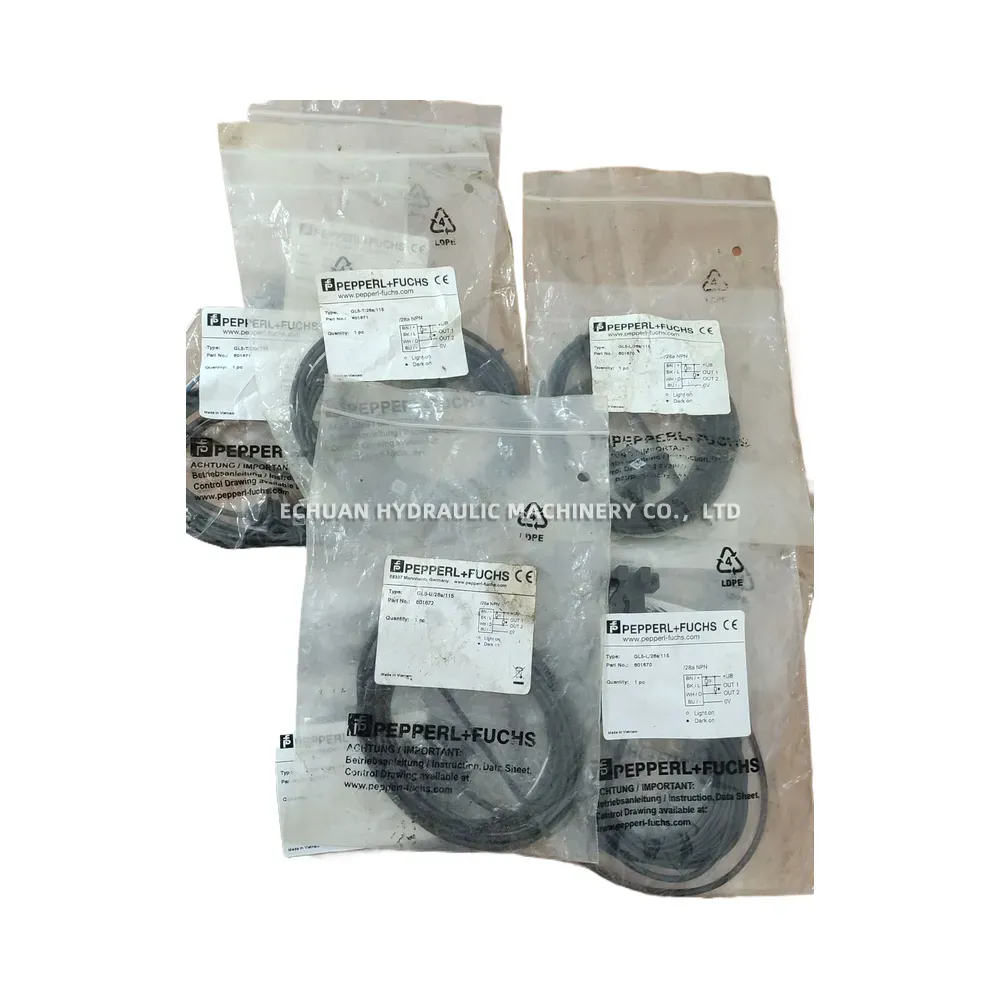

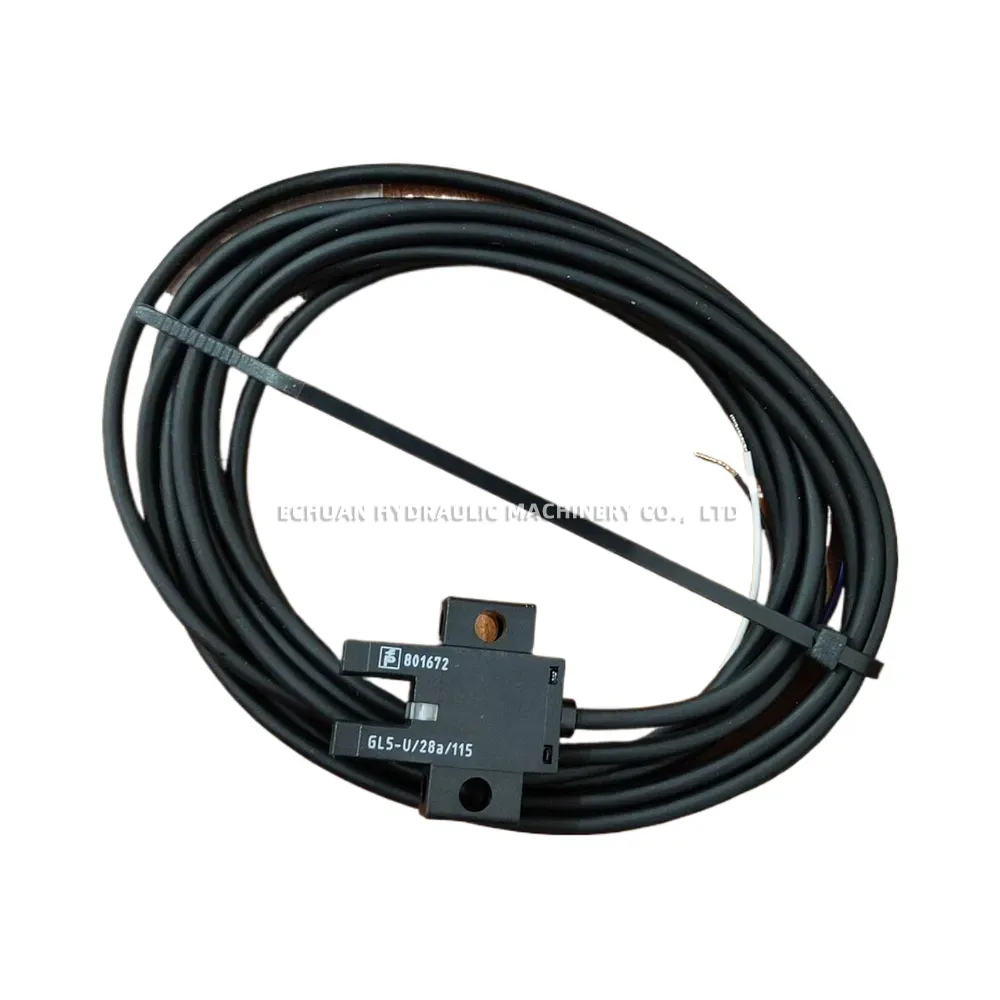

PEPPERL+FUCHS GL5-U/28a/115 Photoelectric Fork Sensor
The Pepperl+Fuchs GL5-U/28a/115 is a high-performance miniature photoelectric fork sensor designed for reliable detection in tight spaces. Its thru-beam fork design integrates the transmitter and receiver into a single housing, ensuring simple installation and precise alignment. This sensor is ideal for detecting small parts, labels, and gear teeth in automation and material handling applications. Featuring a fast switching frequency and a robust IP67-rated polycarbonate housing, the GL5-U/28a/115 delivers consistent performance in demanding industrial environments. The selectable light on/dark on modes and dual NPN outputs provide flexible integration options for various control systems.
Technical Specifications:
- Sensing Type: Thru-beam fork sensor
- Fork Width: 5 mm
- Light Source: Modulated infrared light (IRED), 880 nm
- Signal Output: 2 NPN outputs, complementary (light/dark on)
- Operating Voltage: 10 … 30 V DC
- Switching Frequency: 2000 Hz
- Connection: 2 m fixed cable
- Degree of Protection: IP67

PEPPERL+FUCHS GL5-U/28a/115 Photoelectric Fork Sensor
Discover the Pepperl+Fuchs GL5-U/28a/115, a miniature 5mm photoelectric fork sensor with dual NPN outputs. Ideal for precise small part and label detection with a high 2000 Hz switching frequency and IP67 protection.
| Brand | PEPPERL+FUCHS |
|---|---|
| Model | GL5-U/28a/115 |
| Part No. | 736884133930 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pepperlfuchs-gl5-u-28a-115-photoelectric-fork-sensor |
