Product Description

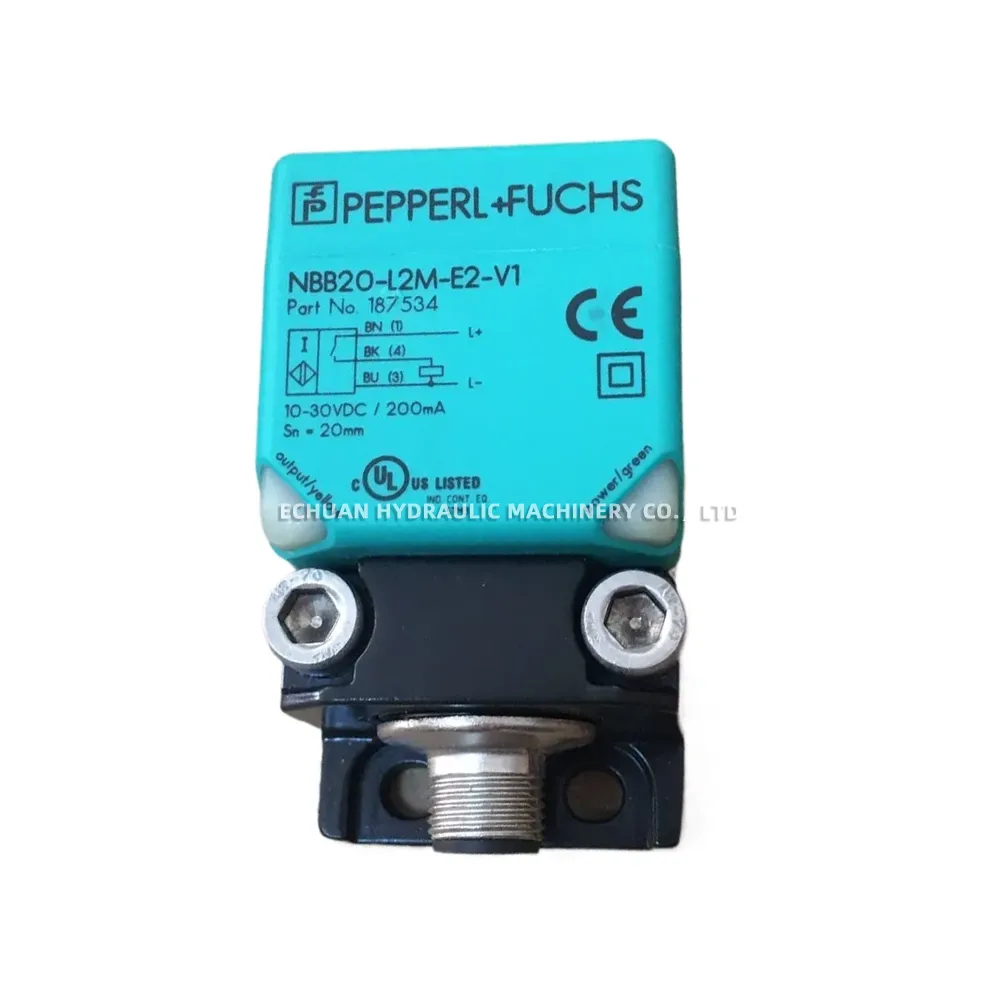

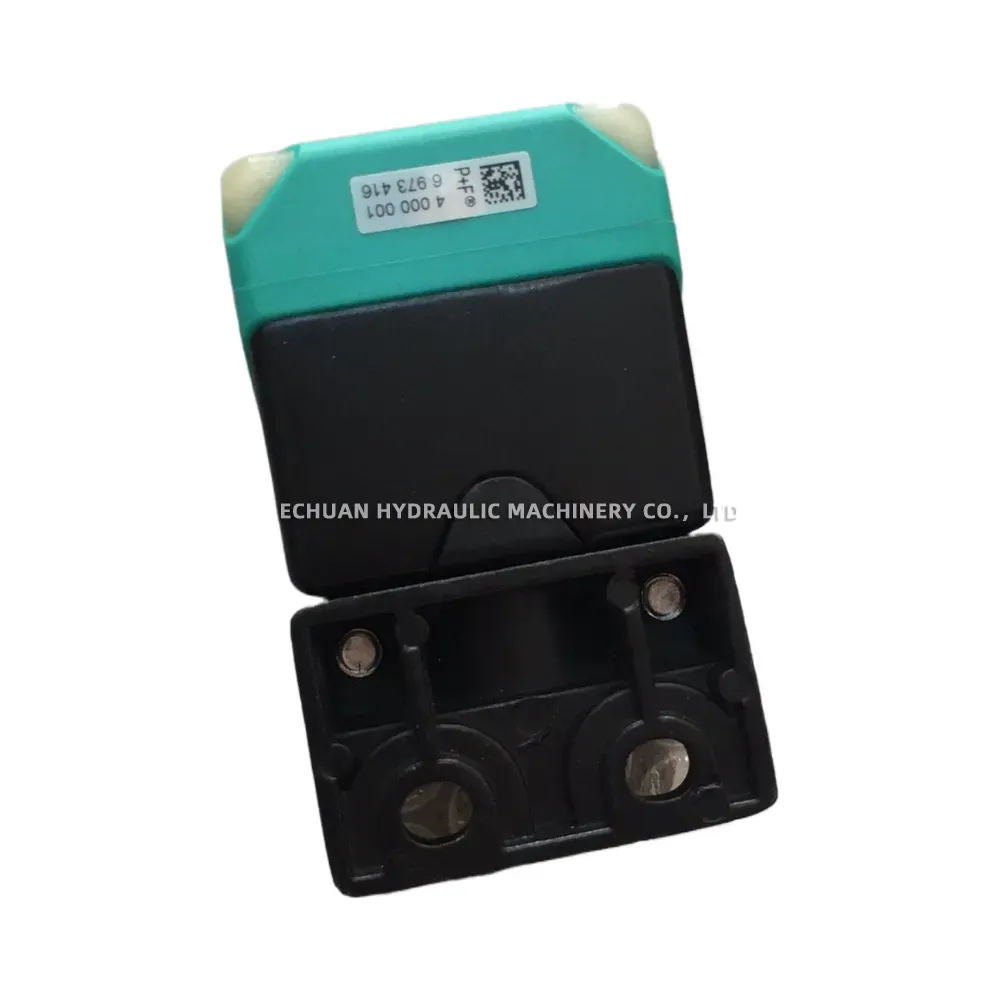

Pepperl+Fuchs NBB20-L2M-E2-V1
The Pepperl+Fuchs NBB20-L2M-E2-V1 is a high-performance inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial environments. Part of the VariKont L series, it features a robust rectangular PBT housing and offers an extended sensing range of 20 mm. This sensor is equipped with a PNP normally open (NO) output and a standard M12 connector for quick and secure installation. Its high degree of protection (IP68) ensures dependable operation even in harsh conditions, making it an ideal solution for applications in factory automation, material handling, and machine building.

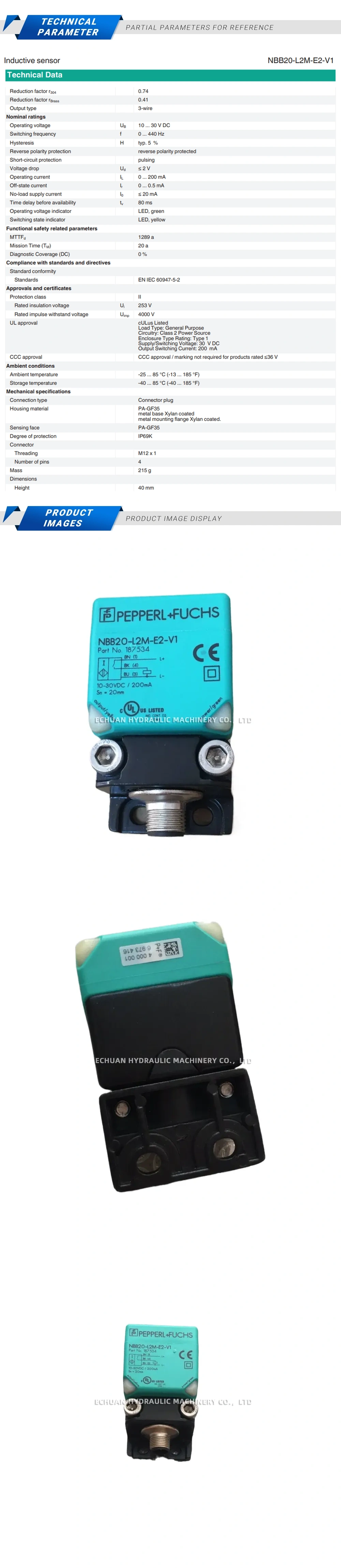

Technical Specifications:
- Rated operating distance (sn): 20 mm
- Installation: Non-flush
- Output type: PNP, Normally open (NO)
- Operating voltage (UB): 10 … 30 V DC
- Switching frequency (f): 0 … 440 Hz
- Connection type: M12 x 1 connector, 4-pin
- Degree of protection: IP68
- Housing material: PBT (Polybutylene terephthalate)
Pepperl+Fuchs NBB20-L2M-E2-V1
Discover the Pepperl+Fuchs NBB20-L2M-E2-V1 inductive sensor, featuring a 20mm non-flush sensing range, PNP NO output, and a rugged M12 connector. Ideal for reliable object detection in industrial automation.
| Brand | PEPPERL+FUCHS |
|---|---|
| Model | NBB20-L2M-E2-V1 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pepperlfuchs-nbb20-l2m-e2-v1 |
