Product Description
Pepperl+Fuchs HIC2025

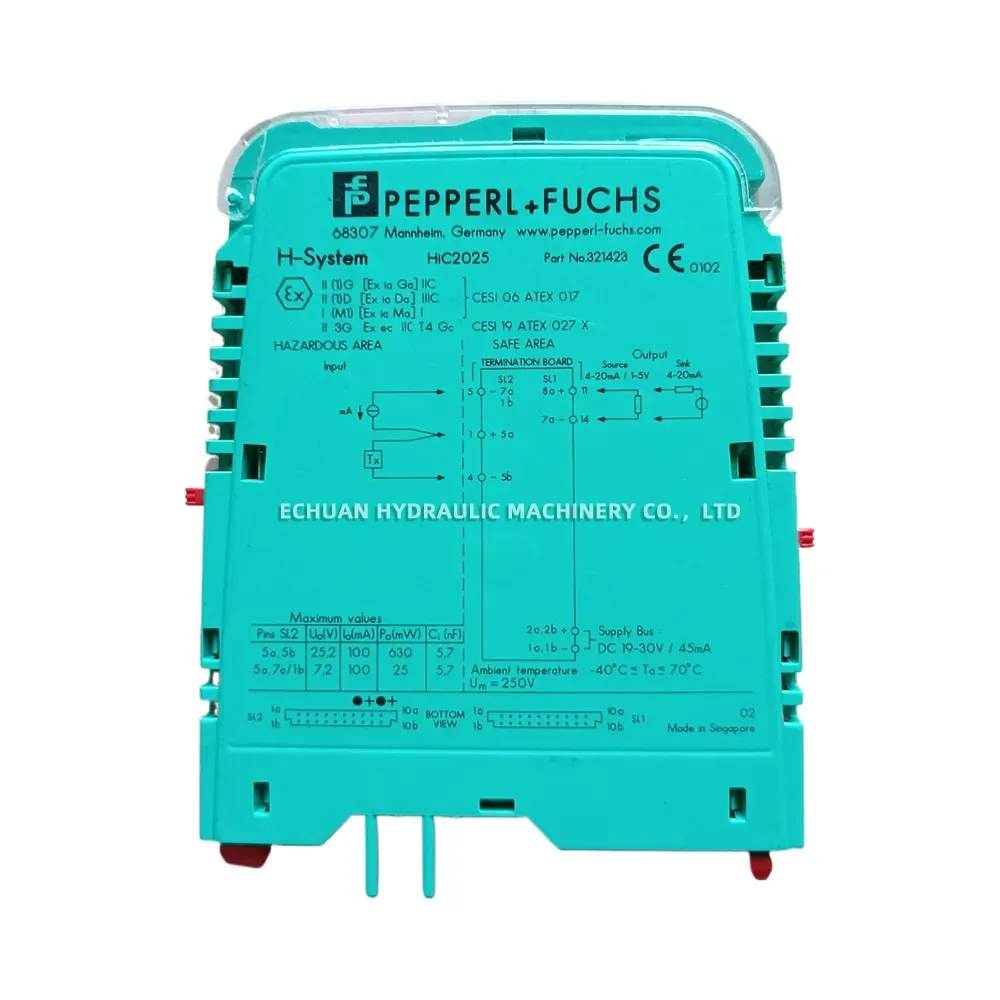

The Pepperl+Fuchs HIC2025 is a component of the HICTB08-HIC2025-BPC01 termination board, designed for use with the Pepperl+Fuchs H-System of isolated barriers. This termination board facilitates the connection of field devices to up to 8 H-System isolated barriers, streamlining wiring in control cabinets. It typically features screw terminals for field wiring, per-channel fusing with LED status indication, and supports a 24 V DC power supply, often with redundancy options. The HIC2025, as part of this assembly, is engineered for robust performance in industrial environments and is mounted on a standard DIN rail, simplifying installation and maintenance within automation systems.
Technical Specifications:
- Product Type: Termination Board (Full model: HICTB08-HIC2025-BPC01)
- Series: H-System
- Number of Channels: 8
- Rated Voltage: Max. 250 V AC/DC
- Rated Current: Max. 2 A per channel (fuse limited)
- Field Connection: Screw terminals (removable, max. wire cross-section 2.5 mm²)
- System Connection: Via system connector for H-System isolated barriers
- Supply Voltage: 24 V DC (operating range 18 … 30 V DC), redundant input capable
- Fuses: 2 A, slow-blow, one per channel
- Indicators: Green LED for power supply, Red LED for blown fuse (per channel)
- Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
- Storage Temperature: -25 °C to +85 °C (-13 °F to +185 °F)
- Mounting: DIN rail (EN 60715)
- Degree of Protection: IP20
- Dimensions (W x H x D): Approximately 106 mm x 128 mm x 75 mm
- Weight: Approximately 250 g
Pepperl+Fuchs HIC2025
Model:Pepperl+Fuchs HIC2025
