Product Description

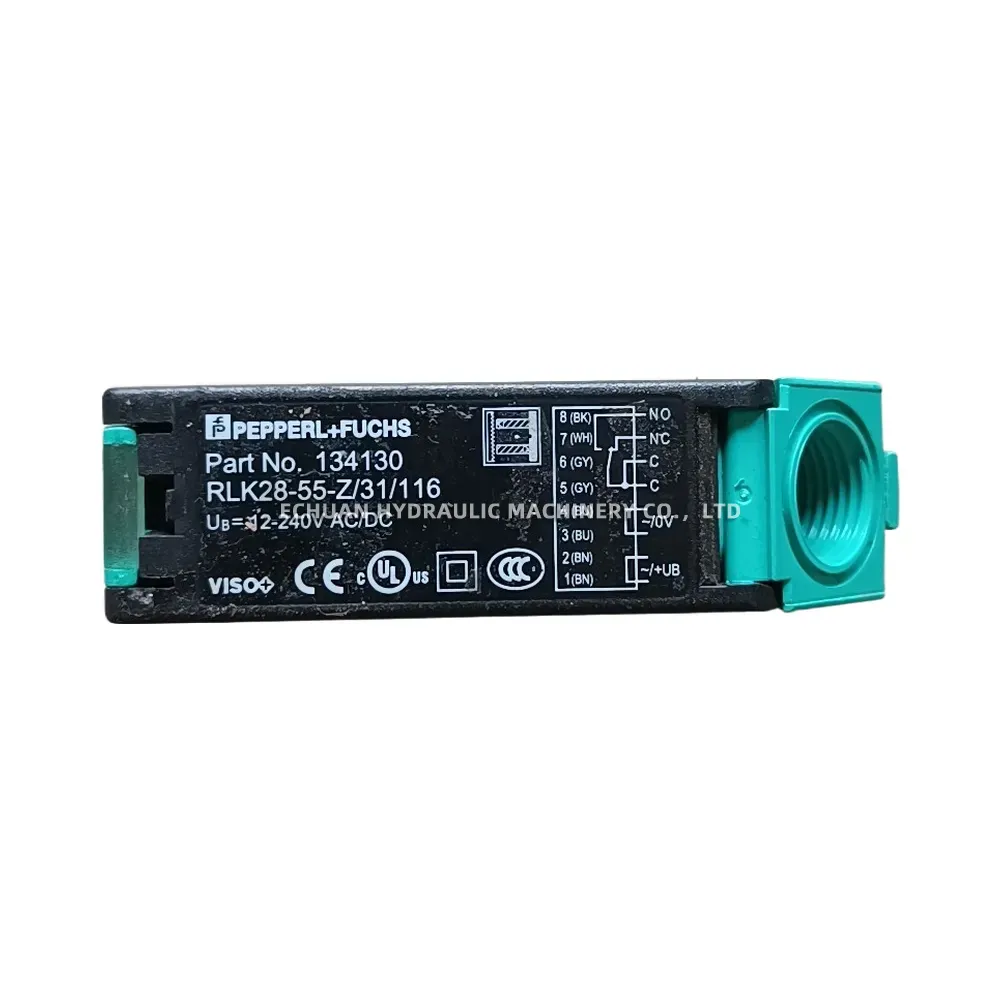

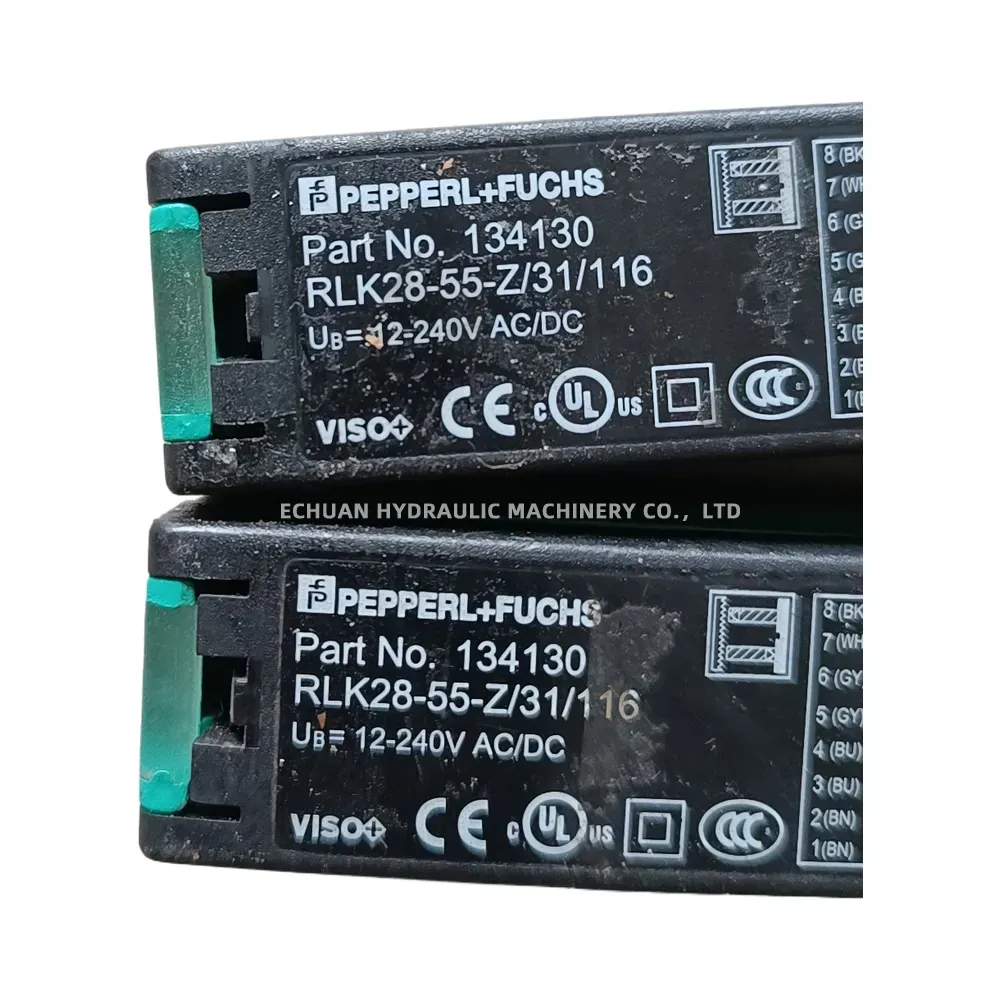

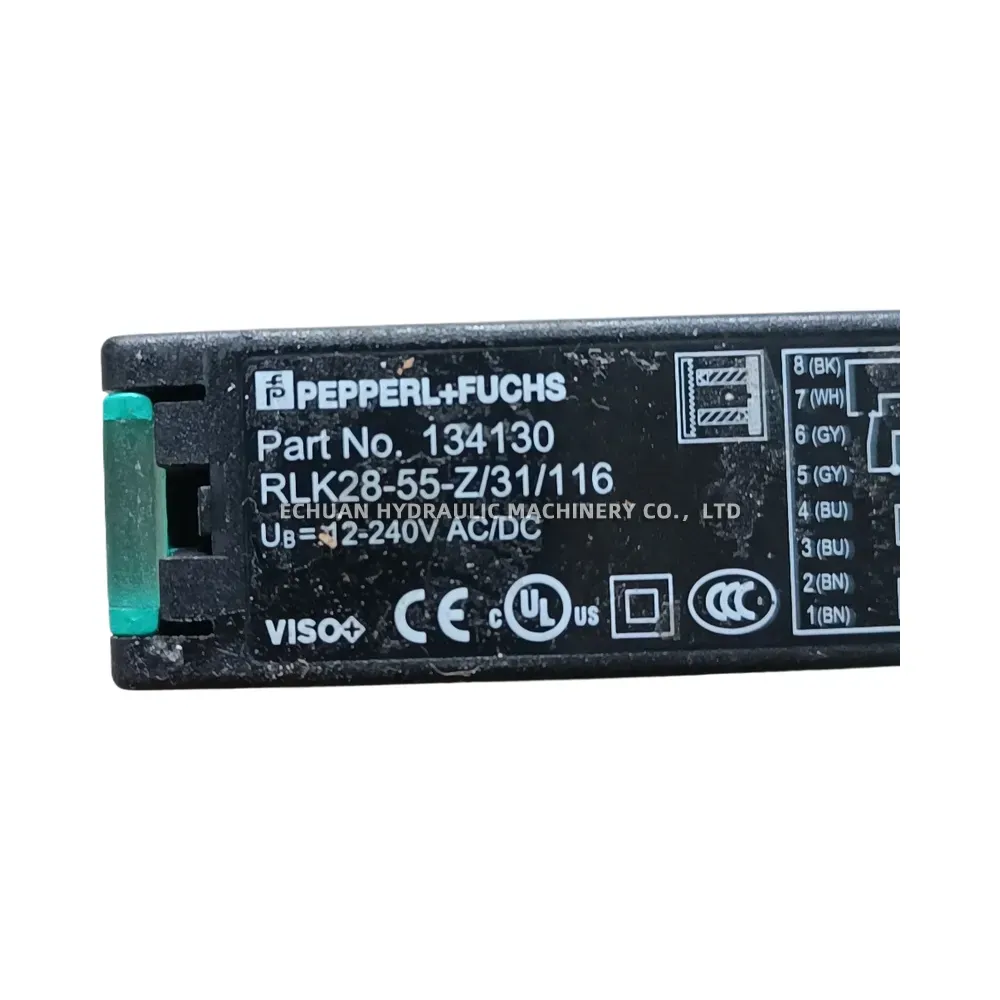

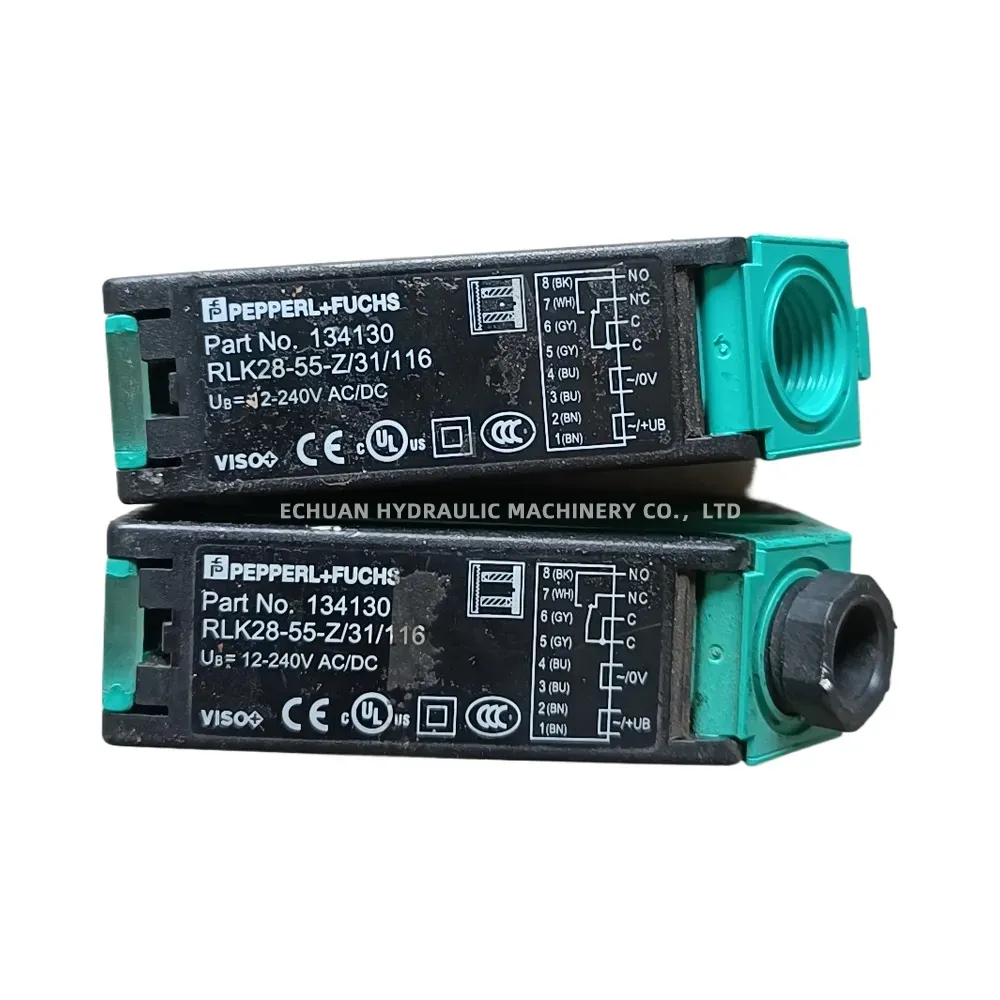

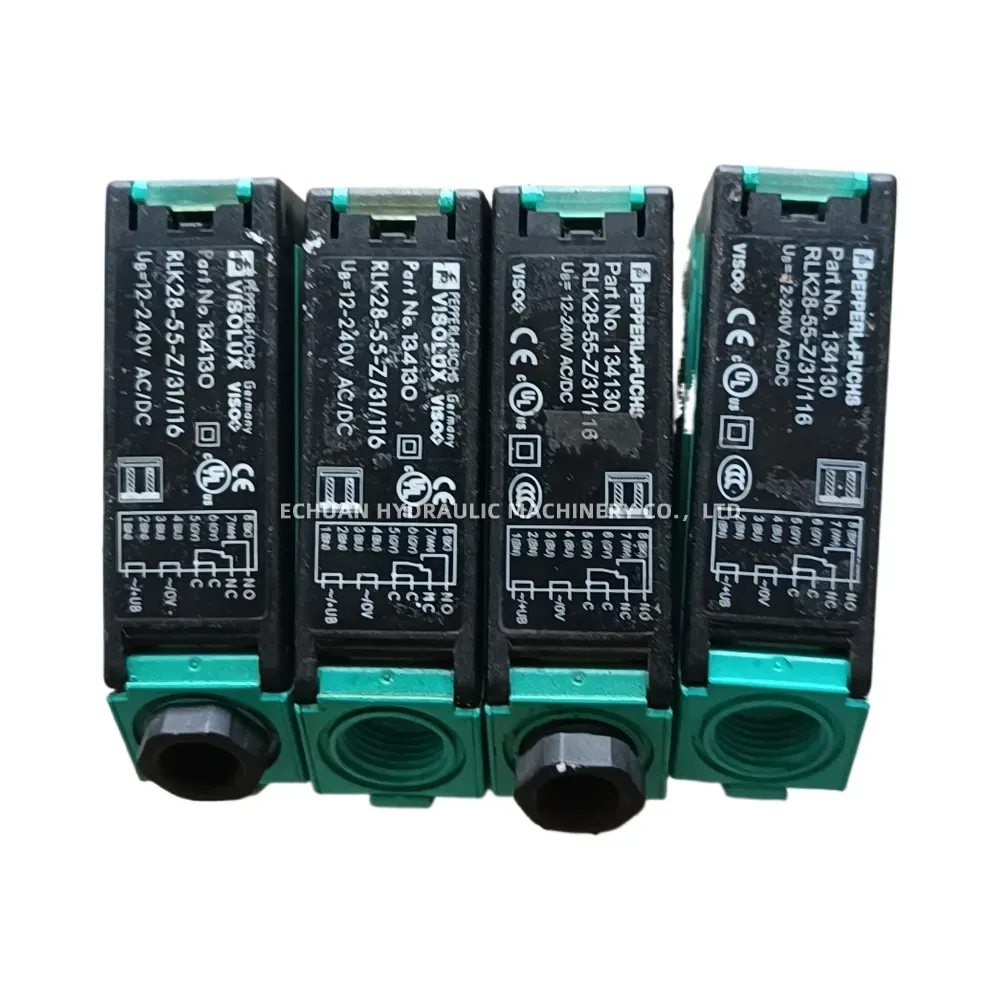

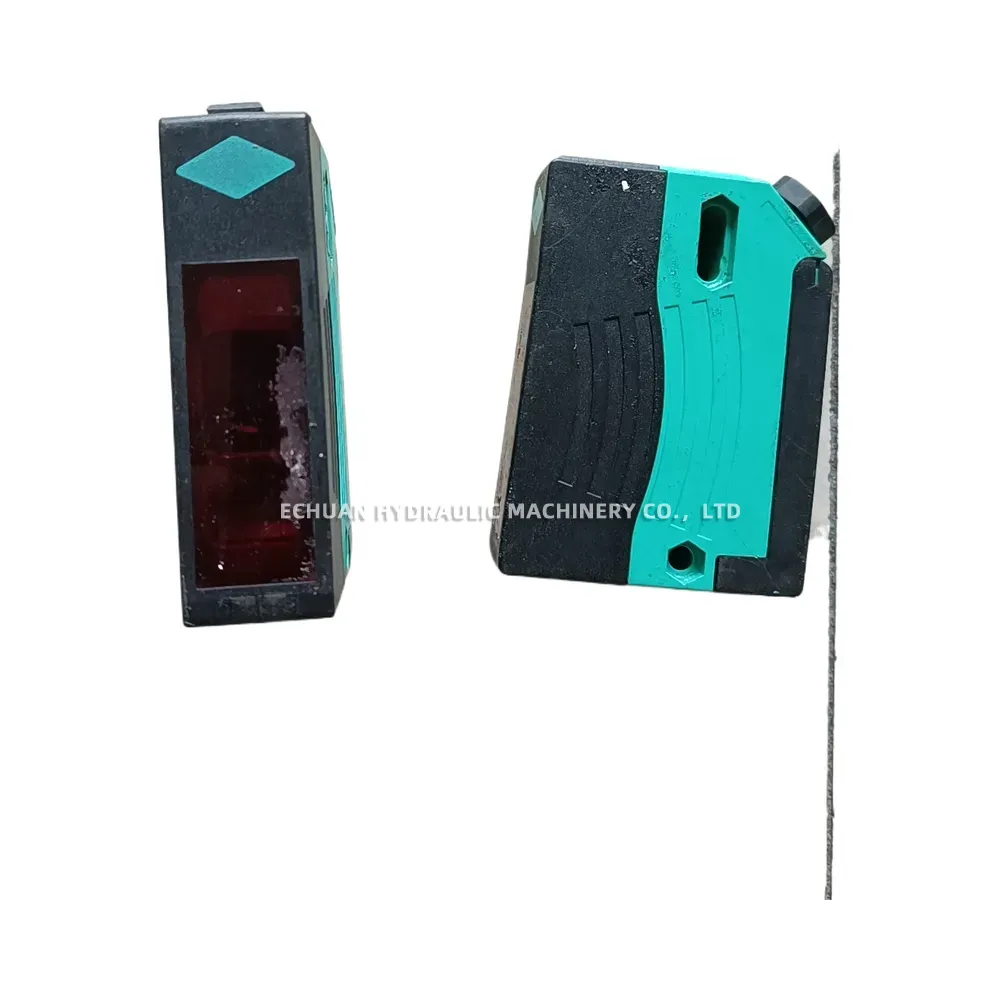

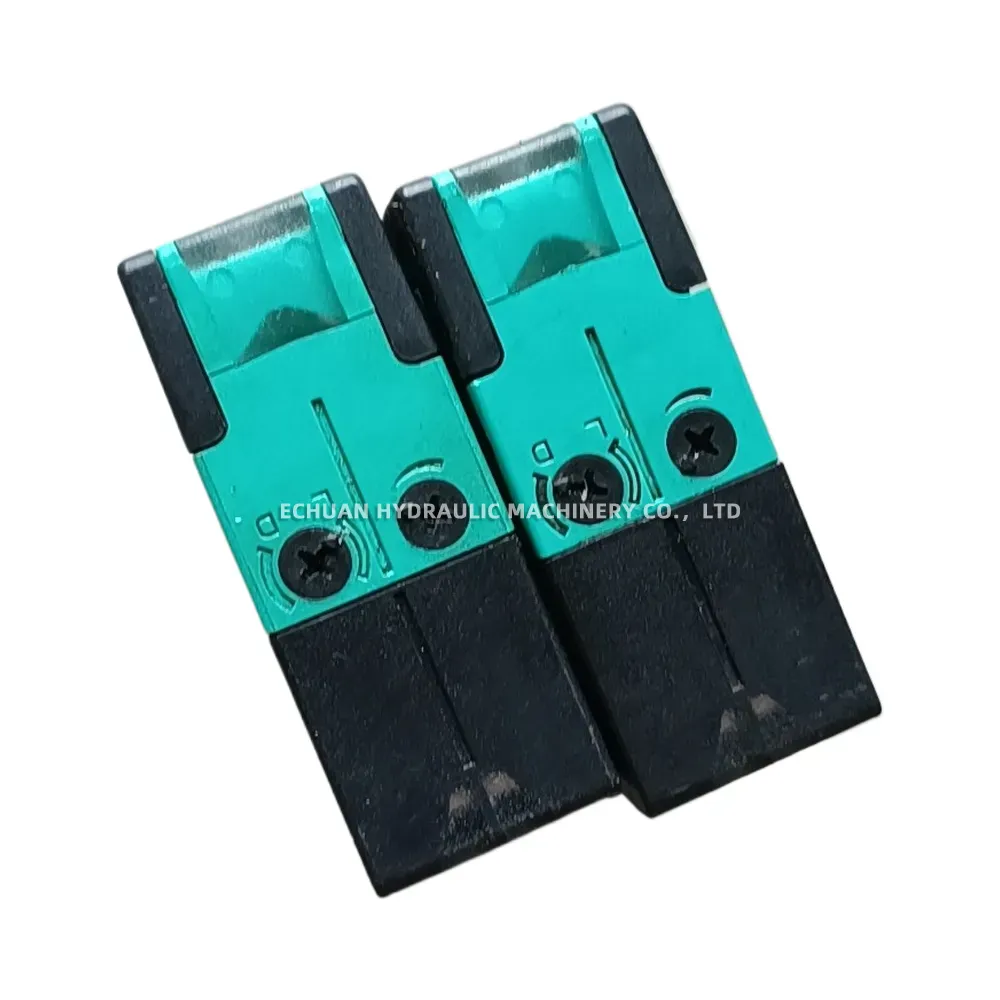

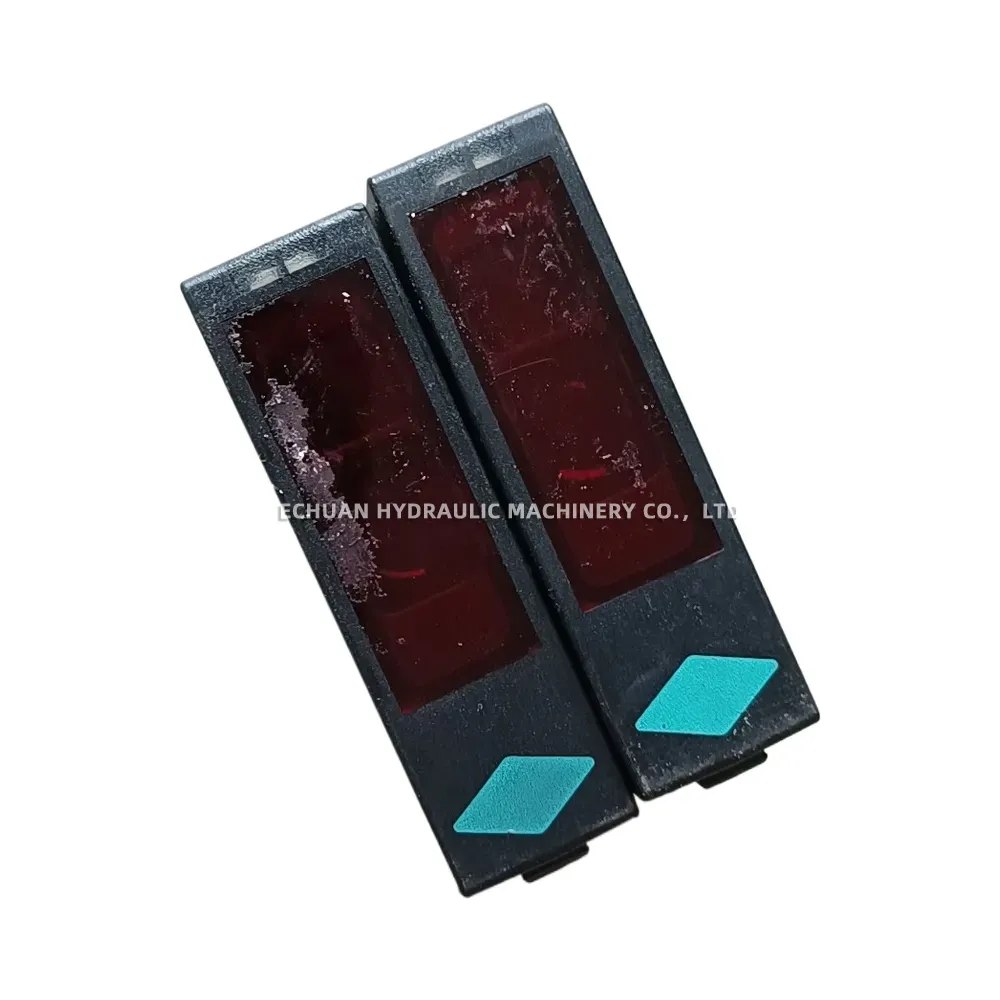

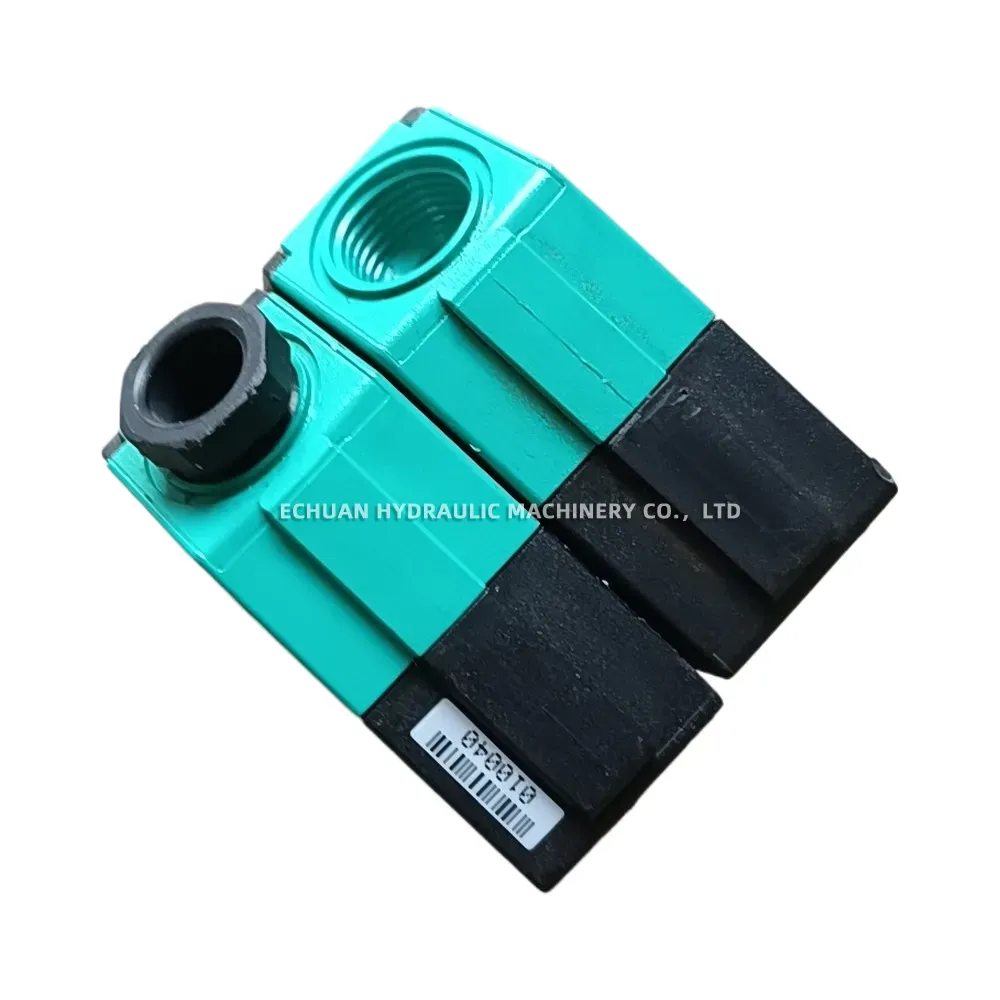

Pepperl+Fuchs RLK28-55-Z/31/116
The Pepperl+Fuchs RLK28-55-Z/31/116 is a versatile retroreflective sensor from the 28 series, designed for reliable object detection in various industrial applications. It incorporates a polarization filter, ensuring dependable detection even of shiny objects. This sensor features a highly visible LED for operational status and is notably insensitive to ambient light, including energy-saving lamps. The RLK28-55-Z/31/116 offers a PNP switching output which also supports IO-Link communication for enhanced diagnostics and parameterization. It is housed in a robust IP67-rated enclosure with an M12 connector for easy integration.

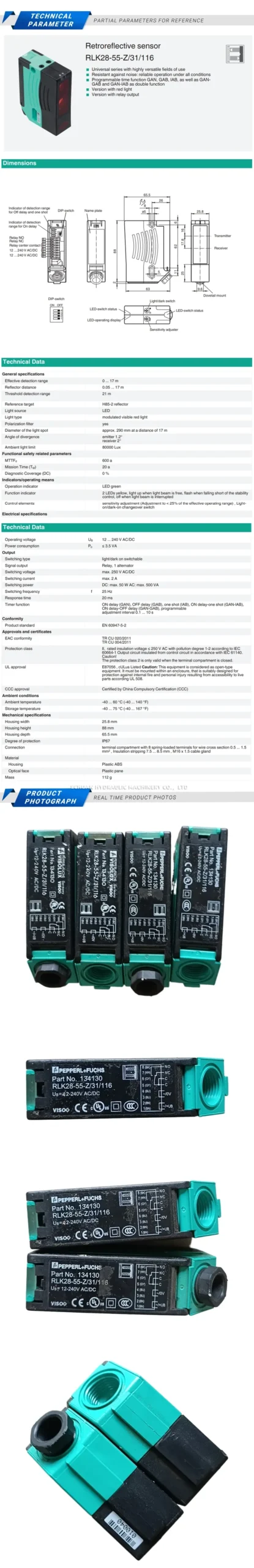

Technical Specifications:
- Sensor Type: Retroreflective sensor with polarization filter
- Effective Detection Range: 0 … 7 m (with H85-2 reflector)
- Reflector Distance: 0.05 … 7 m
- Light Source: Modulated visible red LED, 630 nm
- Operating Voltage: 10 … 30 V DC
- Output Type: 1 PNP output, short-circuit protected, reverse polarity protected, open collector
- Switching Type: Light on / dark on, selectable
- Interface: IO-Link (via C/Q = Pin 4)
- Switching Current: max. 100 mA
- Switching Frequency: 1000 Hz
- Response Time: 0.5 ms
- Ambient Light Limit: EN 60947-5-2 : 30000 Lux
- Ambient Temperature: -30 … 60 °C (-22 … 140 °F)
- Degree of Protection: IP67
- Connection: 4-pin M12 x 1 connector
- Housing Material: PC (Polycarbonate)
- Optical Face Material: PMMA
- Indicators: LED green (power on), LED yellow (switching state, stability control)
Pepperl+Fuchs RLK28-55-Z/31/116
Model:Pepperl+Fuchs RLK28-55-Z/31/116
| Brand | PEPPERL+FUCHS |
|---|---|
| Model | RLK28-55-Z/31/116 |
| Part No. | Pepperl+Fuchs RLK28-55-Z/31/116 |
