Product Description

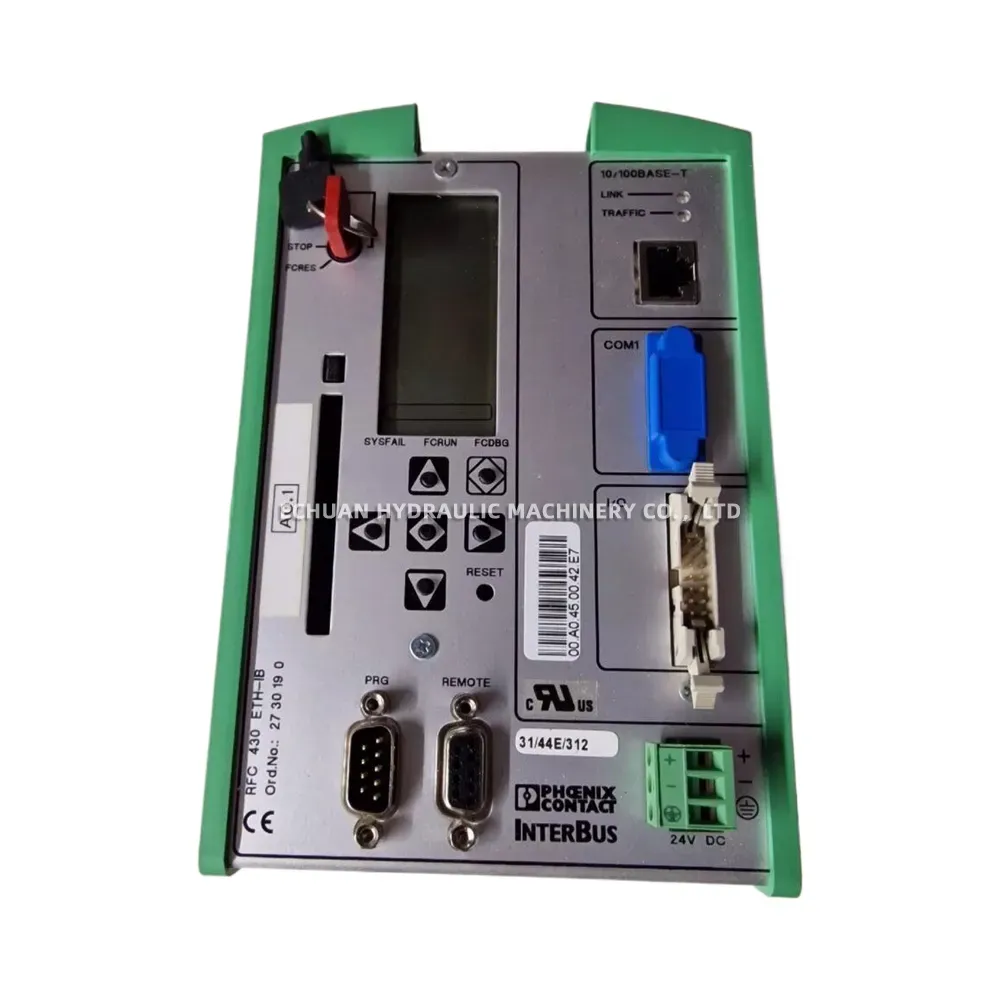

Phoenix Contact RFC 430 ETH-IB Remote Field Controller
The Phoenix Contact RFC 430 ETH-IB is a high-performance Remote Field Controller designed for complex industrial automation tasks. It combines the functionality of a programmable logic controller (PLC) conforming to IEC 61131 with an integrated INTERBUS master and a 10/100BASE-T Ethernet interface. This powerful combination allows it to act as a reliable gateway between Ethernet TCP/IP networks and the robust INTERBUS fieldbus system. Equipped with an LCD for on-site diagnostics and multiple communication ports, the RFC 430 ETH-IB is an ideal solution for managing decentralized control logic, data acquisition, and communication in sophisticated machinery and plant control systems.
Technical Specifications:
- Order Number: 2730190
- Supply Voltage: 24 V DC (19.2 V DC … 30 V DC)
- Interfaces: 1x Ethernet (10/100 Mbps, RJ45), 1x INTERBUS (D-SUB 9), 1x COM1 (RS-232), 1x PRG (RS-232)
- Fieldbus System: Integrated INTERBUS master for up to 512 I/O devices
- Programming: PC WORX automation software in accordance with IEC 61131-3
- Display: Integrated LCD for status and diagnostics
Phoenix Contact RFC 430 ETH-IB Remote Field Controller
Shop the Phoenix Contact RFC 430 ETH-IB (2730190), a powerful Remote Field Controller with an integrated INTERBUS master and Ethernet TCP/IP interface for advanced industrial automation and distributed control applications.
| Brand | Phoenix Contact |
|---|---|
| Model | RFC 430 ETH-IB |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/phoenix-contact-rfc-430-eth-ib-remote-field-controller |
