Product Description

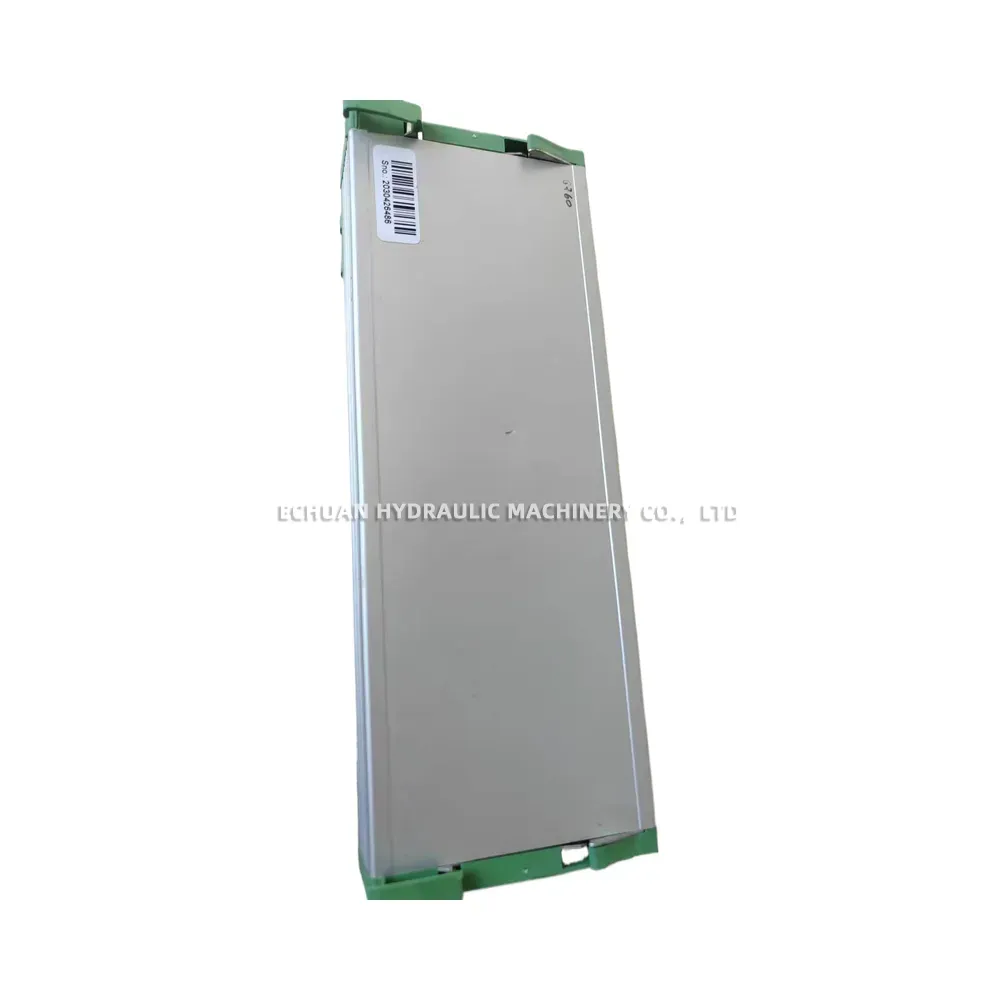

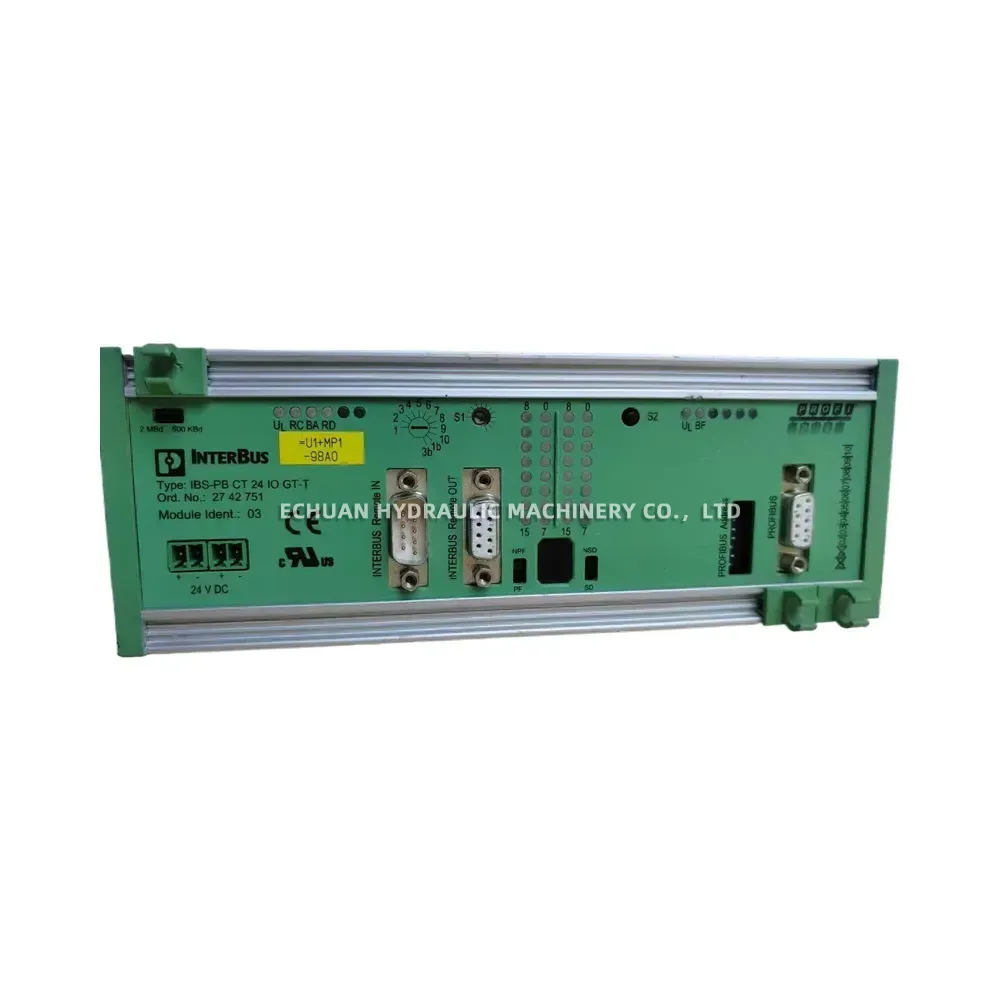

Phoenix IBS-PB CT 24 IO GT-T
The Phoenix Contact IBS-PB CT 24 IO GT-T is a versatile INTERBUS-CT I/O module, specifically engineered for seamless integration into PROFIBUS DP automation systems. This module offers a robust I/O solution with 24 digital inputs (24 V DC) and 24 digital outputs (24 V DC, 0.5 A per channel). Housed in a compact IP20-rated enclosure, it supports high-speed data transmission up to 12 Mbps, making it an ideal choice for distributed I/O tasks in demanding industrial environments.
Technical Specifications:
- Product Type: INTERBUS-CT I/O module for PROFIBUS DP
- Bus System: PROFIBUS DP
- Number of Digital Inputs: 24
- Input Voltage (Digital Inputs): 24 V DC
- Number of Digital Outputs: 24
- Output Voltage (Digital Outputs): 24 V DC
- Output Current per Channel (Digital Outputs): 0.5 A
- Transmission Speed: Up to 12 Mbps
- Degree of Protection: IP20
- PROFIBUS Connection: D-SUB-9 female connector
- I/O Connection Technology: Spring-cage connection
- Supply Voltage (Module Electronics & Outputs): 24 V DC (-15 % / +20 %)
- Ambient Temperature (Operation): 0 °C to 55 °C
- Dimensions (W x H x D): 162 mm x 116 mm x 55 mm
- Manufacturer Part Number: 2719844
Phoenix IBS-PB CT 24 IO GT-T
Model:Phoenix IBS-PB CT 24 IO GT-T
