Product Description
Phoenix PSR-SCP-24UC/URM/5X1/2X2
The Phoenix Contact PSR-SCP-24UC/URM/5X1/2X2 is a versatile safety relay designed for critical safety applications such as emergency stop monitoring, safety door supervision, and light grid evaluation. This module ensures high operational safety, complying with standards up to SIL 3, Category 4, and PL e. It supports both 1 and 2-channel operation and offers flexibility with automatic or manual, monitored start-up options. Featuring five enabling current paths and two signaling current paths, it provides comprehensive control and feedback for your safety circuits. The universal 24V AC/DC supply voltage and convenient plug-in screw terminals make installation and integration straightforward in a wide range of industrial environments.

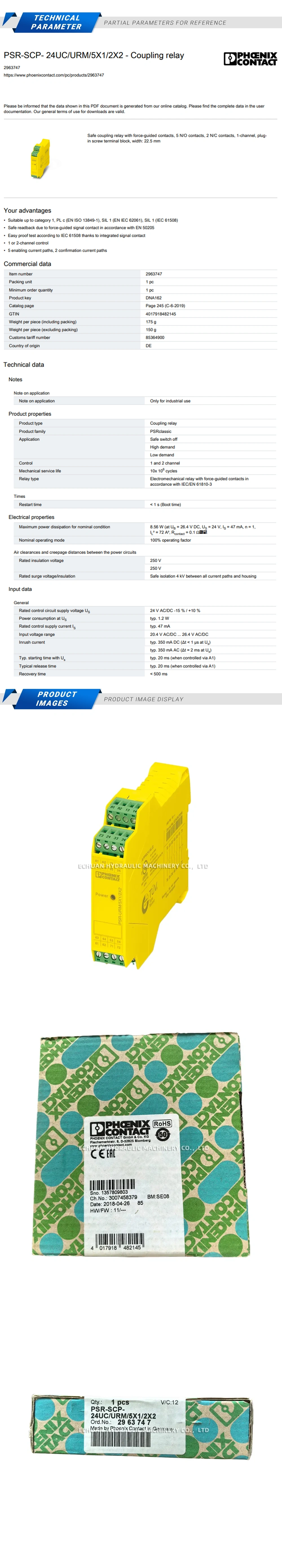

Technical Specifications:
- Model: PSR-SCP-24UC/URM/5X1/2X2
- Nominal Input Voltage (U_N): 24 V AC/DC
- Outputs: 5 N/O (enabling current paths), 2 N/C (signaling current paths)
- Safety Integrity Level (SIL): Up to SIL 3 (IEC 61508)
- Performance Level (PL): Up to PL e (EN ISO 13849-1)
- Connection Method: Plug-in screw terminal block
- Dimensions (W x H x D): 22.5 mm x 99 mm x 114.5 mm
Phoenix PSR-SCP-24UC/URM/5X1/2X2
Buy the Phoenix Contact PSR-SCP-24UC/URM/5X1/2X2 safety relay for reliable emergency stop and safety door monitoring. Features 24V AC/DC supply, 5 enabling paths, and SIL 3 / PL e compliance.
| Brand | Phoenix |
|---|---|
| Model | PSR-SCP-24UC/URM/5X1/2X2 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/phoenix-psr-scp-24uc-urm-5x1-2x2 |
