Product Description

Phoenix UK5N

The Phoenix Contact UK 5 N is a high-quality, universal feed-through terminal block featuring the proven and reliable screw connection technology. Designed for mounting on standard DIN rails, this terminal block provides a secure, space-saving, and organized solution for a wide range of wiring applications. Its robust construction and user-friendly design make it an industry-standard choice for control cabinets, distribution boards, and various industrial automation systems. As part of the comprehensive CLIPLINE complete system, it ensures maximum flexibility and compatibility with a wide range of accessories.

Technical Specifications:

  • Rated Voltage (III / 3): 800 V

  • Nominal Current: 32 A

  • Connection Method: Screw connection

  • Conductor Cross Section: 0.2 mm² – 6 mm² (AWG 24 – 10)

  • Width: 6.2 mm

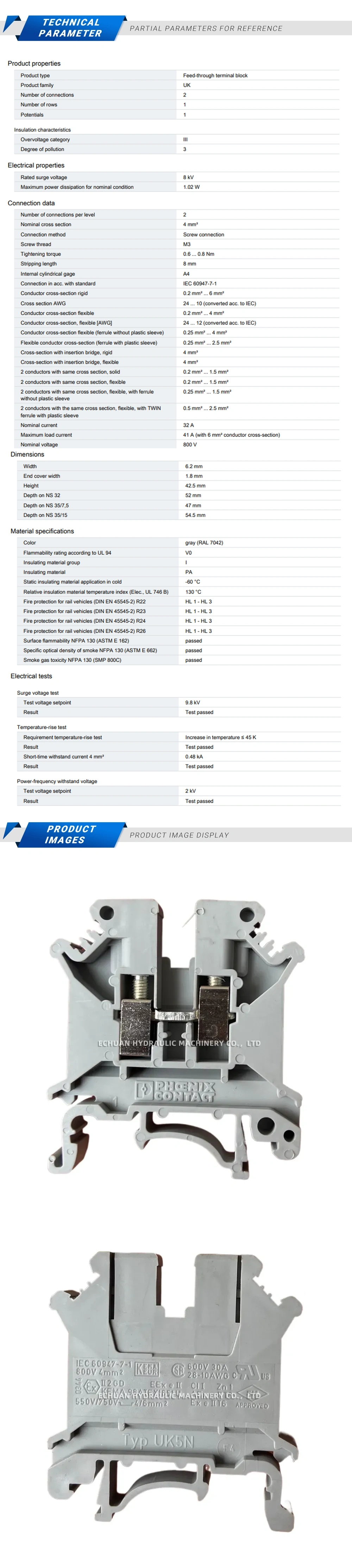

Phoenix UK5N Description

Phoenix UK5N

High-quality Phoenix Contact UK 5 N feed-through terminal block with a reliable screw connection. Ideal for DIN rail mounting, supporting wire sizes from 0.2 to 6 mm².
