Product Description

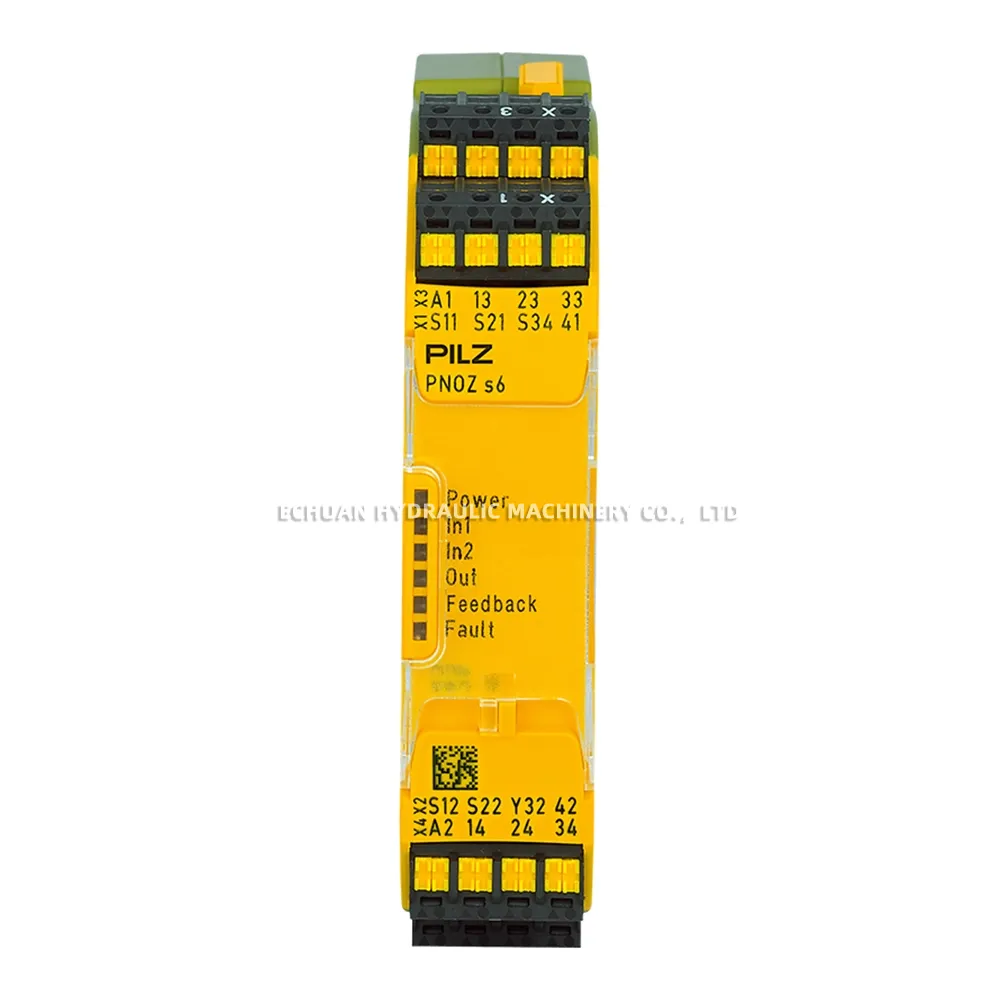

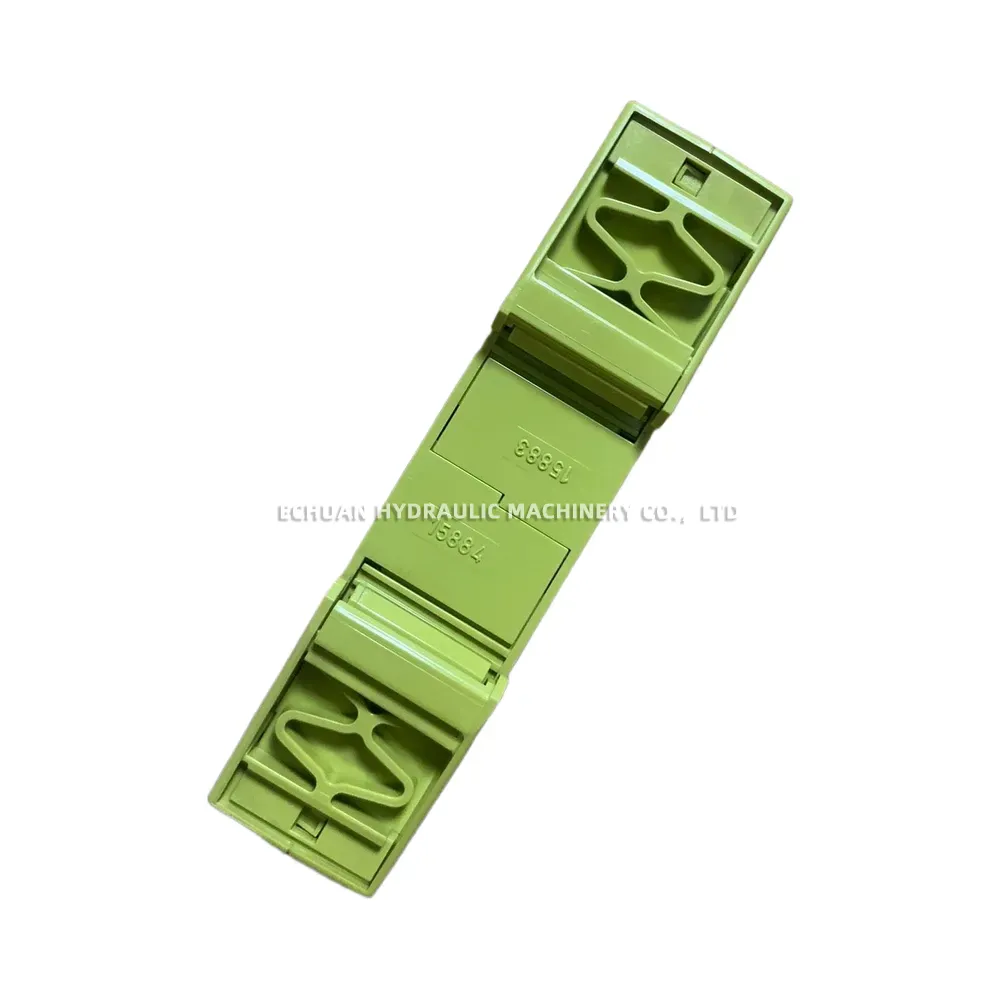

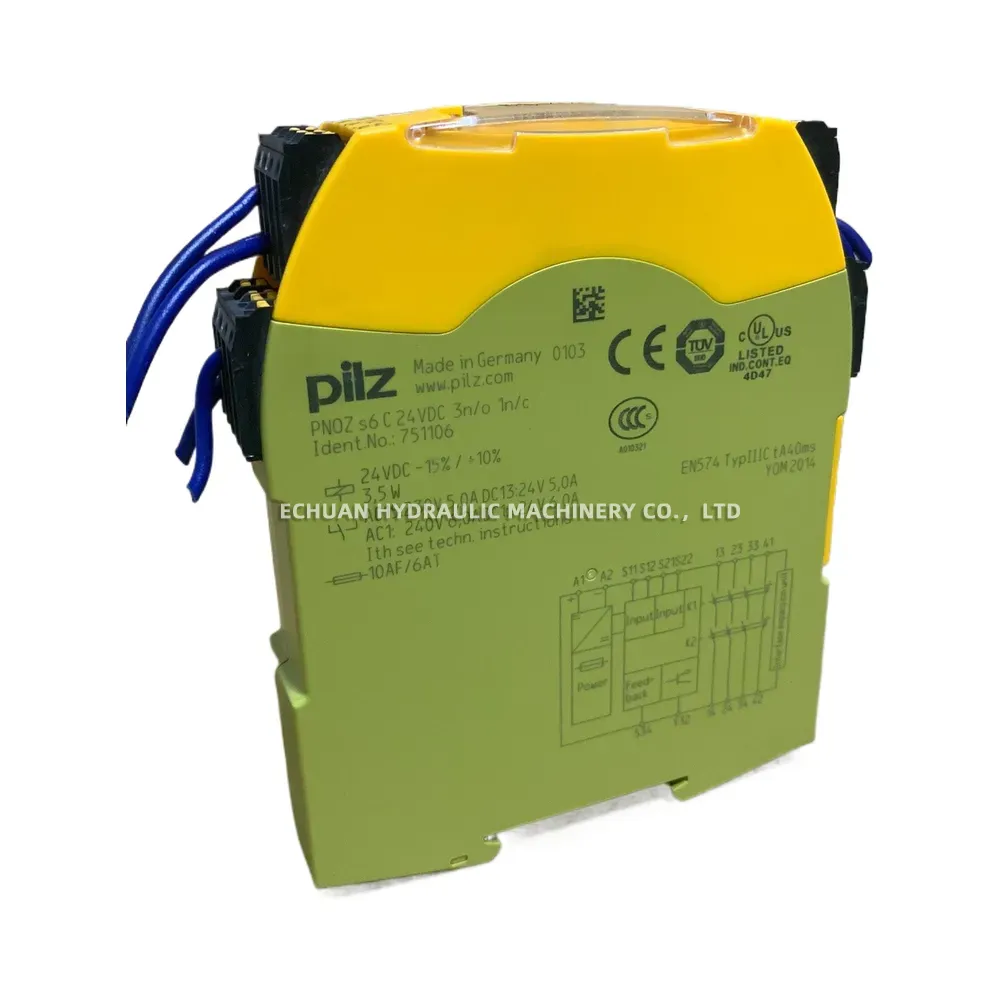

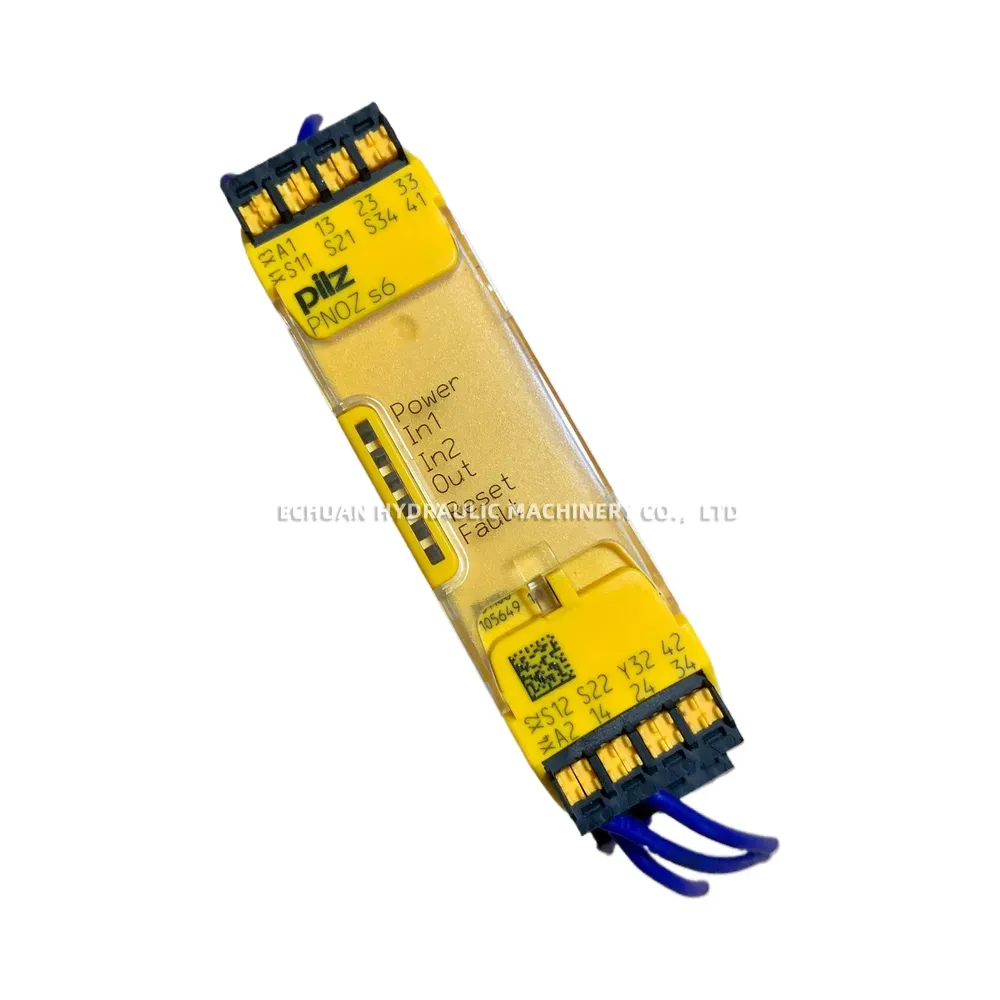

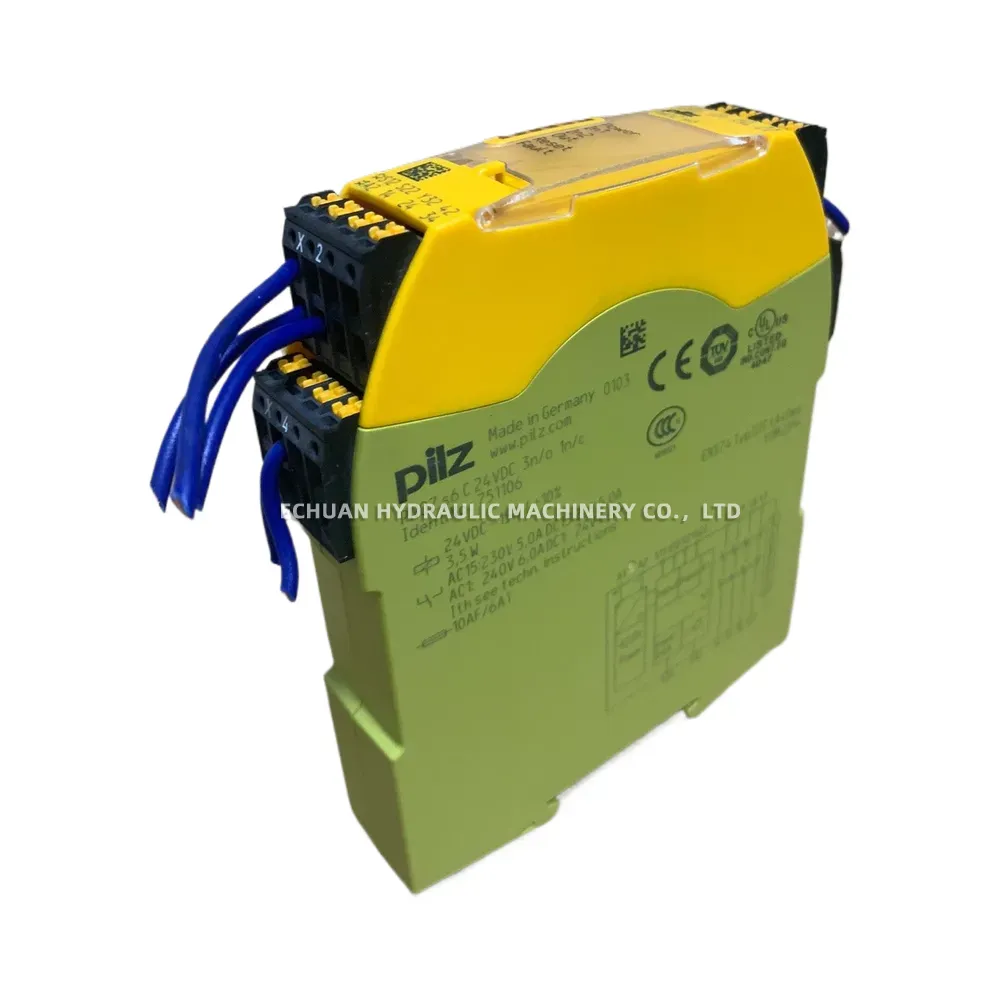

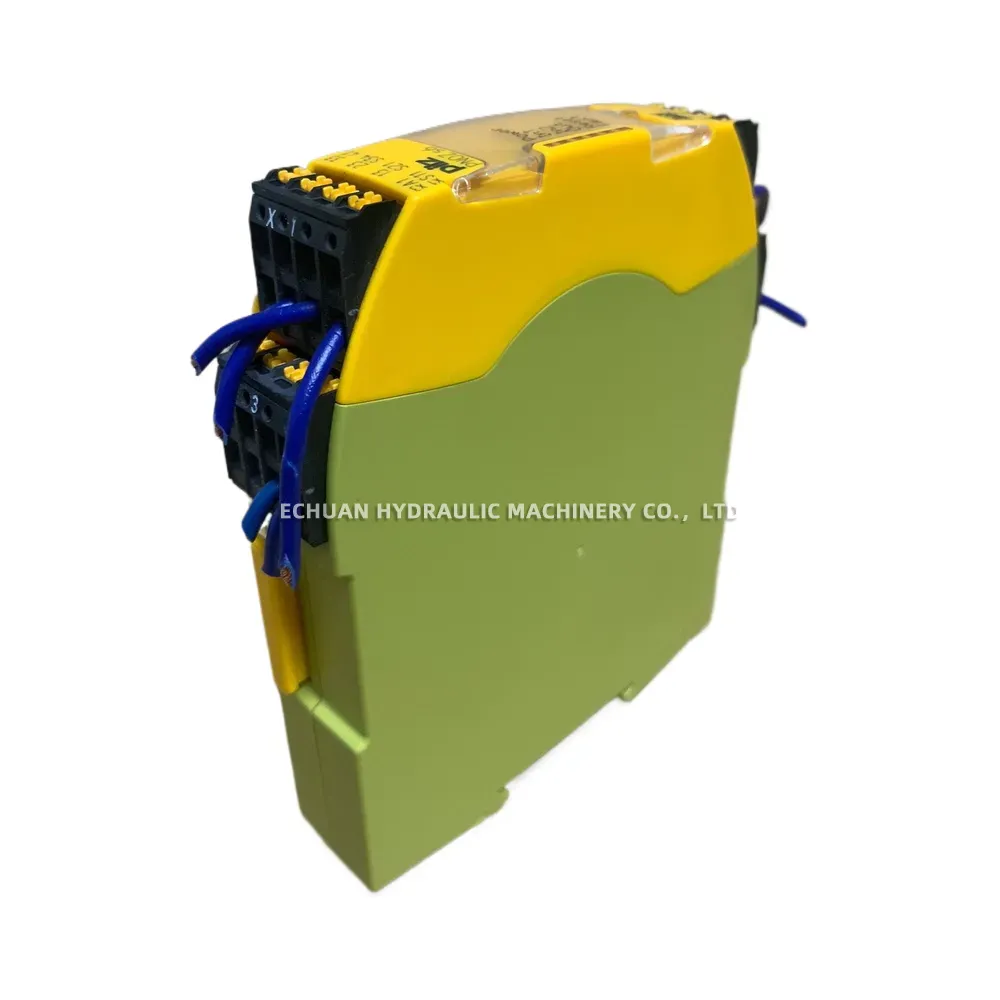

Pilz 751106
The Pilz 751106, part of the PNOZsigma product family and identified as model PNOZ s6.1, is a compact safety relay designed for time monitoring applications. This unit provides a reliable off-delay (delay-on-de-energisation) function, making it ideal for safety circuits such as emergency stop and safety gate monitoring where a controlled, delayed shutdown is required. Operating on a 24V DC supply, it features a slim 17.5 mm housing that saves valuable space in the control cabinet. The PNOZ s6.1 is equipped with pluggable screw terminals for fast installation and easy maintenance. It offers three normally open safety contacts and one normally closed auxiliary contact, meeting the highest safety standards up to PL e (Cat. 4) of EN ISO 13849-1 and SIL CL 3 of EN IEC 62061.
Technical Specifications:
- Model: PNOZ s6.1
- Supply Voltage (V DC): 24 V
- Function: Off-delay timer relay
- Safety Contacts (N/O): 3
- Auxiliary Contacts (N/C): 1
- Terminal Type: Pluggable screw terminals
- Time Setting Range: 0.1 s – 300 s
- Safety Level: PL e (Cat. 4) of EN ISO 13849-1, SIL CL 3 of EN IEC 62061
Pilz 751106
Shop the Pilz 751106 PNOZ s6.1, a compact 24VDC safety relay for reliable off-delay time monitoring. This unit features 3 N/O safety contacts and meets PL e / SIL CL 3 standards, ideal for critical safety applications.
| Brand | Pilz |
|---|---|
| Model | 751106 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pilz-751106 |
