Product Description

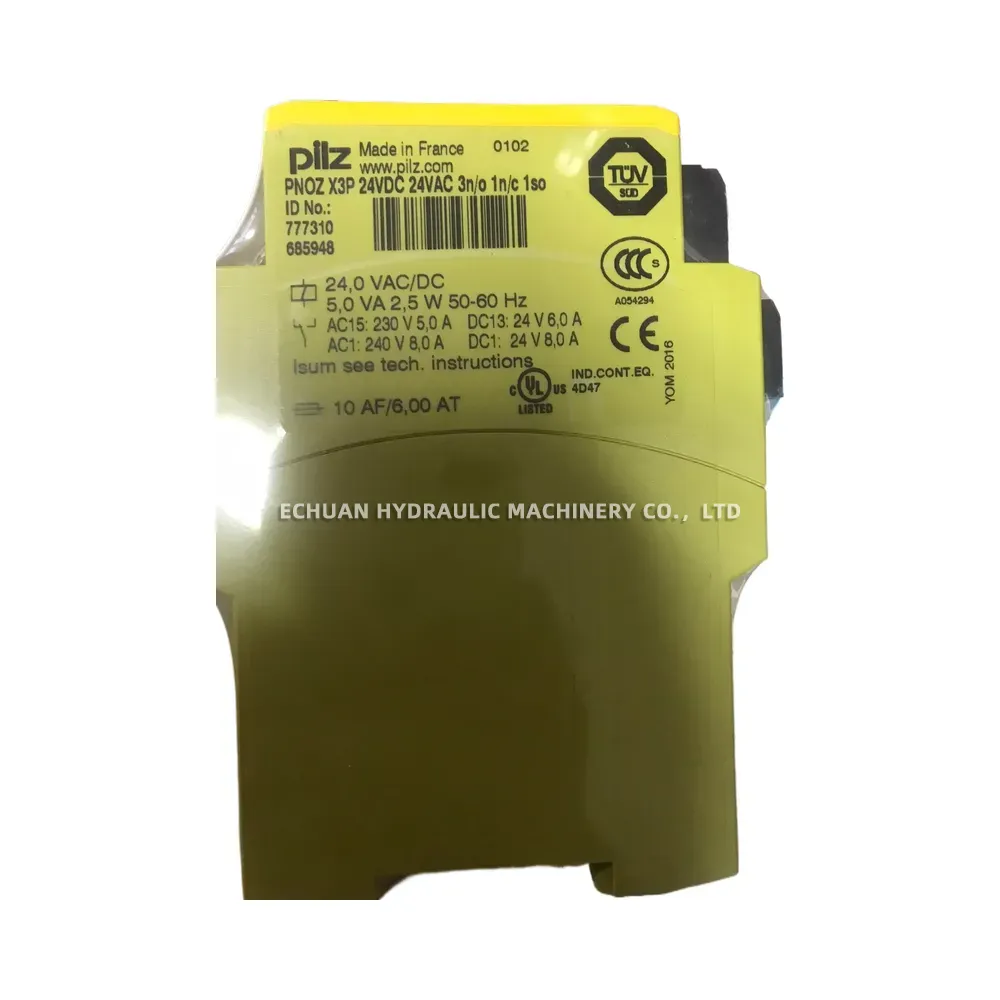

Pilz PNOZ X3P Safety Relay

The Pilz PNOZ X3P is a robust and reliable safety relay designed for monitoring safety functions such as E-STOP pushbuttons, safety gates, and light barriers. It ensures the safe and controlled shutdown of machinery in hazardous situations, protecting both personnel and equipment. With its versatile 24V AC/DC supply voltage and multiple contact configuration, the PNOZ X3P is a trusted component for implementing safety circuits in a wide range of industrial automation applications, conforming to international safety standards.

Technical Specifications:

  • Model: PNOZ X3P

  • Part Number: 777310

  • Supply Voltage: 24V AC/DC

  • Power Consumption: 5.0 VA / 2.5 W

  • Contact Configuration: 3 N/O (Normally Open), 1 N/C (Normally Closed), 1 SO (Semiconductor Output)

  • Contact Ratings: AC15: 230V 5.0A; DC13: 24V 6.0A

  • Certifications: CE, cULus Listed, TÜV, CCC

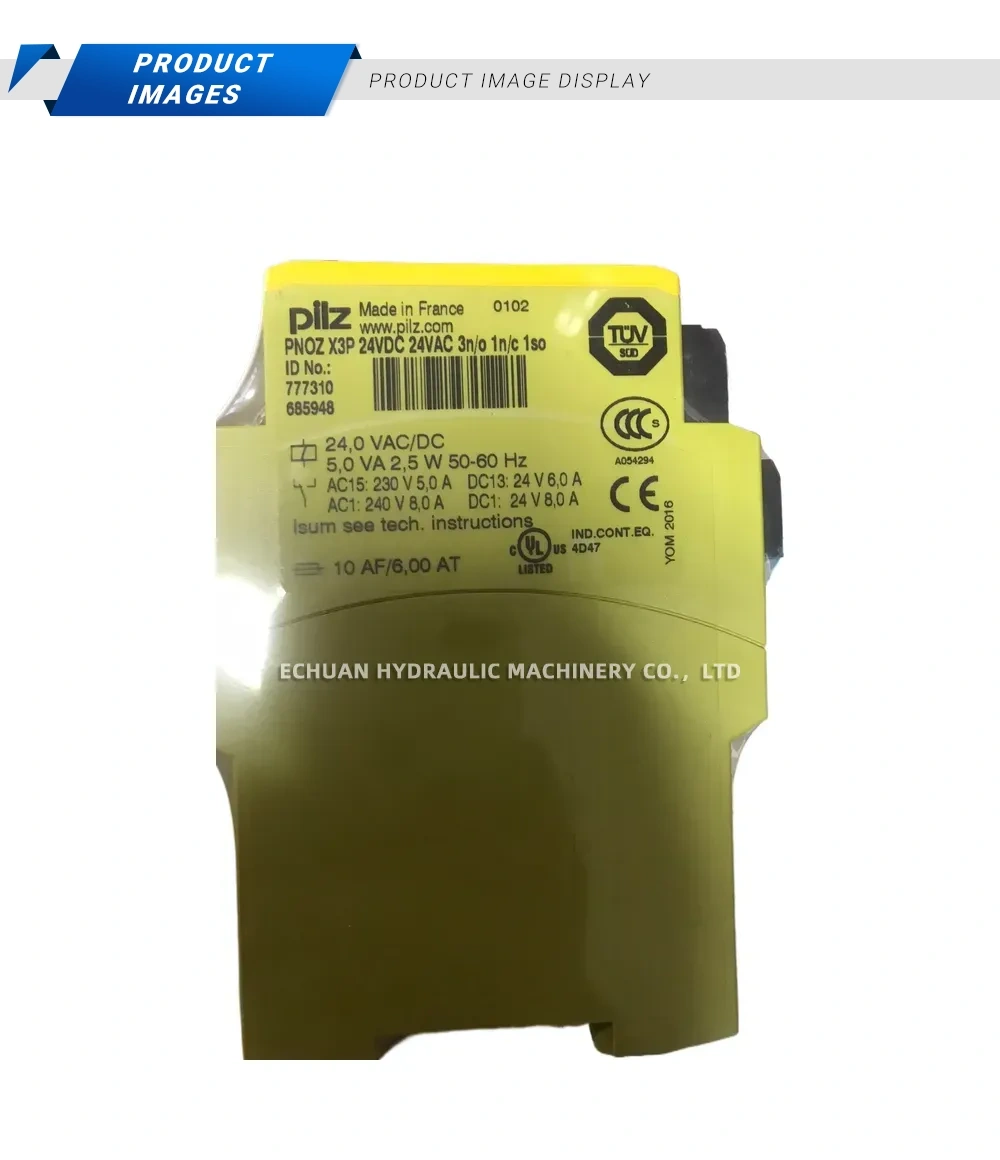

Pilz PNOZ X3P Safety Relay Description

Pilz PNOZ X3P Safety Relay

Shop the Pilz PNOZ X3P Safety Relay, model 777310. This 24V AC/DC relay features 3 N/O, 1 N/C, and 1 SO contacts, making it ideal for E-STOP and safety gate monitoring. Fully certified with UL, TÜV, and CE for guaranteed performance.
