Product Description

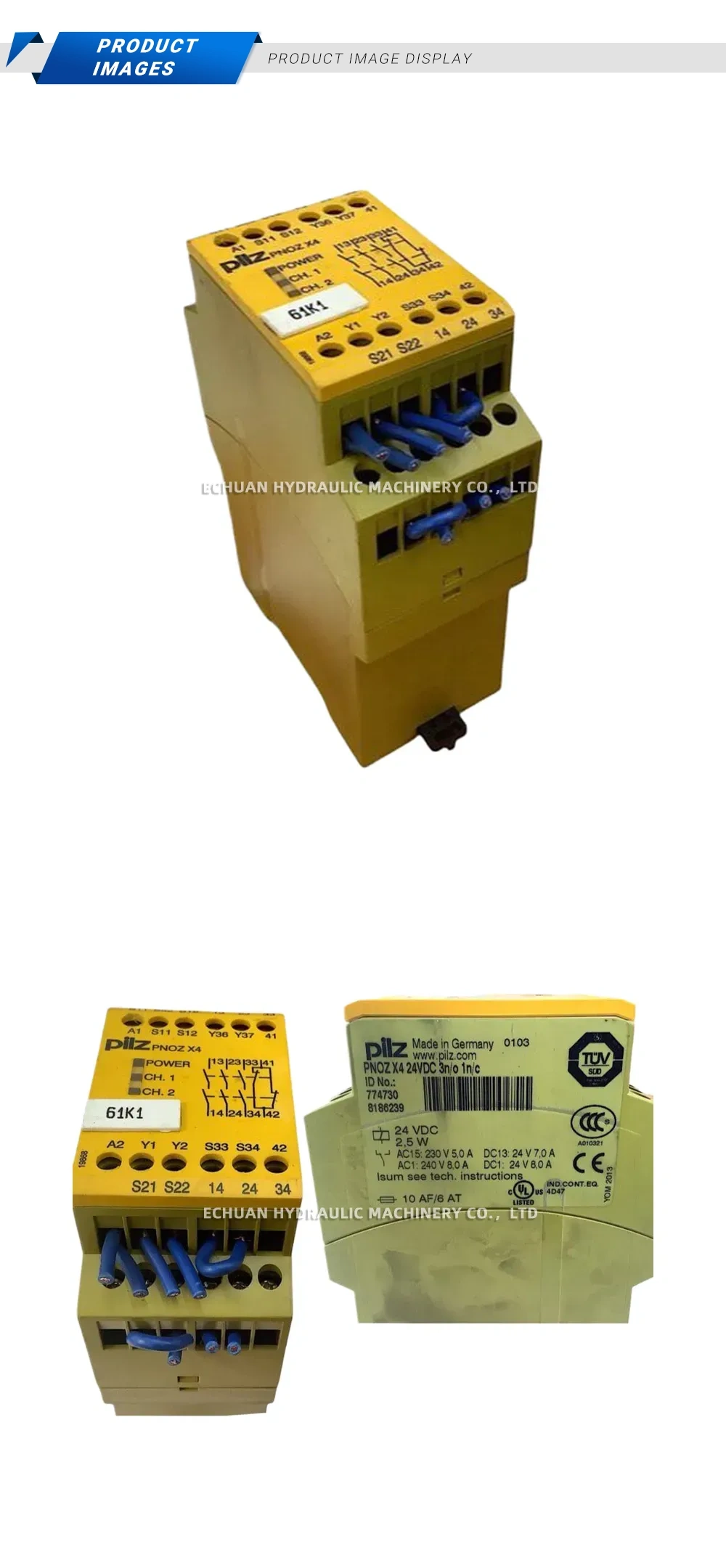

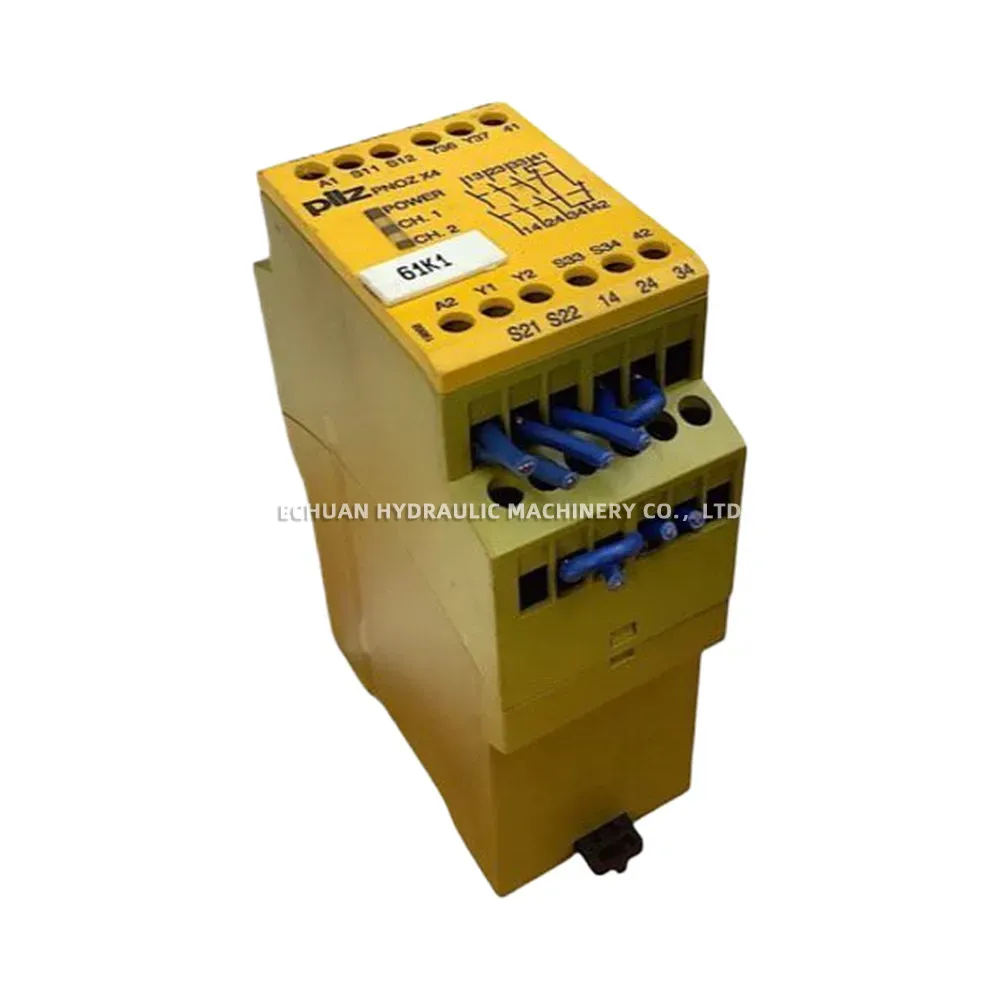

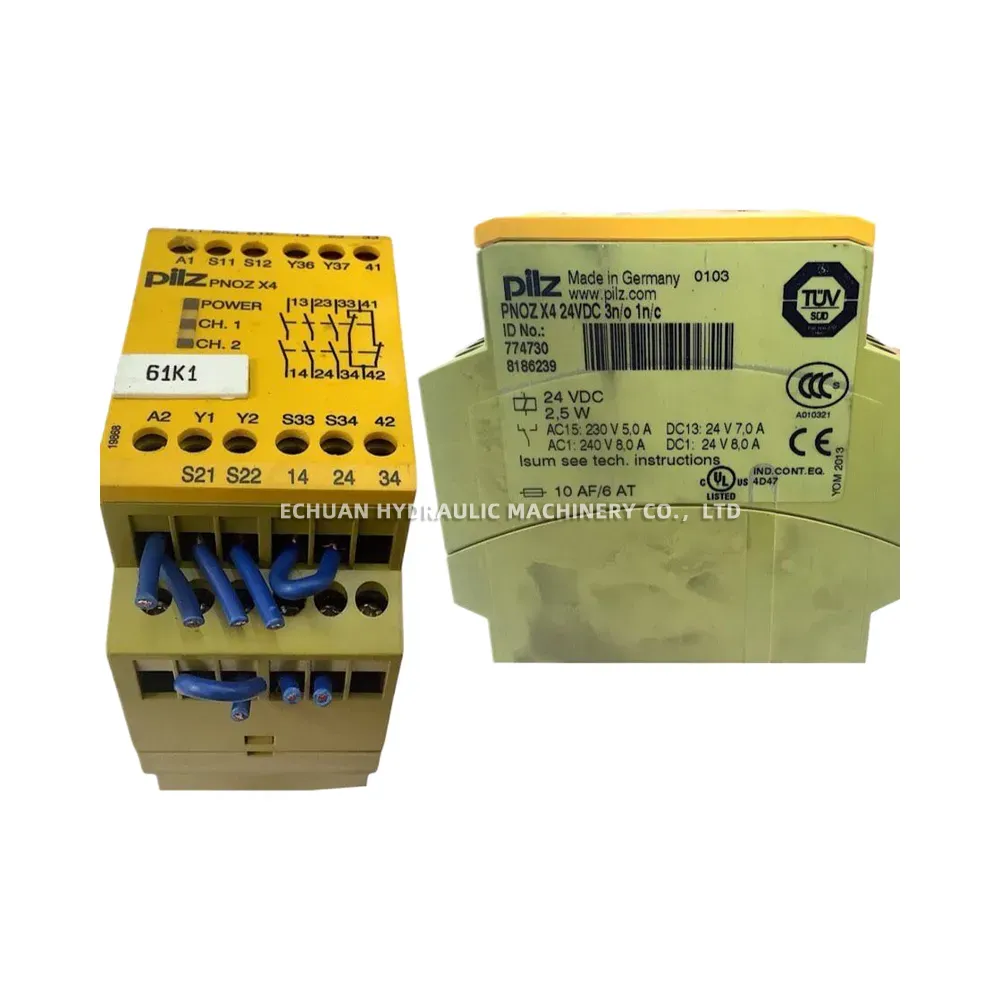

Pilz PNOZ X4 Safety Relay
The Pilz PNOZ X4 is a robust and reliable safety relay designed to monitor and control critical safety functions in industrial machinery. It is commonly used for applications such as E-STOP pushbuttons, safety gates, and light barriers. Engineered in Germany, the PNOZ X4 ensures the safe interruption of circuits, helping to protect both personnel and equipment from potential hazards. Its compact design and proven technology make it a standard choice for implementing safety-related control functions in compliance with international safety standards.
Technical Specifications:
- Model: PNOZ X4
- Part Number: 774730
- Supply Voltage: 24 VDC
- Power Consumption: 2.5 W
- Safety Contacts: 3 Normally Open (N/O), 1 Normally Closed (N/C)
- Contact Ratings: AC15: 230V 5.0A, DC13: 24V 7.0A, AC1: 240V 8.0A, DC1: 24V 8.0A
- Fuse Protection: 10 A (fast-acting) / 6 A (time-lag)
- Certifications: CE, cULus, TÜV, CCC
- Country of Origin: Germany
Pilz PNOZ X4 Safety Relay
Shop the Pilz PNOZ X4 Safety Relay (774730), a 24VDC unit for machine safety applications. Features 3 N/O and 1 N/C contacts for reliable E-STOP and safety gate monitoring. Made in Germany.
